4 Siemens Servos Bar Bending Machine

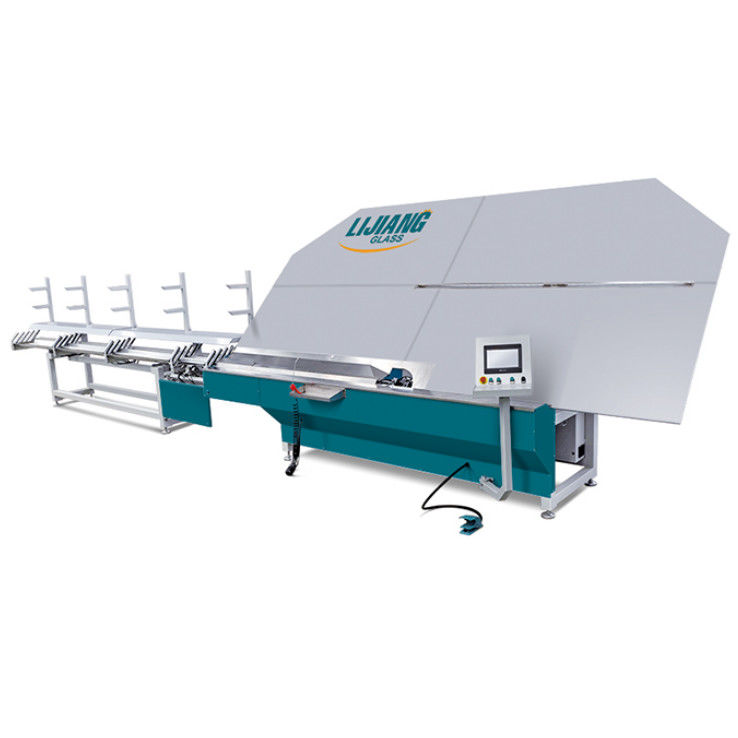

Autimatic spacer bending machine(LJZW2020)

1 Overview.

Automatic spacer bending machine is a special equipment for manufacturing insulating glass aluminum frame instead of insulating glass. The equipment can form one aluminum belt at a time to make various convex polygonal aluminum frames, so as to reinforce and manufacture the aluminum frames. The sealing effect of insulating glass is better.

2. Automatic bending machine function

The automatic bending machine continuously bends the aluminum frame in the hollow glass. The bending of the aluminum frame can improve the sealing performance of the insulating glass, and the appearance is better.

3.Equipment details

• Adopt Siemens PLC control system
• There are 4 Siemens servos
• Adopt 4 sets of shelves, which can store more gaskets of different sizes. Replace different racks with Siemens servers.
• Automatically cut into aluminum gasket
• Continuously curved bulkhead
• Automatically avoid the connection angle when bending and cutting
• The machine grabbed the shim from the top instead of the shim from the bottom, which solved the old commutation problem.
• Using industrial computer technology, it can realize the on-site drawing of workers on the industrial computer and directly bend the drawn graphics.
• Special manipulator device is used to bend the large spacer.

4.Technical data

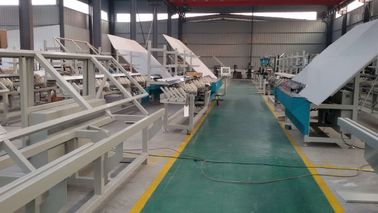

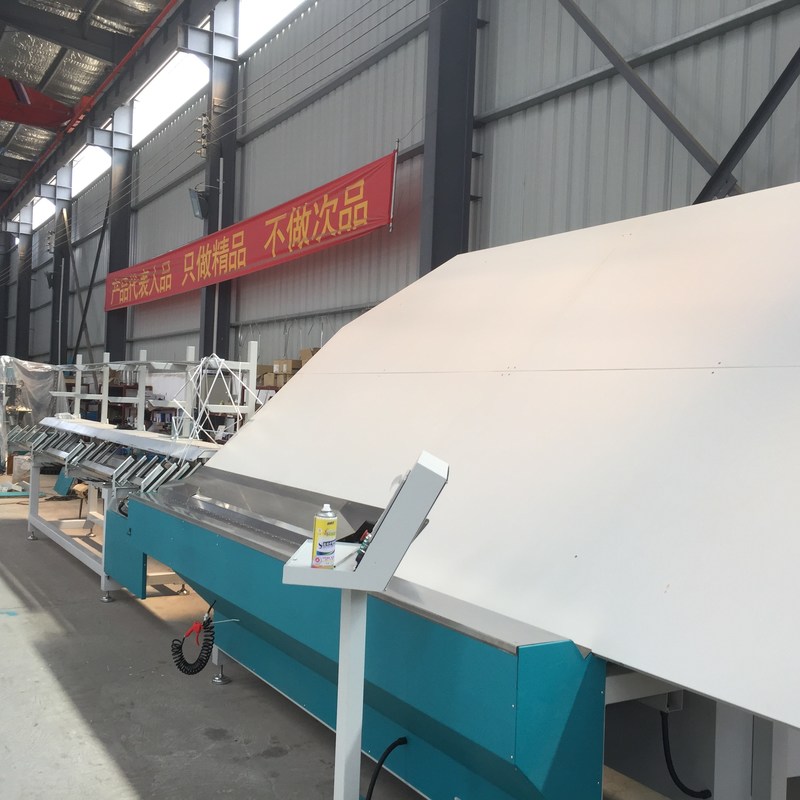

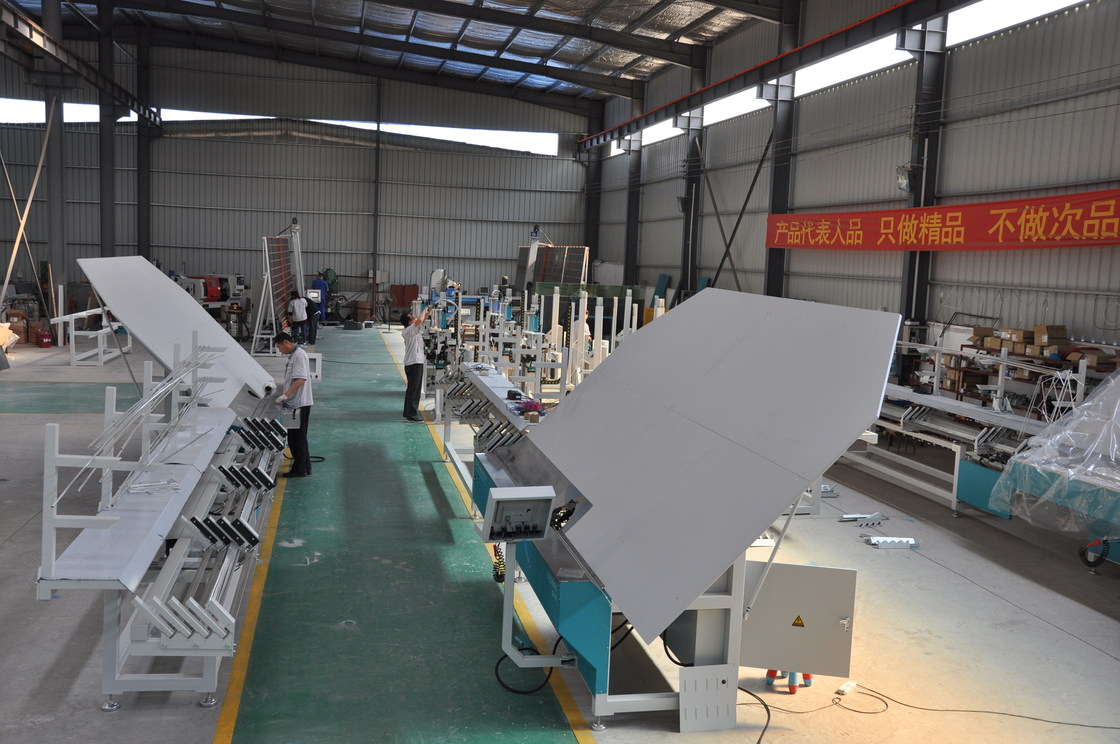

Details images

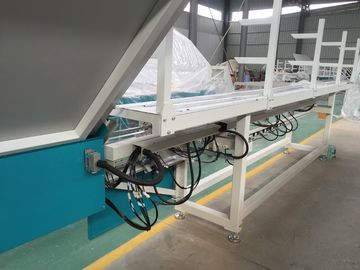

Heavy-duty connectors provide convenience and safety for installation and commissioning

SB input function, directly read excel format files, etc. (optional)

Connect to ERP system (optional)

It can bend aluminum gasket, Technoform, Alupro, Thermix, temperature spacer (Swisspacer) and stainless steel (optional), etc.

We have a special soft system that can avoid the distance of 120mm to reduce waste. For example, if the length of the gusset is 60mm, the gusset will appear when the program calculates the right angle. When you start to bend the rectangular frame, you first need to transport 120mm, then cut 120mm, and then step on the pedal to bend the frame, which will waste 120mm.
