The horizontal blanking section is inclined vertical structure. The transfer roller is a wear-resistant, acid-proof and alkali polyurethane roll. It adopts stepless frequency conversion speed regulation. Used for glass storage before flat pressing and gluing.

Site conditions:

Power supply voltage:AC380V±10V 3P+N+PE 50Hz

Environment temperature:15～35℃

Working air pressure:0.5～0.8MPa

Industrial tap water: PH = 7 ± 1 Conductivity ≤ 40μs / cm

Site requirements: clean and dust-free

6As shown in figure 1, right place every sections of the IG line, adjust paragraphs leveling base, make the transfer roller, return roller bearing surface contour.. Properly setting of fan and water tank (water treatment device user chooses to be prepared), and by water, wind road system diagram to connect the air duct, water pipe. Display the electric control cabinet correctly and connect all the electronic control circuit according to the diagram of electrical system.

Application

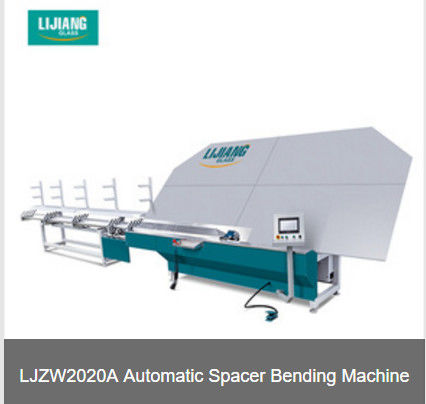

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.

Equipment details

• Adopt Siemens PLC control system
• There are 4 Siemens servo
• Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks.
• Automatically cut and feed aluminum spacers
• Bend shaped spacer frames continuously
• Automatically avoid the connecting corner while bending and cutting
• The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.
• Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics.
• The special machine hand device is used to bend big spacer frame

• USB input function, read the excel format file directly etc (Optional)

• Precise bending effect, corner error less than 0.1mm.

• Spacer printing code function (Optional)
• Connect to ERP system (Optional)
• Heavy duty connectors is convenience and safety for installation and debugging

• Spare parts of all machine have ID codes.
• Automatic drill gas filling hole (Optional)
• Printing paper label sticker function (Optional),could remove it easily.
• Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and stainless steel ( Optional) and so on.
• Electrical parameters

• NAME	BRAND	NAME	BRAND
  PLC	GERMAN SIEMENS	Triplet	Taiwan AIRTAC
  Low voltage electrical apparatus	GERMAN SIEMENS	Cylinder	Taiwan AIRTAC
  Servo motor	GERMAN SIEMENS	Solenoid valve	Taiwan AIRTAC
  Servo driver	GERMAN SIEMENS	Switch power	Taiwan TEND
  Relay	JAPAN OMRON	TOUCH SCREEN	Taiwan WEINVIEW
  Sensor	KOREA AUTONICS	GUIDE	Taiwan TBI
