Product Details:
|
| Machine Name: | Spacer Bending Machine | Machine Brand: | LIJIANG GLASS |
|---|---|---|---|
| Application: | Bending Spacer Frame For Making Double Glazing Glass | Spacers: | Aluminum / SS / Warm Edge Spacer |
| Spacer Size: | 5.5mm - 27mm | Spacer Racks: | 4 Or 12 Sets |
| Spares: | Siemens | Cutting Spacer: | Automatic Cutting |
| High Light: | glass bending machine,industrial bending machine |
||

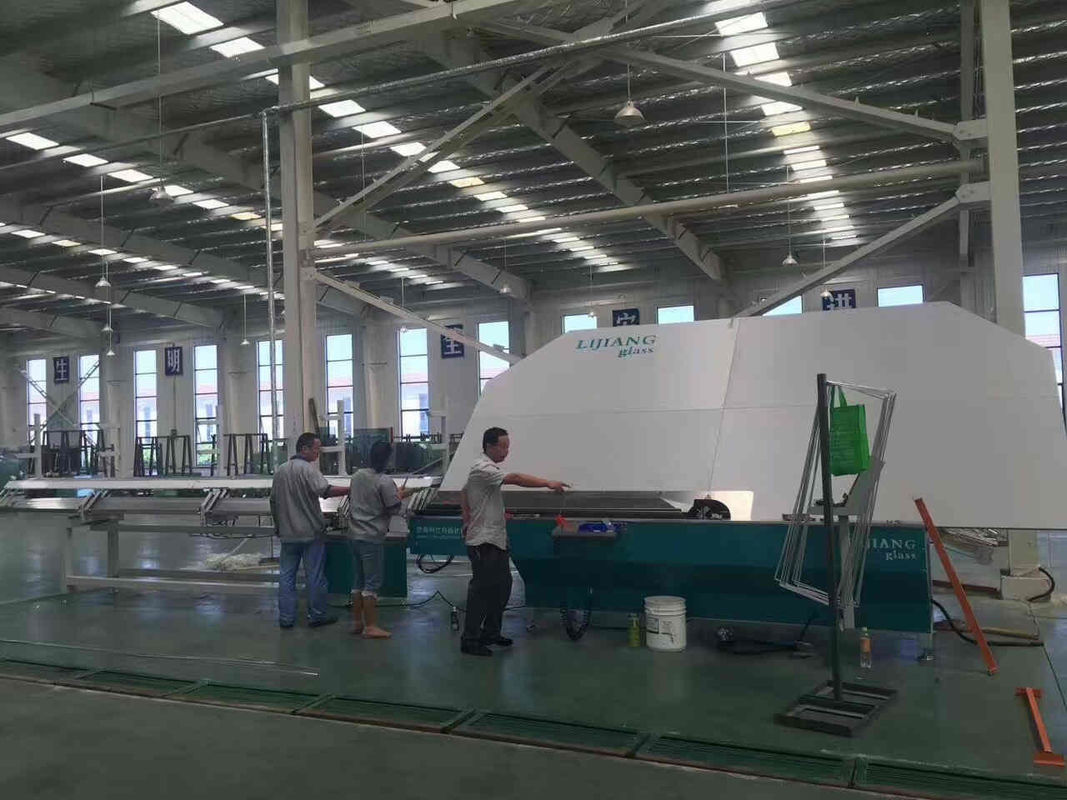

Circle Aluminum Spacer Bending Machine For Making Double Glazing Glass Or Windows
Main features of spacer bending machine :
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |

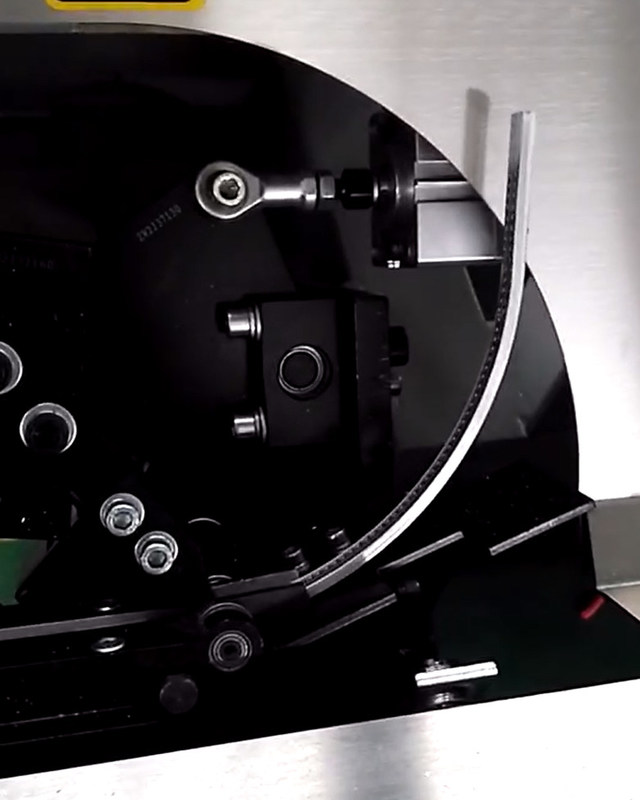

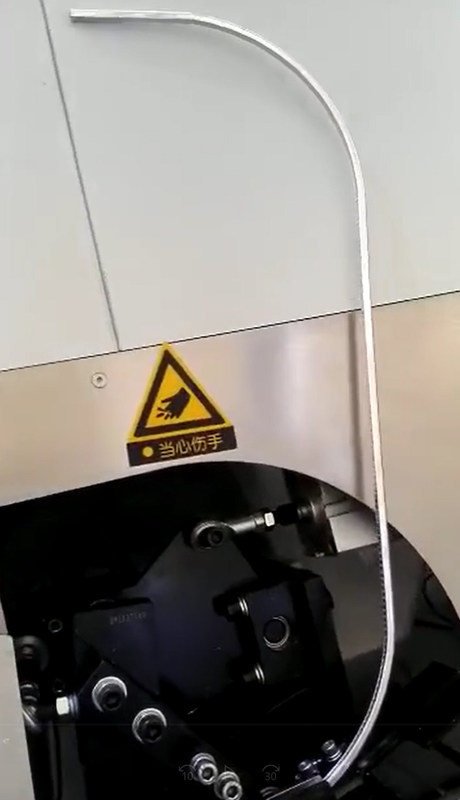

Notes:When bending the arc-shaped aluminum frame, the cutter head needs to be replaced for each size, and the cutter head needs to be customized.
8 Shapes
1. Circle
2. Rectangle / Square
3. Triangle
4. Oval
5. Pentagon
6. Parallelogram
7. Semicircle
8. Octagon / Arc-shape
An aluminum spacer bending machine, including a frame, a conveyor belt driven by a motor, the conveyor belt is installed on the frame, wherein, the conveyor belt also includes a number of positioning units, the positioning units are arranged along the direction of aluminum bar transmission, the positioning unit includes a rotating rod, a supporting rod and a guide wheel, the rotating rod is hinged on the frame, and the supporting rod is fixed on the rotating rod, The guide wheel is rotationally connected to the supporting rod, and the distance between the guide wheels is equal to the width of the aluminum strip. The traditional guide plate is replaced by the guide wheel, and the sliding friction is converted into the rolling friction, so the friction is reduced. Therefore, when the distance between the guide wheels is equal to the width of the aluminum strip, the aluminum strip can still pass smoothly. Because the distance is reduced, the aluminum strip is not easy to deviate, which ensures the bending effect of the aluminum strip, The scrap rate of products is reduced.
