Product Details:
|

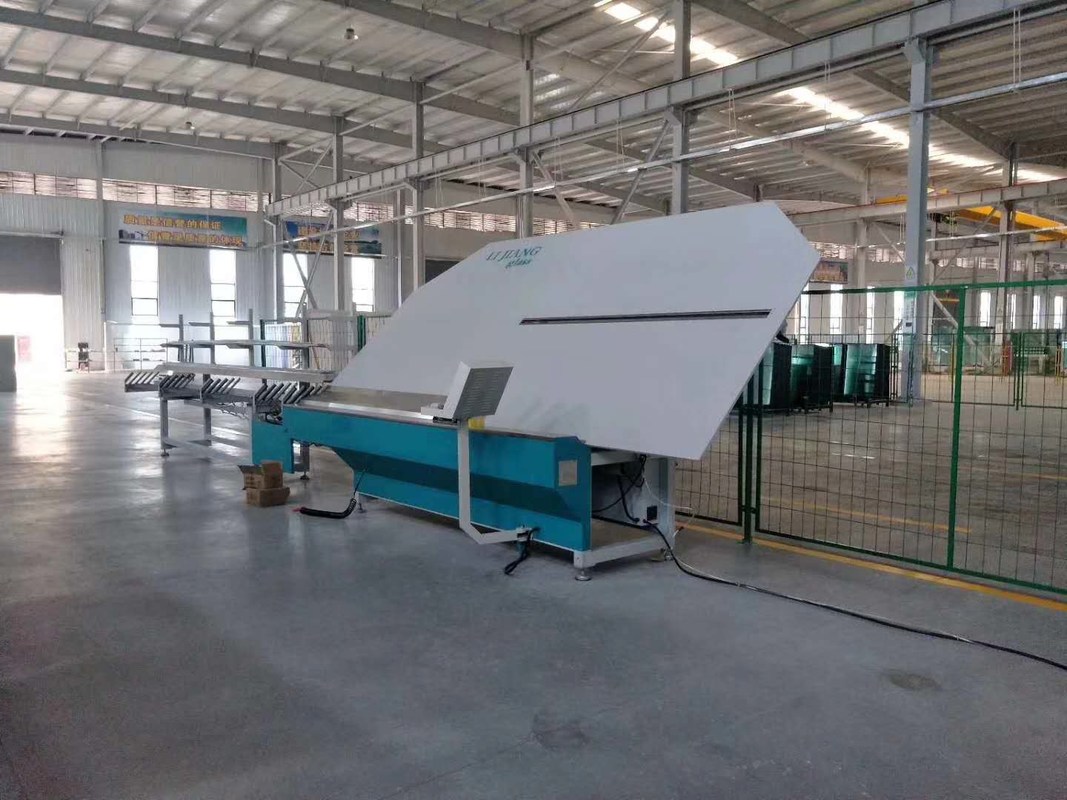

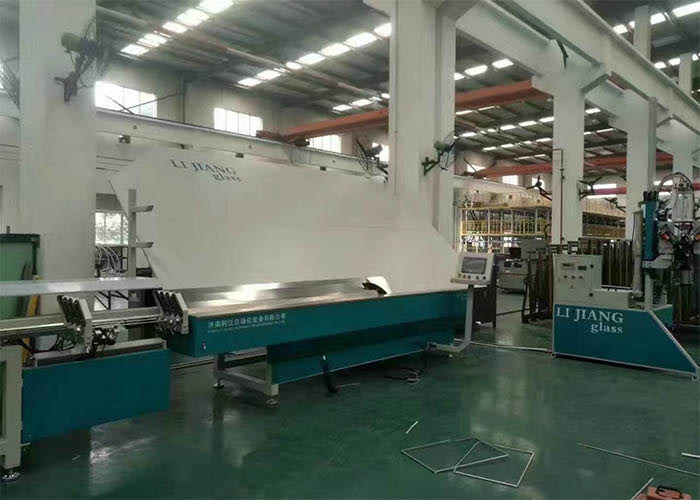

| Production Name: | Automatic Stainless Steel Bars Bending Machine | Model: | LJZW2020 |
|---|---|---|---|
| Rigid Spacer: | Stainless Steel Bars , Ss | Spacer Width: | 6a - 27a |
| Spacer Racks: | 4 Racks , 12 Racks (optional) | PLC: | Germany Siemens |
| Cutting Spacer: | Automatically | USB Function: | Equipped |
| Highlight: | industrial bending machine,spacer bar bending machine |
||
Double glass machines or glass windows and doors machines :
Automatic spacer bending machine : alumimum spacer bending machine / warm-edge spacer bending machine / stainless steel bending machine / manual spacer cutting machine
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
• Connect to ERP system (Optional)
• USB input function, read the excel format file directly
(2 or 12 groups of storages can be optional)
• Automatically drill holes for filling argon gas (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)
• Siemens 1200 PLC control system with fast working speed
• 4 groups of storages
• Automatically cut and feed aluminum spacers
• Automatically avoid the pins while bending and cutting
• Bend spacer frames continuously
• Aluminum spacers are available in sizes of 6A-27A
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer
LIJIANHG‘s R&D engineers are with 10 to 20 years of working experience, R&D engineers of LIJIANG have very strict requirements on insulating glass equipment and pursue to make glass processing more simple and intelligent.
a.Warranty: One year( The wearing parts and grinding tools are out of this range) guarantee the perfect working condition by normally replacing for wearing parts, electric parts and some other parts under the proper operation.
b.LIJIANG has its own after service system. And it can be divided into 3 situations.
① After the machine arriving customer’s factory,LIJIANG can send its engineer to the customers’ factory for machine installation, adjustment and personnel training for free.But the round-trip air ticket, and accommodation will be born by the customer.
② During the warranty period (one year), if there is problems with the equipment and the customer requests the LIJIANG engineer to repair in the factory. The customer is responsible for the round-trip air ticket , no maintenance fee and no spare parts cost (except wearing parts).
③ Outside the warranty (one year), if the equipment appears problems, the customer request LIJIANG to send engineers to the factory for maintenance.The customer should be responsible for round-trip air tickets and accommodation.Also customers need to pay for the LIJIANG daily $150 as service and maintance costs, and all parts must be completed paid before the delivery.
