Product Details:
|
Max Bending Size: | 2500*2500mm | Min Bending Size: | 250*200mm |
---|---|---|---|
Aluminum Spacer Width: | 6A-27A | Bending Size Error: | ±0.5mm |
Angle Error: | ±1 | Air Suplier: | 0.65mpa |
Total Power: | 2.5kw | Dimension: | 1000*2200*2600mm |
NAME: | SPACER BENDING MACHINE | ||
Highlight: | industrial bending machine,spacer bar bending machine |
BAR BENDING MACHINE SPACER BENDING MACHINE PROFILE BENDING MACHINE

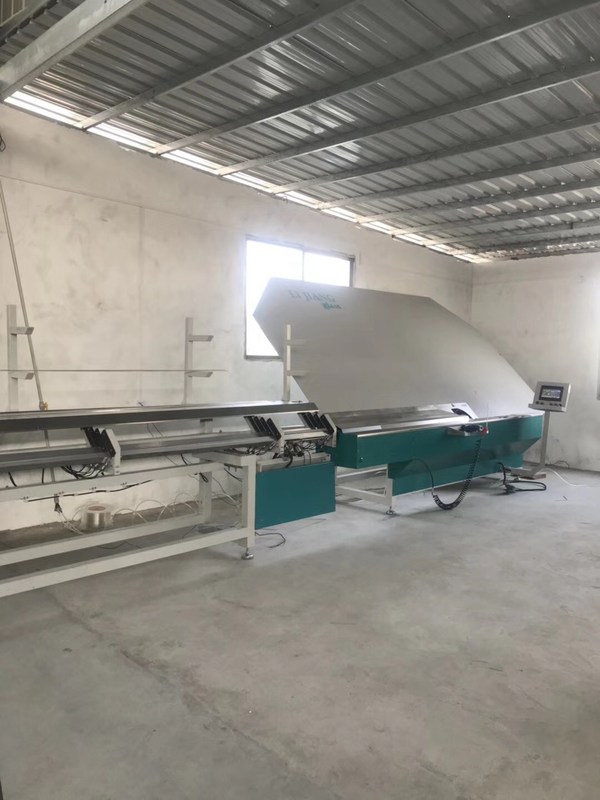

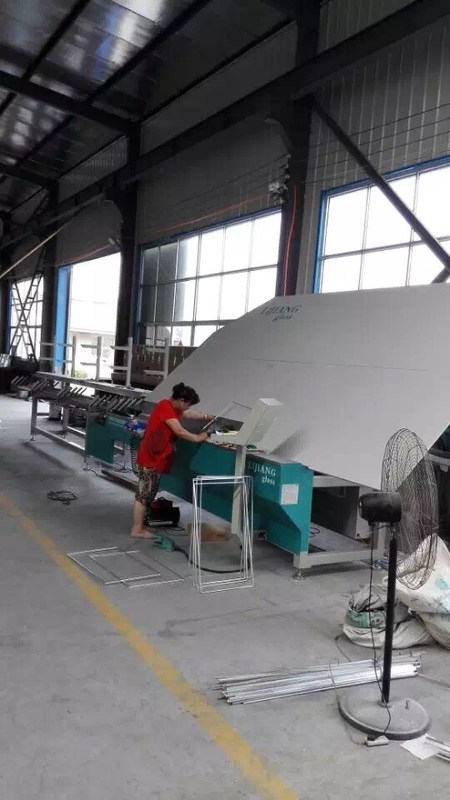

Aluminum Spacer bending machine
l 1*1m spacer frame was bend around 17s.
The error of spacer frame angle is within 0.1mm.
l Can bend aluminum spacer /technoform /Alupro /thermix/
l Spacer automatically connect and cut.
l Machine automatically stop when the spacer use up.
l Support continuous bending , automatically avoid spacer connection while bending and cutting
l Remote control function
l USB input function ,it can read the excel data directly
l Spare parts of all machine have ID code ,convenient for after-sale service
l Heavy duty connectors ,convenience and safety for installation and debugging
l Magnetic valve use Taiwan Airtac
l German Siemens plc control systerm
l Japan Fuji servo control system
l 12 storage spacer units (option)
l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)
(Stainless steel and warm edge spacer can not exist at one time )
l Drill hole for gas filling(option)
l Spacer inkjet printing ,various color is available for company logo or production date(option)
l Laber printing (option)
l Scanner scan two-dimension code ,bar code (option)
l Separate Pressing Wheel for arc frame, more accurate than the bending tool
Especially for Hexagon and Octagon frame (optional )
l ERP (optional)
Remark : Bending tool
*For rectangle frame there have three size (6A/9A/12A)was complimentary
Other size need pay extra 42$/per size
* For Circle ,Hexagon and Octagon frame , 300$/per size
Main technical parameter
Max.bending size |
2000*2000mm |
Min.bending size |
250*200mm |
Aluminum spacer width |
6-27A |
Arc Radius |
60°-150° |
6A-16A |
|
Dimensional error: |
≤±0.5mm |
Angle error |
≤±1º |
1m*1m aluminum spacer |
17s |
Air supply |
≥0.65MPa |
Total power |
AC220/380V 50Hz 2.5KW |
Dimension |
10500mm*2200mm*2600mm |
Spacer Bending machine main components
NAME |
BRAND |
PLC |
GERMAN SIEMENS |
Low voltage electrical apparatus |
GERMAN SIEMENS |
Servo motor |
GERMAN SIEMENS |
Servo driver |
GERMAN SIEMENS |
Relay |
JAPAN OMRON |
Triplet |
Taiwan AIRTAC |
Cylinder |
Taiwan AIRTAC |
TOUCH SCREEN |
Taiwan WEINVIEW |
Switch power |
Taiwan TEND |
GUIDE |
Taiwan TBI |
Solenoid valve |
Taiwan AIRTAC |
Sensor |
KOREA AUTONICS |
Advantages of Lijiang Products
1, we are producing all DGU mach
ines : Vertical Insulated Glass Produce Line for double glass production line, Auto Sealing Robot for double glass production line, Sealant Spreading Machine for double glass production line, Low-E Glass Washing &Drying Machine for double glass production line, Smart Edge Deleting Machine for double glass production line, Automatic Spacer Bending Machine for double glass production line, Automatic Desiccant Filling Machine for double glass production line, Butyl Extruder Machine for double glass production line, Glass Edge grinding Machine for double glass production line, Spacer Cutting Machine for double glass production line, Sealing gun Freezer for double glass production , Rotated Sealant Spreading Table double glass sealing, Argon Gas Filling Machine double glass , Semi-auto Aluminum Frame, Spacer Transfer Machine for double glass production line, Molecular Sieve Filling Machine double glass production line, Glass Lifting Table double glass production line, Glass Loading /unloading Device for double glass production line, Water Treatment System for double glass production line (Economy), Water Treatment System double glass production line (Advanced), Auto Seaming Machine
2, we have our own technician team and we got patent for the spacer bending machine and butyl extruder machine and desiccant filling machine and so on.
For the Double Glazing Production line we have latest technology about pressing part and argon gas filling part .
For the Automatic sealing robot , the mechanical head is in front of machine, it can achieve the real connection with Double Glazing production line when producing the step glass.
For the Spacer bending machine, our machine can bend aluminum spacer and warm edge spacer ,and stainless steel, warm edge spacer need heating before bend, the corner error is acceptable range, we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service .
for the butyl extruder machine , our best advantage is coating speed can up to 47m/min , it can save materials up to 30% compare with other brand(4-7g/m), we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service. Now we are making new design -Machine can connect with big Bucket glue 200L, it can save refilling the glue time.
For the desiccant fillier machine , the biggest advantage is it can fill the rectangle and arc frame shape in one machine.
For the manual gas filling machine, we can input the argon gas concentration into touch screen and it can display the whole gas filling processing, customer will know exactly how much argon gas filled inside. When it up to the value you input , argon gas filling machine will automatic stop and give us alarming.
National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America, Mexico glass expo .Big Five In Dubai, Egpyt.
Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.
Technician Team:
We have our own technician team ,IG line and automatic sealing robot technician team have 6 experts which all have more than 15 glass machine working experience. Aluminum spacer bending and desiccant filling machine team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years,
Service Team:
We have our own china domestic team and oversea service team .
Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers , two of them from india and others from south America and midle east.
24 hours online service and local engineer available , guarantee customers got timely service and solution .
