Product Details:
|
| Max Bending Size: | 2500*2500mm | Min Bending Size: | 250*200mm |
|---|---|---|---|
| Aluminum Spacer Width: | 6A-27A | Bending Size Error: | ±0.5mm |
| Angle Error: | ±1 | Air Suplier: | 0.65mpa |
| Total Power: | 2.5kw | Dimension: | 1000*2200*2600mm |
| NAME: | SPACER BENDING MACHINE | ||
| Highlight: | industrial bending machine,spacer bar bending machine |
||
stainless steel spacer bending machine SPACER BENDING MACHINE profile bending machine

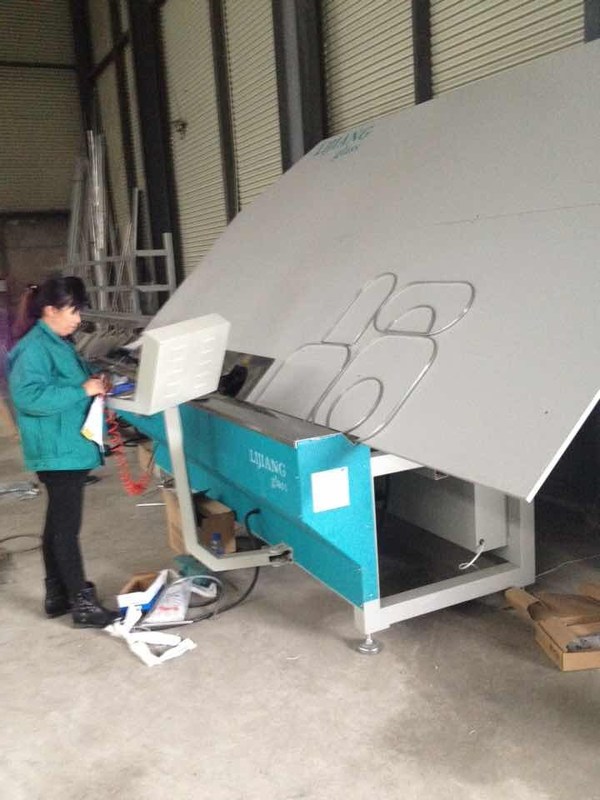

Aluminum Spacer bending machine
l 1*1m spacer frame was bend around 17s.
The error of spacer frame angle is within 0.1mm.
l Can bend aluminum spacer /technoform /Alupro /thermix/
l Spacer automatically connect and cut.
l Machine automatically stop when the spacer use up.
l Support continuous bending , automatically avoid spacer connection while bending and cutting
l Automatically connect the spacer -connector
l Remote control function
l USB input function ,it can read the excel data directly
l Spare parts of all machine have ID code ,convenient for after-sale service
l Heavy duty connectors ,convenience and safety for installation and debugging
l Magnetic valve use Taiwan Airtac
l German Siemens plc control systerm
l Japan Fuji servo control system
l 12 storage spacer units (option)
l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)
(Stainless steel and warm edge spacer can not exist at one time )
l Drill hole for gas filling(option)
l Spacer inkjet printing ,various color is available for company logo or production date(option)
l Laber printing (option)
l Scanner scan two-dimension code ,bar code (option)
l Separate Pressing Wheel for arc frame, more accurate than the bending tool
Especially for Hexagon and Octagon frame (optional )
l ERP (optional)
Remark : Bending tool
*For rectangle frame there have three size (6A/9A/12A)was complimentary
Other size need pay extra 42$/per size
* For Circle ,Hexagon and Octagon frame , 300$/per size
Main technical parameter
|
Max.bending size |
2000*2000mm |
|
Min.bending size |
250*200mm |
|
Aluminum spacer width |
6-27A |
|
Arc Radius |
60°-150° |
|
6A-16A |
|
|
Dimensional error: |
≤±0.5mm |
|
Angle error |
≤±1º |
|
1m*1m aluminum spacer |
17s |
|
Air supply |
≥0.65MPa |
|
Total power |
AC220/380V 50Hz 2.5KW |
|
Dimension |
10500mm*2200mm*2600mm |
Spacer Bending machine main components
|
NAME |
BRAND |
|
PLC |
GERMAN SIEMENS |
|
Low voltage electrical apparatus |
GERMAN SIEMENS |
|
Servo motor |
GERMAN SIEMENS |
|
Servo driver |
GERMAN SIEMENS |
|
Relay |
JAPAN OMRON |
|
Triplet |
Taiwan AIRTAC |
|
Cylinder |
Taiwan AIRTAC |
|
TOUCH SCREEN |
Taiwan WEINVIEW |
|
Switch power |
Taiwan TEND |
|
GUIDE |
Taiwan TBI |
|
Solenoid valve |
Taiwan AIRTAC |
|
Sensor |
KOREA AUTONICS |
