Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending

Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending
Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending

Large Image :  Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJZW2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 20sets/month

Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending

Description
Name: Automatic Spacer Bending Machine Max.bending Size: 2000mm*2000mm (2500mm*2500mm)
Min.bending Size: 250mm*200mm Aluminum Spacer Width: 5.5-27mm
Dimensional Error: ±0.5mm Angle Error: ±1º
Processing Speed: ≤26s Air Supply: ≥0.65MPa
Total Power: AC220/380V 50Hz 2.5KW Dimension: 10500mm*2200mm*2600mm
High Light:

industrial bending machine

,

spacer bar bending machine

Automatic spacer bending machine

Products

Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending 0

Product Brief

The automatic gasket bending machine is a special equipment that replaces the hollow glass aluminum frame of the hollow glass manufacturing technology. The equipment can make one aluminum belt at a time to make various convex polygonal aluminum frames, thereby enhancing the strength of the aluminum frame and making the insulating glass better sealed.



Equipment advantages

Max.bending size 2000mm*2000mm (2500mm*2500mm)
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm



Equipment details

  • Adopt Siemens PLC control system.
  • There are 4 Siemens servos.
  • 4 sets of shelves are used to store more gaskets of different sizes. Replace different racks with Siemens servers.
  • Automatic cutting and feeding into aluminum gasket.

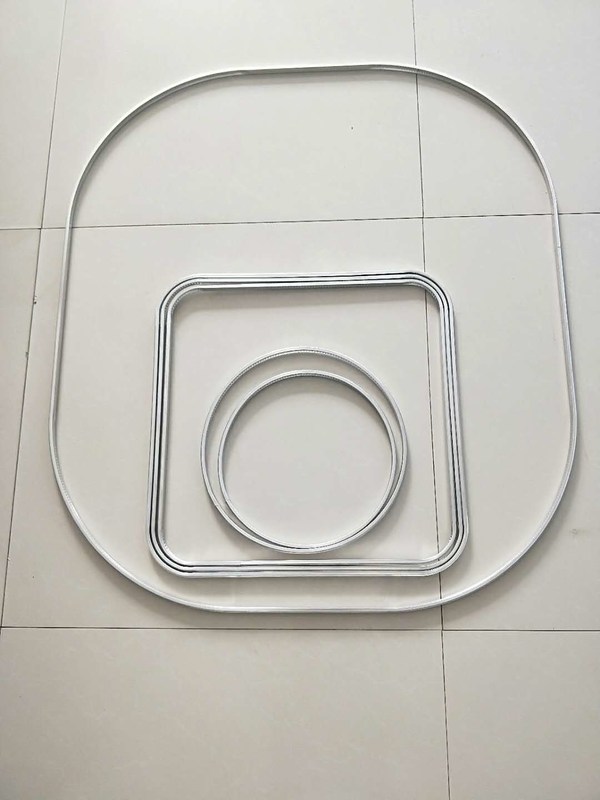

  • Continuously curved spacer frame.
  • Automatically avoid the connection angle when bending and cutting.
  • The machine grabs the shim from the top instead of the shim from the bottom, thus solving the old-style commutation problem.

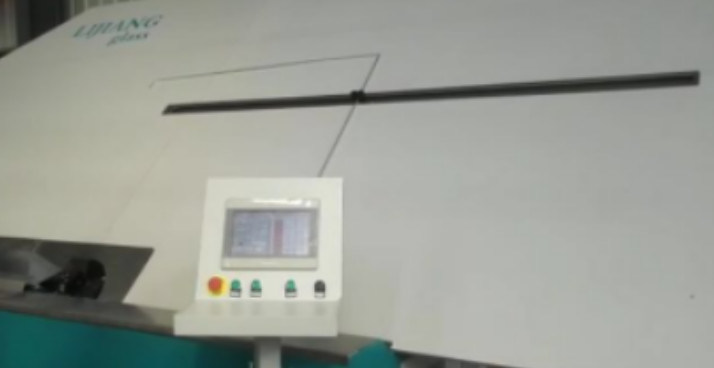

  • Using industrial computer technology, it can realize the on-site drawing of workers on the industrial computer and directly bend the drawn graphics.
  • Special manipulator device is used to bend large spacers.

product details

  • Spare parts of all machine have ID codes.

Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending 1

  • Precise bending effect, corner error less than 0.1mm.

Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending 2

  • Spacer printing code function (Optional)

Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending 3





Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending 4

About us



Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending 5



Jinan Lijiang Automation Equipment Co., Ltd. (Lijiang Glass Factory) is located in the beautiful spring city-Jinan. It is an enterprise integrating R & D, sales and service of glass processing equipment. Due to the proximity to the Beijing-Shanghai high-speed rail, the transportation is very convenient.



The company is committed to drawing on the experience of famous experts, establishing a research and development center, cooperating with well-known domestic and foreign enterprises, introducing advanced technology, etc., and is committed to building high-grade insulating glass machinery and equipment. Now, our friendly partners include Northern Glass, Xinfuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Haojing, Sichuan Lihehua and other well-known enterprises. Since the establishment of the company, our products have been exported to nearly 30 countries and regions in Europe, America, South America, Middle East, Southeast Asia, India and so on. At the same time, the company cooperates with North China Industrial Group, Shandong University and other well-known domestic research institutions to continuously improve the level of technical research. So far, we have independently produced a vertical automatic insulating glass production line with filling gas, a vertical insulating glass sealing robot, an automatic interval bending machine, an automatic dehumidifying filling machine and a new automatic butyl rubber extruder, Its technology and quality have reached the highest level of leadership in China.



With the rapid development of the insulating glass industry, Lijiang looks forward to working with you for a win-win situation and creating a new world together.





Stainless Steel Gasket Spacer Bending Machine For Glass Process Bending 6
