Insulating Glass Spacer Bending Machine Special Equipment For Making Aluminum Frames

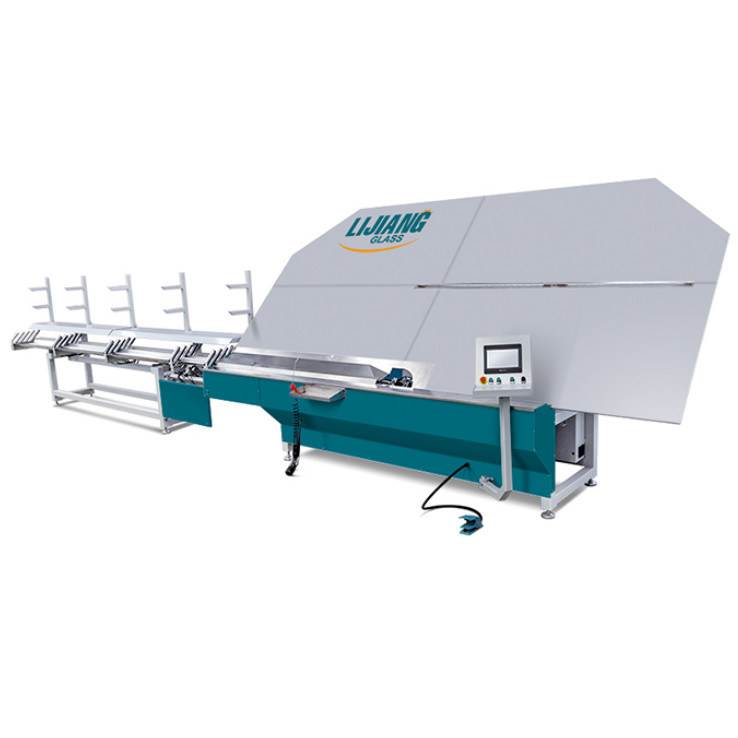

LJZW2020 Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass

² Application

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass

, which replaces the traditional fabrication technology. This equipment can make a variety of convex

polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the

aluminum frame, making the sealing effect of the insulating glass more better.

Electrical parameters

• Adopt Siemens PLC control system
• There are 4 Siemens servo
• Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to
• change different racks.
• Automatically cut and feed aluminum spacers

Bend shaped spacer frames continuously

• Automatically avoid the connecting corner while bending and cutting
• The machine grabs the spacer from the top instead of grabbing the spacer from
• bottom, solving the old-fashioned reversing problem.
• Using industrial computer technology which could realize the on-site drawing by
• workers on the industrial computer and directly bending the drawn graphics.
• The special machine hand device is used to bend big spacer frame

• Automatic drill gas filling hole (Optional)

We have the special soft system which could avoid the 120mm to reduce waste. For example

, if the length of the gusset is 60mm, when the program calculates the right angle, there is a

gusset. When you start to bend the rectangular frame, you need firstly transport 120mm, then

cut 120mm, and then step on the pedal to bend frame, so you will waste the 120mm.

Certifications

Jinan lijiang, is to ask the most professional manufacturers, do a good job in wooden cases

, and packaging the products, packed in containers, to ensure that the products, without any

damage to the port of destination

Vision: make glass processing simpler and smarter

Enterprise purpose: seiko manufacturing, quality river

Enterprise values: pioneering and enterprising, mission must be achieved, honest and trustworthy, optimistic and positive

FAQ

Q: What is the system of Kation’s after sale service?

A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding

customer to find the usual problem and the answer when customers meet.

Q: What is the details of the after sale service?

A: Step1: Notice before installation

Step2 : Confirm before installation

Step3: On-site installation

Step4: On-site debugging

Step5: On-site training

Step6: Client sign

Step7: On-line service

Step8: Technical service
