Product Details:
|
| Name: | Automatic Spacer Bending Machine | Min Bending Size: | 250*200mm |
|---|---|---|---|
| Aluminum Spacer Width: | 6A-27A | Dimension: | ±0.5mm |
| Angle Error: | ±1 | Size: | 10500*2200*2600mm |
| Spacer Storage: | 4-11 | Aluminum Spacer: | YES |
| Warm Edge Spacer: | Yes | Printing Function: | Yes |
| Highlight: | industrial bending machine,spacer bar bending machine |
||
Automatic stainless steel spacer bending machine double glazing machine
Spacer Bending Machine Details
|
Spacer Bending Machine automatically avoid spacer -connection place while bending and cutting |
| Spacer Bending Machine have Four different spacer size storage units |
| Spacer Bending Machine Spacer automatically connecting and cutting , when spacer use out then machine will stop automatically |
| Spacer Bending Machine Can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (option) |
|

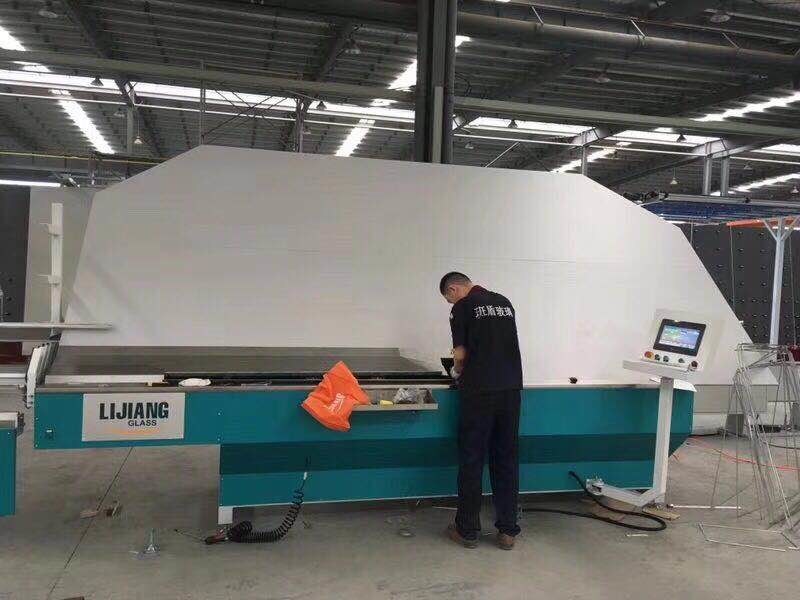

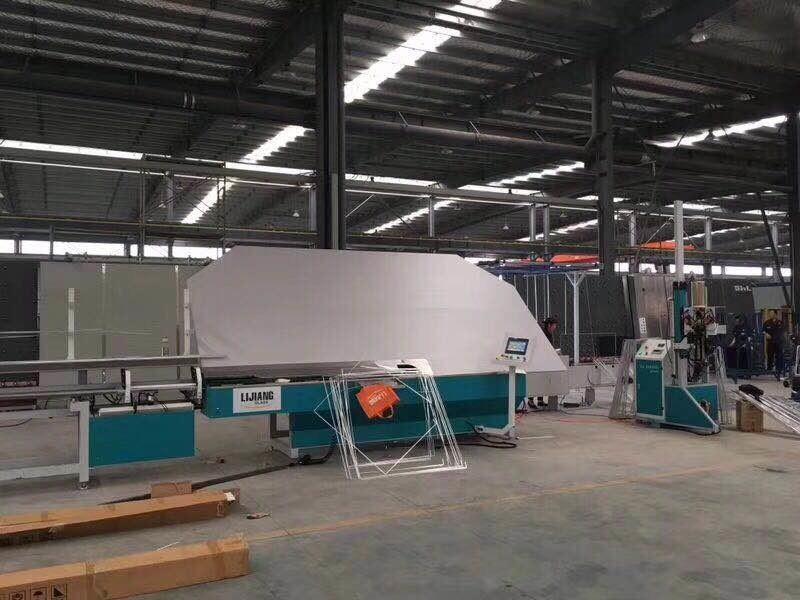

Spacer Bending Machine is used to apply Siemens control system and touch screen operation to achieve automatically bend aluminum and warm edge spacers of insulating glass evenly, Spacer Bending Machine has functions of size optimization calculation, evading connected pieces and connecting automatically. So the Spacer Bending Machine can greatly increase bending efficiency, Spacer Bending Machine only spends 26s to bend a 1m*1m frame. Spacer Bending Machine can process angle size well and control the anger size in 0.015mm. |
Spacer Bending machine Main technical parameter
| Max.bending size | 2000mm*2000mm |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-24mm |
| Dimensional error: | ≤±0.5mm |
| Angle error | ≤±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | JAPAN FUJI | Solenoid valve | Taiwan AIRTAC |
| Servo driver | JAPAN FUJI | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
.
Advantages of Lijiang Products
1, we are producing all DGU machines :
Vertical Insulated Glass Produce Line for double glass production line, Auto Sealing Robot for double glass production line, Sealant Spreading Machine for double glass production line, Low-E Glass Washing &Drying Machine for double glass production line, Smart Edge Deleting Machine for double glass production line, Automatic Spacer Bending Machine for double glass production line, Automatic Desiccant Filling Machine for double glass production line, Butyl Extruder Machine for double glass production line, Glass Edge grinding Machine for double glass production line, Spacer Cutting Machine for double glass production line, Sealing gun Freezer for double glass production , Rotated Sealant Spreading Table double glass sealing, Argon Gas Filling Machine double glass , Semi-auto Aluminum Frame, Spacer Transfer Machine for double glass production line, Molecular Sieve Filling Machine double glass production line, Glass Lifting Table double glass production line, Glass Loading /unloading Device for double glass production line, Water Treatment System for double glass production line (Economy), Water Treatment System double glass production line (Advanced), Auto Seaming Machine
2, we have our own technician team and we got patent for the spacer bending machine and butyl extruder machine and desiccant filling machine and so on.
For the Double Glazing Production line we have latest technology about Glass pressing part and argon gas filling part .
For the Automatic sealing robot , the mechanical head is in front of machine, it can achieve the real connection with Double Glazing production line when producing the step glass.
For the Spacer bending machine, our machine can bend aluminum spacer and warm edge spacer ,and stainless steel, warm edge spacer need heating before bend, the corner error is acceptable range, we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service .
for the butyl extruder machine , our best advantage is coating speed can up to 47m/min , it can save materials up to 30% compare with other brand(4-7g/m), we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service. Now we are making new design -Machine can connect with big Bucket glue 200L, it can save refilling the glue time.
For the desiccant fillier machine , the biggest advantage is it can fill the rectangle and arc frame shape in one machine.
For the manual gas filling machine, we can input the argon gas concentration into touch screen and it can display the whole gas filling processing, customer will know exactly how much argon gas filled inside. When it up to the value you input , argon gas filling machine will automatic stop and give us alarming.
