Product Details:
|
| Name: | Spacer Bending Machine | Operation: | Touch Screen Operation |
|---|---|---|---|
| Aluminum Spacer Width: | 6A-27A | Control: | Siemens Control System |
| Size: | 10500*2200*2600mm | Spacer Storage: | 4-11 |

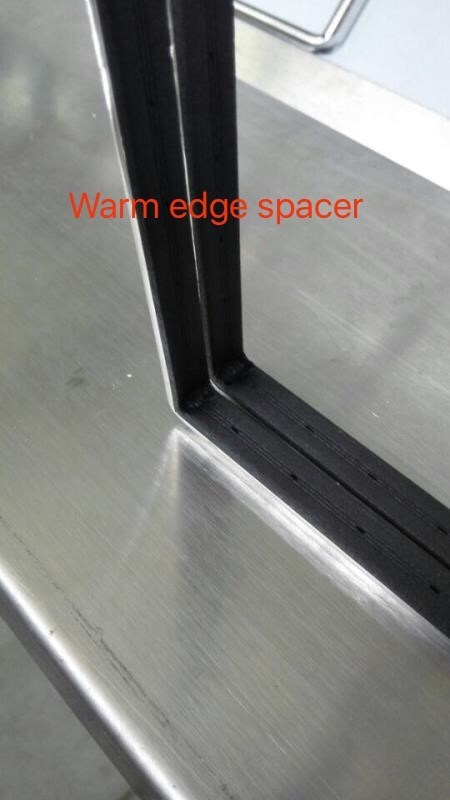

| Aluminum Spacer: | YES | Warm Edge Spacer: | Yes |

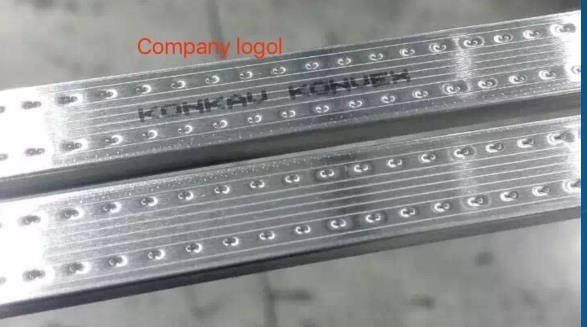

| Printing Function: | Yes | Argon Gas Filling Hole: | Yes |
| Highlight: | industrial bending machine,spacer bar bending machine |
||
Automatic Spacer Bending Machine spacer bar bending machine double glazing machine
Spacer Bending Machine Details

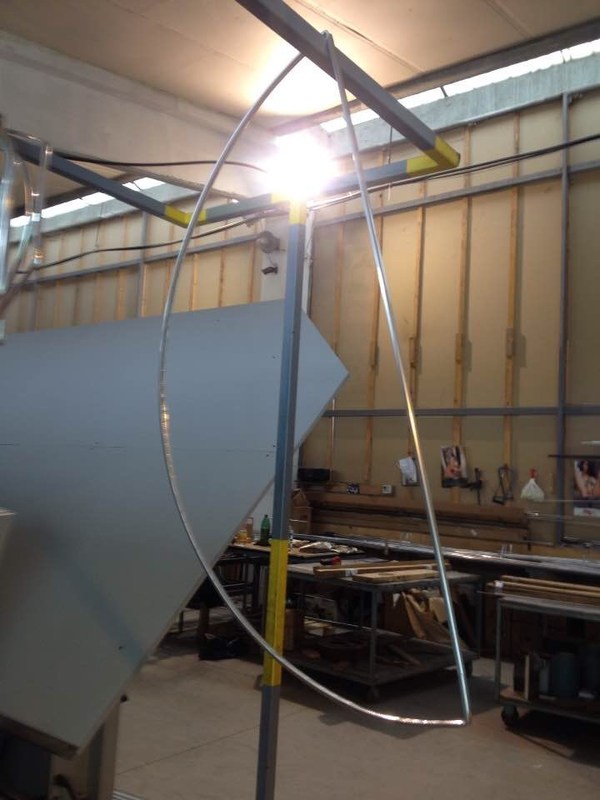

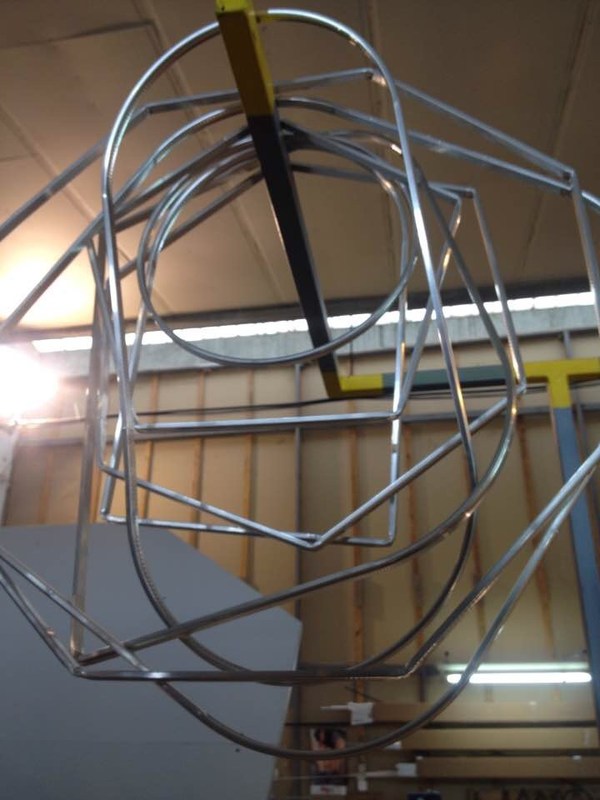

Spacer Bending Machine is used to apply Siemens control system and touch screen operation to achieve automatically bend aluminum and warm edge spacers of insulating glass evenly, Spacer Bending Machine has functions of size optimization calculation, evading connected pieces and connecting automatically. So the Spacer Bending Machine can greatly increase bending efficiency, Spacer Bending Machine only spends 26s to bend a 1m*1m frame. Spacer Bending Machine can process angle size well and control the anger size in 0.015mm. Spacer Bending Machine also can bend special-shaped frame and it improves practicability of machines by humanization designed. So Spacer Bending Machine is necessary equipment in insulating glass
Spacer Bending machine Main technical parameter
| Max.bending size | 2000mm*2000mm |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-24mm |
| Dimensional error: | ≤±0.5mm |
| Angle error | ≤±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | JAPAN FUJI | Solenoid valve | Taiwan AIRTAC |
| Servo driver | JAPAN FUJI | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
Glass Expo
National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America, Mexico glass expo .Big Five In Dubai, Egpyt.
Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.
Service Team:
We have our own china domestic team and oversea service team .
Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers , two of them from india and others from south America and midle east.
24 hours online service and local engineer available , guarantee customers got timely service and solution .
Technician Team:
We have our own technician team ,IG line and automatic sealing robot technician team have 6 experts which all have more than 15 glass machine working experience. Aluminum spacer bending and desiccant filling machine team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years,
