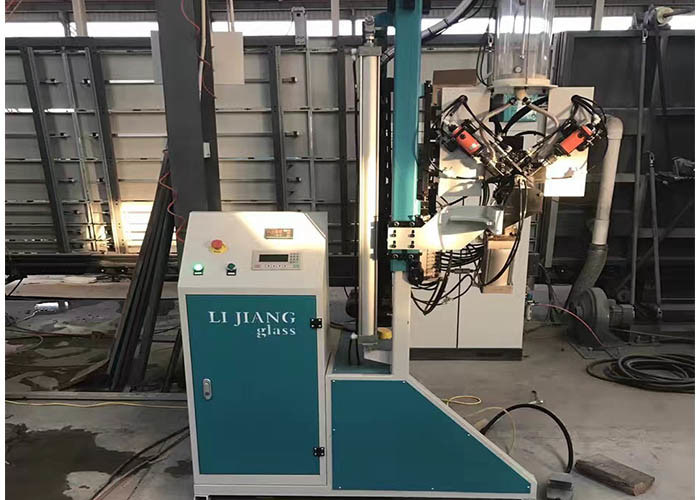

Product Details:
|
| Production Name: | Automatic Desiccant Filling Machine | Spacer Size: | 6-27A |
|---|---|---|---|
| Color: | Blue (Optional) | Min Spacer Size: | 300mm*250mm |
| Dimension: | 1100mm*1100mm*3600mm | Molecular Sieve Diameter Needed: | 0.5-0.9 Mm Or 1.0 – 1.5mm |
| High Light: | glass bending machine,industrial bending machine |
||
Main feature
• Adopt Siemens PLC control system
• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes
• Touch screen interface, simple and visible
• The machine height can be adjusted according to the size of spacer frame
• Automatically loading and replenish molecular sieve
• Double tubes for unloading to increase filling speed
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency (Optional)
• Protection device for machine head (Optional)
• Filling arc frame (Optional)
Technical data
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
| Dimension | 1100mm*1100mm*3600mm |
