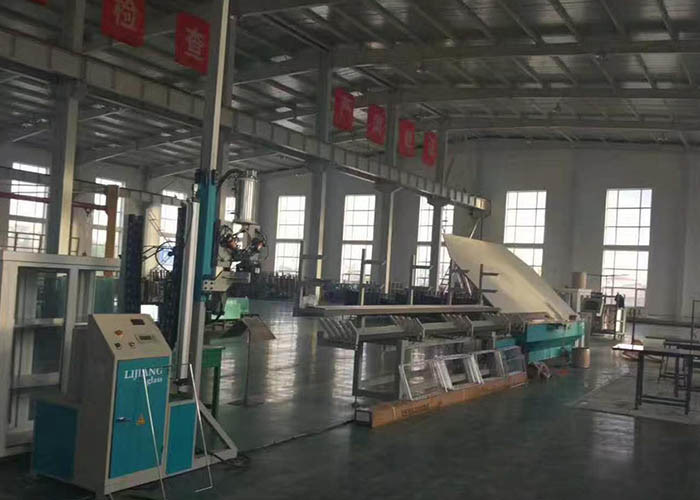

Product Details:
|
Production Name: | Automatic Warm Spacer Bending Machine | Machine Length: | 11meters |
---|---|---|---|
Sapcer Size: | 6 - 27mm | Print Logo: | Yes |
Print Sticker: | Yes | USB: | Yes |
Warranty: | 1 Year | ||
Highlight: | glass bending machine,industrial bending machine |
Main feature
• Siemens 1200 PLC control system with fast working speed
• 4 groups of storages (2 or 12 groups of storages can be optional)
• Automatically cut and feed aluminum spacers
• Automatically avoid the pins while bending and cutting
• Bend spacer frames continuously
• Aluminum spacers are available in sizes of 6A-27A
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer
• Connect to ERP system (Optional)
• USB input function, read the excel format file directly
• Automatically drill holes for filling argon gas (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)
• Bending warm spacer (Optional)
Details introduce
Spacer printing code function (Optional)
• 2 or 12 groups of storages (Optional)
• Printing label sticker function (Optional)
• Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A (Optional)
Technical data
Max. bending size | 2000mm*2000mm |
Min. bending size | 250mm*200mm |
Aluminum spacer width | 5.5-27mm |
Dimensional error | ±0.5mm |
Angle error | ±1º |
Processing speed | 17s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
Electrical parameters
NAME | ORIGIN | BRAND |
PLC | Germany | SIEMENS |
Servo driver | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
Low voltage component | Germany | SIEMENS |
Triplet | Taiwan | AIRTAC |
Cylinder | Taiwan | AIRTAC |
Relay | Japan | OMRON |
Sensor | KOREA | AUTONICS |
Touch screen | Taiwan | WEINVIEW |
Guide | Taiwan | TBI |
Solenoid valve | Taiwan | AIRTAC |
Switch power | Taiwan | TEND |
