Product Details:
|
| Name: | Aluminum Spacer Bending Machine | System: | Siemens PLC |
|---|---|---|---|
| Max.bending Size: | 2000mm*2000mm | Min.bending Size: | 250mm*200mm |
| Aluminum Spacer Width: | 6A-27A | Dimensional Error: | ±0.1mm |
| Angle Error: | ≤1 | Processing Speed: | ≤26s |
| Racks: | 2/4/12 | Function: | Printing Code，Printing Paper Label |
| High Light: | industrial bending machine,spacer bar bending machine |
||

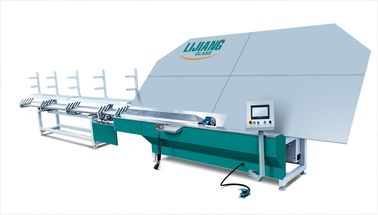

Aluminum spacer bending machine uesd for hollow glass processing
Aluminum spacer bending machine adopt Siemens PLC control system, can be divided into three types: the bending machine with four grooves, the bending machine with two grooves, and the bending machine with 12 grooves. The bending machine with two grooves can be used for customers with less specifications of aluminum strips and less frequent switching of aluminum strips. 12 groove bender to be improved.
Aluminum spacer bending machine has the following additional functions:
1. The bending machine has a special arc pressing wheel to bend the arc, with the minimum arc radius of R60 and the maximum of R150. The specification of foldable arc aluminum strip is 6a-16a. The main figures that can be folded are octagons (train windows).
2. The bending machine can realize the code spraying function.
3. The bending machine can be equipped with label printing function.
4. The bending machine can be equipped with external hanging and filling air hole function.

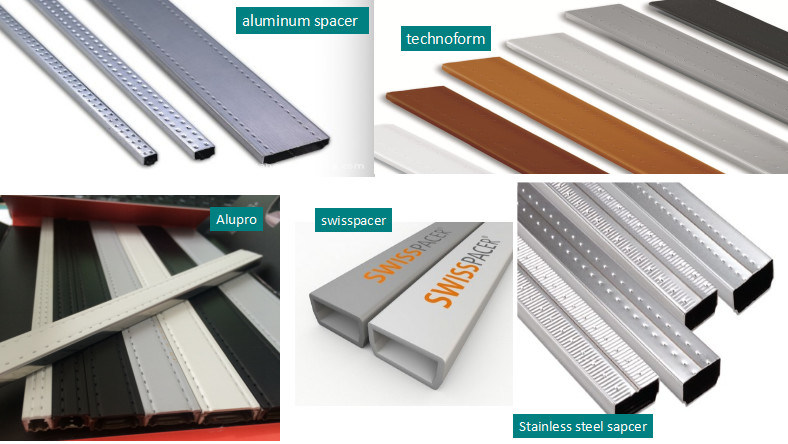

5. The bending machine can fold some stainless steel bars,
6. The bending machine can warm the edge strip.
| Max.bending size | 2000mm*2000mm |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-24mm |
| Dimensional error: | ≤±0.5mm |
| Angle error | ≤±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
