Product Details:
|
Name: | Automatic Spacer Bending Machine | System: | Siemens PLC |
---|---|---|---|
Max.bending Size: | 2000mm*2000mm | Min.bending Size: | 250mm*200mm |
Aluminum Spacer Width: | 6A-27A | Dimensional Error: | ±0.1mm |
Angle Error: | ≤1 | Processing Speed: | ≤26s |
Highlight: | glass bending machine,industrial bending machine |

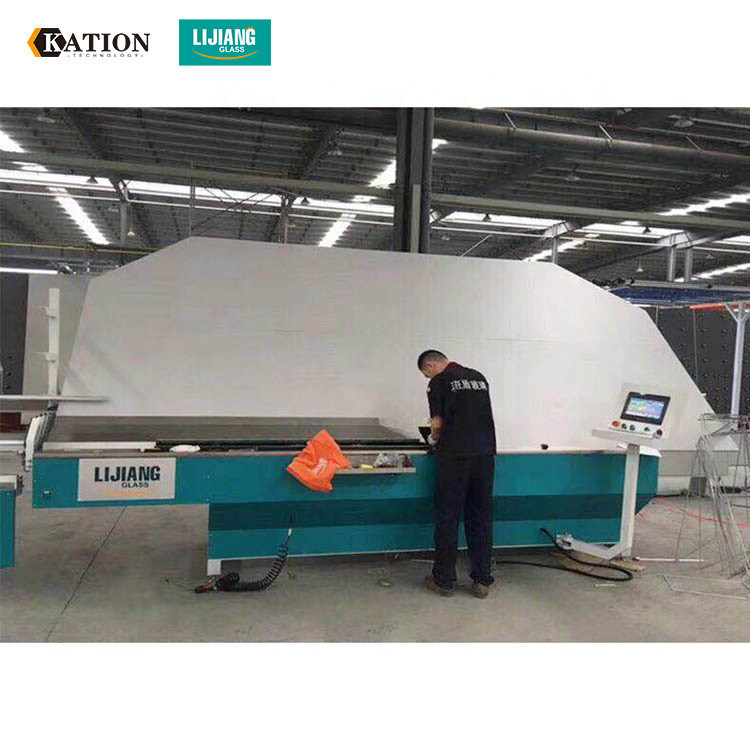

Automatic Aluminum Bar Bending Machine With Fast Bending Speed 6A-27A
Automatic Spacer Bending Machine Adopt Siemens PLC control system,There are 4 Siemens servo .
Automatic Spacer Bending Machine Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks.
Automatic Spacer Bending Machine can Automatically cut and feed aluminum spacers
Automatic Spacer Bending Machine can Bend shaped spacer frames continuously
Automatic Spacer Bending Machine can Automatically avoid the connecting corner while bending and cutting
Automatic Spacer Bending Machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.
Automatic Spacer Bending Machine Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics.
The special machine hand device is used to bend big spacer frame in Automatic Spacer Bending Machine
Heavy duty connectors is convenience and safety for installation and debugging
Spare parts of all machine have ID codes.
Precise bending effect, corner error less than 0.1mm.
Spacer printing code function (Optional)
Automatic drill gas filling hole (Optional)
Printing paper label sticker function (Optional),could remove it easily.
USB input function, read the excel format file directly etc (Optional)
Connect to ERP system (Optional)
Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and stainless steel ( Optional) and so on.
Max.bending size | 2000mm*2000mm |
Min.bending size | 250mm*200mm |
Aluminum spacer width | 5.5-24mm |
Dimensional error: | ≤±0.5mm |
Angle error | ≤±1º |
Processing speed | ≤26s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
