Product Details:
|
| Name: | Glass Lifting Table | Usage: | Double Glass Processing |
|---|---|---|---|
| Function: | Glass Lifting | Power: | 2.5KW |
| Number Of Suckers: | 2 | Weight: | 300kg |
| Color: | Customers' Request | Dimension: | L1120xW660XH620mm |
| Highlight: | mechanical vacuum lifter,hoist lifting equipment |
||

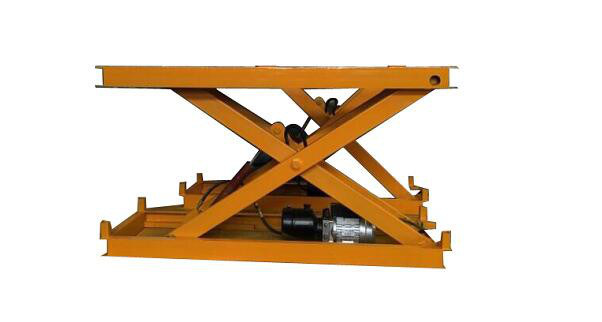

Glass lifting table used for unloading glass replacing the hand work.
Glass lifting table is used to load and unload heavy and hot glass easily.
Glass lifting table is easy to carry and very safe and save many labor cost.
Glass lifting table max carring ability is 300KG.
Glass lifting tableis equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
Glass lifting table have Special safety appliance to aviod the electric break. If the electric is turn off suddenly, the glass will not fall down and damage the people.
All the switches/alarm is equipped on the operaing plate and very easy to check the questions.
Glass lifting table's sucker is high temperature resistent with high quality and can add according to your request.
|
Max load3
|
300KG
|
|
Around rotary scope
|
90°
|
|
Column height
|
3400mm or 3900mm
|
|
Track length
|
4m
|
|
Lifting height
|
1.4m
|
|
Number of sucker
|
4
|
|
Moving mode
|
Manual
|
|
Operation mode
|
Manual switch valve
|
|
Air pressure
|
0.5mpa-0.8mpa
|
