Heavy Duty Frame Bending Machine / Stainless Steel Glass Spacer 4 Siemens Servos

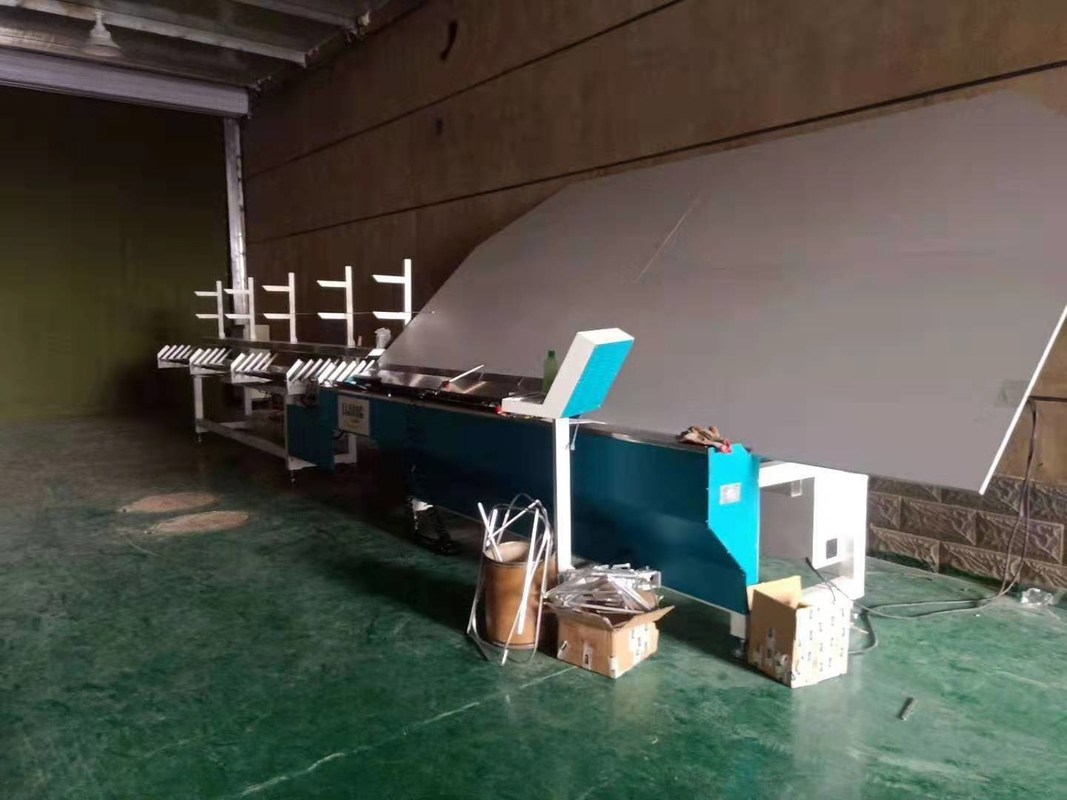

Automatic spacer bending machine LJZW2020

Application

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.

Equipment details

• Adopt Siemens PLC control system
• There are 4 Siemens servo
• Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks.
• Automatically cut and feed aluminum spacers
• Bend shaped spacer frames continuously
• Automatically avoid the connecting corner while bending and cutting
• The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.
• Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics.
• The special machine hand device is used to bend big spacer frame

• Heavy duty connectors is convenience and safety for installation and debugging

• Spare parts of all machine have ID codes.

• Precise bending effect, corner error less than 0.1mm.

• Leading Technology

• Spacer printing code function (Optional)

• Automatic drill gas filling hole (Optional)

• Printing paper label sticker function (Optional),could remove it easily.

• USB input function, read the excel format file directly etc (Optional)
• Connect to ERP system (Optional)
• Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and stainless steel ( Optional) and so on.

• We have the special soft system which could avoid the 120mm to reduce waste. For example, if the length of the gusset is 60mm, when the program calculates the right angle, there is a gusset. When you start to bend the rectangular frame, you need firstly transport 120mm, then cut 120mm, and then step on the pedal to bend frame, so you will waste the 120mm.

Technical data

Electrical parameters
