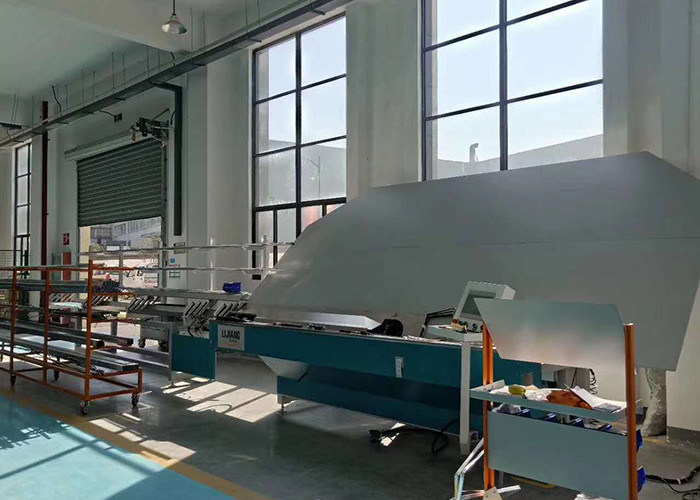

2000*2000Mm Spacer Frame Bending Glass Machine For IG Line , Touch Screen Operation

2000*2000Mm Spacer Frame Bending Machine For IG Line

Technical data

1. Max bending size : 2000*2000mm (more bigger size of frames should be bent seperately)

2. Min bending size : 250*200mm

3. Aluminum spacer width: 5.5 - 27mm

4. Dimensional error : ±0.5mm

5. Coner error : < 0.1mm

6. Processing speed : ≤26s

7. Total power : AC220/380V 50Hz 2.5KW

8. Warranty : 12 months

9. Storage section : 4 sections

10. Spacer materials : Aluminum , Stainless steel, warm edge bar, themix, technorform and so on

11. Machine hand : Support big frame

12. Optional functions :

• Spacer printing code function (Optional)

• Automatic drill gas filling hole (Optional)

• Printing label sticker function (Optional)

• USB input function, read the excel format file directly etc (Optional)

• Connect to ERP system (Optional)
• The special soft system which could avoid the 120mm to reduce waste. For example, if the length of the gusset is 60mm, when the program calculates the right angle, there is a gusset. When you start to bend the rectangular frame, you need firstly transport 120mm, then cut 120mm, and then step on the pedal to bend frame, so you will waste the 120mm.

Equipment details

• Adopt Siemens PLC control system, touch screen interface
• Japan FUJI CNC servo control system

 Four spacer size storage units

• Aluminum spacers are available in different sizes and sizes

• Automatically cut and feed aluminum spacers
• Bend shaped spacer frames continuously
• Automatically avoid the connecting corner while bending and cutting

• Aluminum spacers are available in different sizes and sizes

• Automatically cut and feed aluminum spacers
• Bend shaped spacer frames continuously
• Automatically avoid the connecting corner while bending and cutting

• The special machine hand device is used to bend big spacer frame
• Heavy duty connectors is convenience and safety for installation and debugging

• Taiwan Airtac Magnetic valve; German Siemens PLC control system; Japan Fuji servo control system.

• Spare parts of all machine have ID codes.

• Precise bending effect, corner error less than 0.1mm.
