Product Details:
|
| Max.bending Size: | 2000mm*2000mm | Min .bending Size: | 250mm*200mm |
|---|---|---|---|
| Aluminum Spacer Width: | 6A-27A | Dimensional Error: | ≦±0.5mm |
| Angle Error: | ≦±1 | Air Supply: | ≥0.65Mpa |
| Tota Lpower: | AC220/380V 50HZ 2.5KW | Dimension: | 10500mm*2200mm*2600mm |
| Highlight: | glass bending machine,industrial bending machine |
||

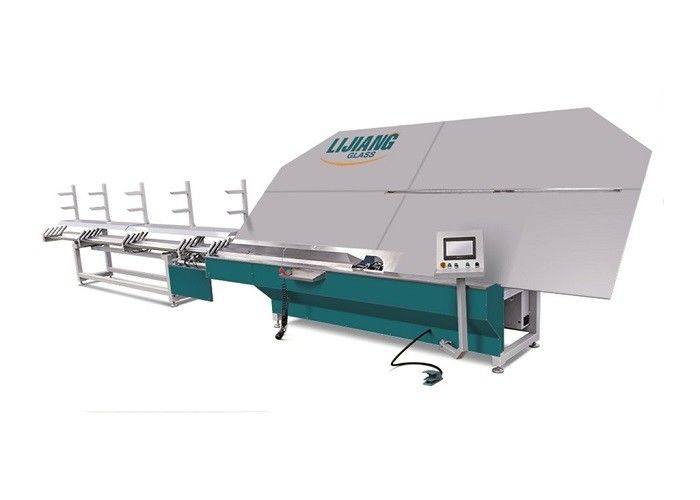

The machine is used to apply Siemens control system and touch screen operation to achieve automatically bend aluminum and warm edge spacers of insulating glass evenly, and the machine has functions of size optimization calculation, evading connected pieces and connecting automatically. So the machine can greatly increase bending efficiency, it only spends 26s to bend a 1m*1m frame. The machine can process angle size well and control the anger size in 0.015mm. It also can bend special-shaped frame and it improves practicability of machines by humanization designed. So it is necessary equipment in insulating glass productions
Main FeaturesFour different spacer size storage units
Can bend aluminum spacer/ technoform/ Alupro
Spacer auto connecting and cutting
machine stop auto when no spacer supplied
Support continuous bending , auto avoid spacer connection while bending and cutting
Aluminum connectors auto-connect
Machine hand help to bend the bigger spacer
Drill hole for gas filling(option)
Pause and reset device,convenient for machine malfunction maintained
Remote control function
Usb input function ,it can read the excel data directly
Spacer inkjet printing ,various color is available(option)
Scanner scan two-dimension code ,bar code (option)
Spare parts of all machine have code ,convenient for after-sale
Heavy duty connectors ,convenience and safety for installation and debugging
Magnetic valve use Taiwan Airtac
German siemens plc control systerm
Japan fuji servo control system
