Product Details:
|
| NAME: | Automatic Spacer Bending Machine | Max.bending Size: | 2000mm*2000mm |
|---|---|---|---|
| Min.bending Size: | 250mm*200mm | Aluminum Spacer Width: | 5.5-24mm |
| Dimensional Error: | ≤±0.5mm | Angle Error: | ≤±1° |
| Processing Speed: | ≤26s | Air Supply: | ≥0.65MPa |
| Weight: | 1250kg | Power: | 2.5KW |
| Color: | Customers' Request | ||
| Highlight: | glass bending machine,industrial bending machine |
||

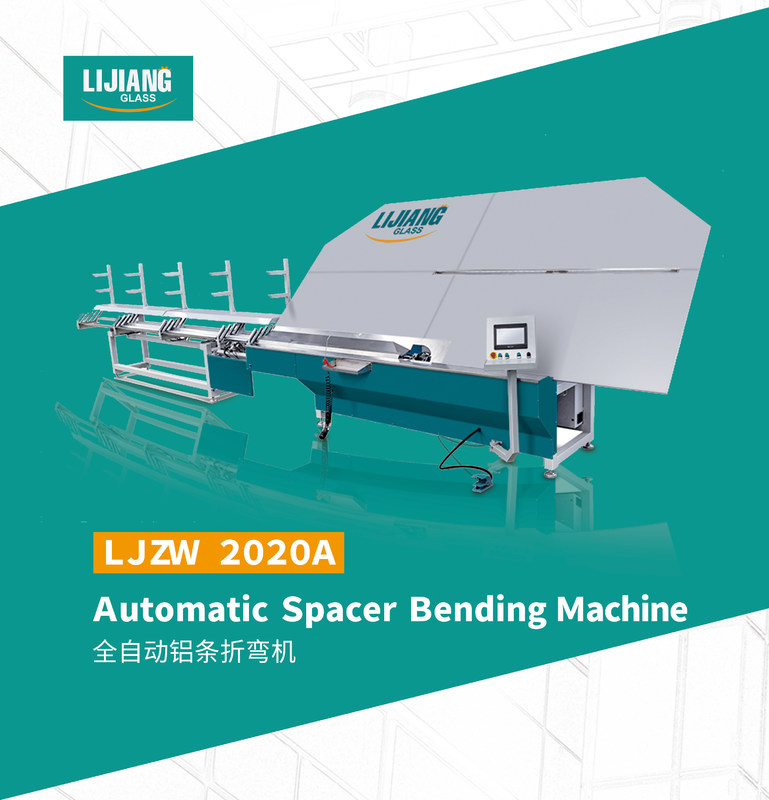

Automatic spacer bar bending machine for insulating glass making with four spacer storage can bend shaped frame
Main features
The Automatic spacer bar bending machine for insulating glass making with four spacer storage can bend shaped frame is used to apply Siemens control system and touch screen operation to achieve automatically bend aluminum and warm edge spacers of insulating glass evenly, and the machine has functions of size optimization calculation, evading connected pieces and connecting automatically.
So the Automatic spacer bar bending machine for insulating glass making with four spacer storage can bend shaped frame can greatly increase bending efficiency, it only spends 26s to bend a 1m*1m frame.
The Automatic spacer bar bending machine for insulating glass making with four spacer storage can bend shaped frame can process angle size well and control the anger size in 0.015mm. It also can bend special-shaped frame and it improves practicability of machines by humanization designed.
So Automatic spacer bar bending machine for insulating glass making with four spacer storage can bend shaped frame is necessary equipment in insulating glass productions.
Main technical parameter
| Max.bending size | 2000mm*2000mm |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-24mm |
| Dimensional error: | ≤±0.5mm |
| Angle error | ≤±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension6 | 500mm*2200mm*2600mm |
Option Functions
1) USB input function, can read excel form file directly.
2) Bend stainless steel spacer
3) Spacer printing function
