Product Details:
|
| Color: | Customer's Request | Max.bending Size: | 2000mm*2000mm |
|---|---|---|---|
| Min.bending Size: | 250mm*200mm | Aluminum Spacer Width: | 5.5-24mm |
| Dimensional Error: | ≤±0.5mm | Angle Error: | ≤±1° |
| Processing Speed: | ≤26s | Air Supply: | ≥0.65MPa |
| Function: | Spacer Bending | Weight: | 1250kg |
| Aluminum Spacer Bending: | Available | Shaped Frame: | Available |
| Highlight: | glass bending machine,industrial bending machine |
||

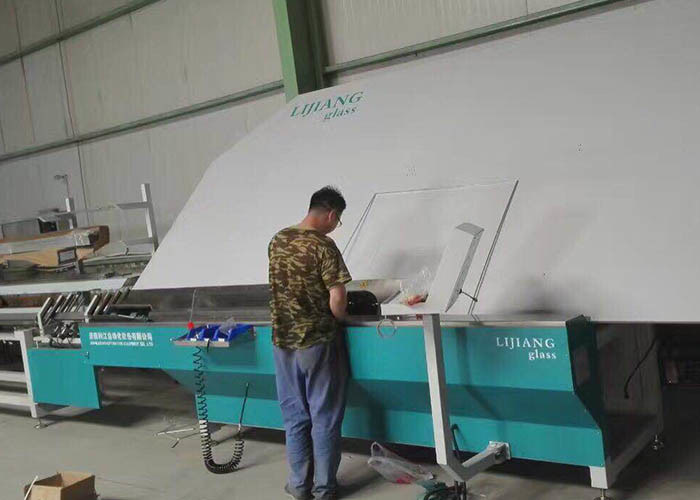

Automatic Aluminum Spacer Bending Machine With Drilling Gas Filling Hole Function For Hollow Glass Making
APPLICATION
Automatic Aluminum Spacer Bending Machine With Drilling Gas Filling Hole Function For Hollow Glass Making is used to bend aluminum spacer bars of insulating glass. The aluminum spacer bar bender can adjust and control aluminum frame size automatically through PLC system. Automatic Aluminum Spacer Bending Machine With Drilling Gas Filling Hole Function For Hollow Glass Making can also achieve rectangle-shape bending of three aluminum spacer bars in single working operation. Featuring high precision, easy operation and high efficiency, this aluminum spacer bending machine is the ideal equipment for mass production of cold-edge insulating glass.
| Voltage | AC 220 V 50 Hz |
| Power | 1.0 kW |
| Air Pressure | 0.5 to 0.8 Mpa |
| Aluminum Bar Size | 6 mm to 24 mm |
| Aluminum Spacer Size | 250 mm × 150 mm (Min.) |
| 2000 mm × 2000 mm (Max.) | |
| Overall Dimension | 10500mm × 2200 mm × 2600 mm |
| Weight of Aluminum Spacer Bar Bender | 1250 kg |
Main Features
1, Can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (option
2, Spacer automatically connecting and cutting , when spacer use out then machine will stop automatically.
3, USB input function ,it can read the excel data directly
4,Four different spacer size storage units
5, Remote control function
6, Support continuous bending , it automatically avoid spacer -connection while bending and cutting
7, Pause and reset device,convenient for machine malfunction maintained
8, Spare parts of all machine have ID code ,convenient for after-sale service
9,Taiwan Airtac Magnetic valve . German siemens plc control system Japan fuji servo control system
10, Heavy duty connectors ,convenience and safety for installation and debugging
Machine details
Certification
After sale service
As we all know,besides quality, after-sales service is also very important for customers.
After the customer receives the goods, our senior technician will go to customer's factory for installation and commissioning, as well as train the workers until the customer can use the equipment skillfully.
The customer can contact us at any time during the use. Our after-sales staff will solve the problem for you ASAP.
Production process
Packing & delivery
Seaworthy plastic & plywood aviloble.
