Product Details:
|
| Name: | Automatic Spacer Bending Machine | Type: | LJZW2020 |
|---|---|---|---|
| Max. Bending Size: | 2000mm*2000mm | Min.bending Size: | 250mm*200mm |
| Aluminum Spacer Width: | 5.5-27mm | Dimensional Error: | ±0.5mm |
| High Light: | industrial bending machine,spacer bar bending machine,27mm Width Spacer Bending Machine |
||

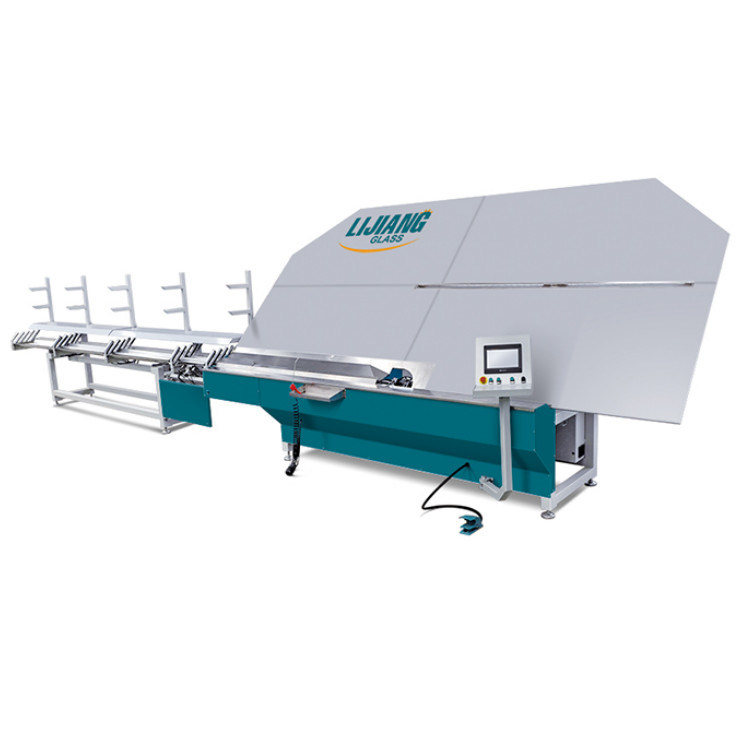

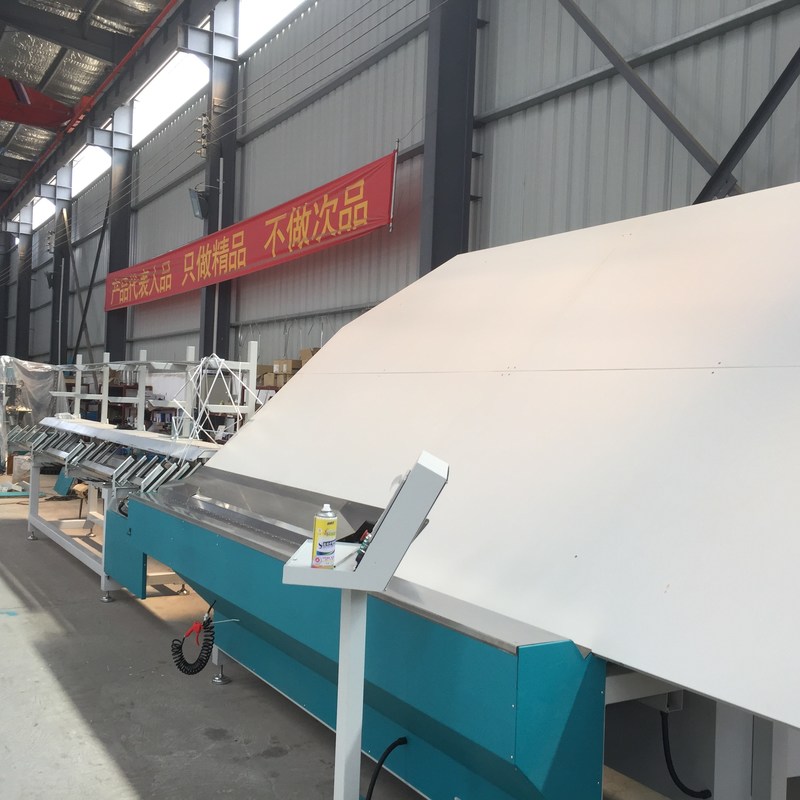

Automatic spacer bending machine LJZW2020
Automatic aluminum spacer bending machine is controlled by PLC. By virtue of the mode of
human-machine interactive data input on the touch screen, the facility can get the expected
parameter data in different specifications of rectangular aluminum frames, or the convex
polygon’s edge and corner data composed of arc-shaped section or straight flange not more
than 8 edges. Simultaneously, acquire the quantity of the aluminum frames that are required
to be processed, as well as the parameter of other control equipment in accurate operation,
which essentially satisfy the required shapes of the current insulating glass.

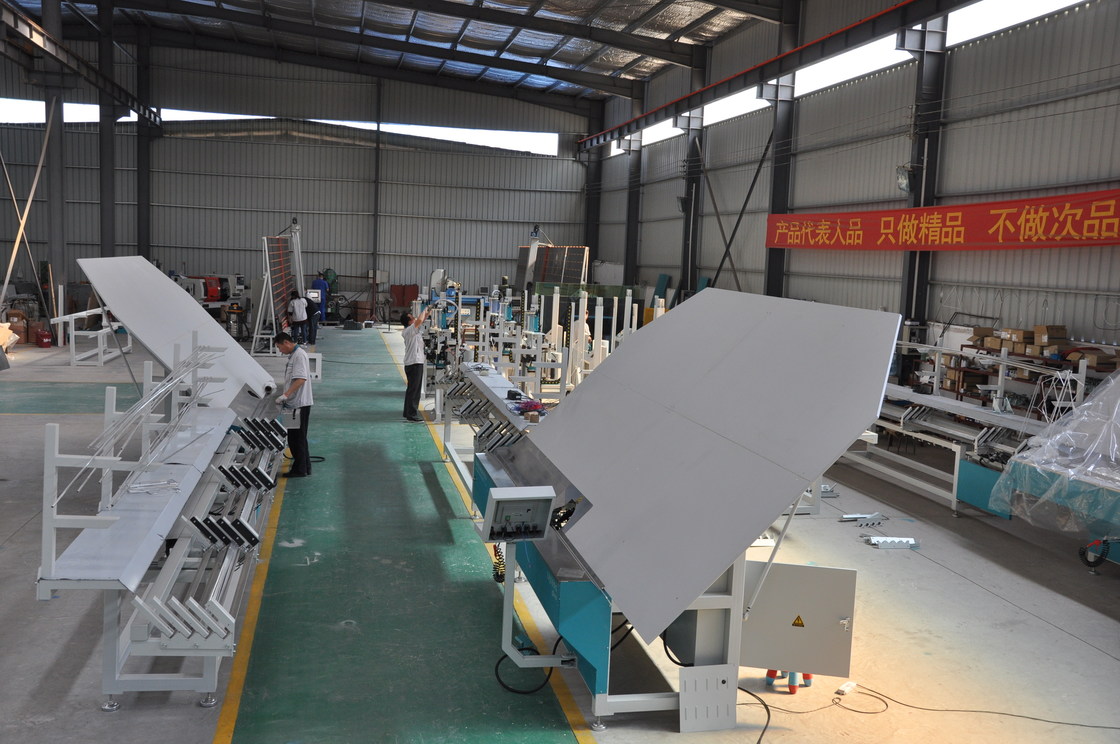

Architecture overview
Automatic aluminum spacer bending machine is composed of two parts, storage rack and
bending machine ontology.
Storage rack
Storage rack includes four movable storage chests, charging platform, trough-changing
mechanism, trough examination and other systems and components.
(1)Trough: The four storage troughs can save one to four types of aluminum spacers with the
same width or different widths, supplying for automatic access when the equipment is operating.
The four troughs can be freely in switching the position;
(2) Charging platform: the charging platform will provide operators with an operating platform to
add materials to the trough;
(3) Automatic feeding system: when the equipment is in operation, automatic feeding system
will convey the aluminum spacer to the ready position; in the process of bending, if the
aluminum spacer used for bending has reached the end, then automatic feeding system will
complete the following actions of the aluminum spacer to ensure the continuity of bending
work and realize the function of no tailing;
(4) Trough-changing mechanism: if the aluminum strips in the pre-trough are done, then it is
available to operate material-changing system to change into the trough with materials.
(5) Foot switch of trough changing: it is used to open the locked device, and operate trough-
changing mechanism.
Adopt Siemens electric.
Automatic drill gas filling hole
Spacer printing code function
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Servo driver | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| Low voltage component | Germany | SIEMENS |
| Triplet | Taiwan | AIRTAC |
| Cylinder | Taiwan | AIRTAC |
| Relay | Japan | OMRON |
| Sensor | KOREA | AUTONICS |
| Touch screen | Taiwan | WEINVIEW |
| Guide | Taiwan | TBI |
| Solenoid valve | Taiwan | AIRTAC |
| Switch power | Taiwan | TEND |
