Product Details:
|
| Name: | Vertical Insulating Glass Sealing Robot | Type: | LJTJ2540 |
|---|---|---|---|
| Max. Glass Size: | 2500*4000mm | Min. Glass Size: | 400*300mm |
| Glass Thickness: | 12-56mm | Working Speed: | 5-40m/min |
| Voltage: | 380V 50Hz 3P | Feature: | Repair Glass Corners With Scraper And Roller |
| High Light: | Insulating Glass Sealing Machine Automatic,Vertical Sealing Insulating Glass Robot,Insulating Glass Sealing Robot |
||

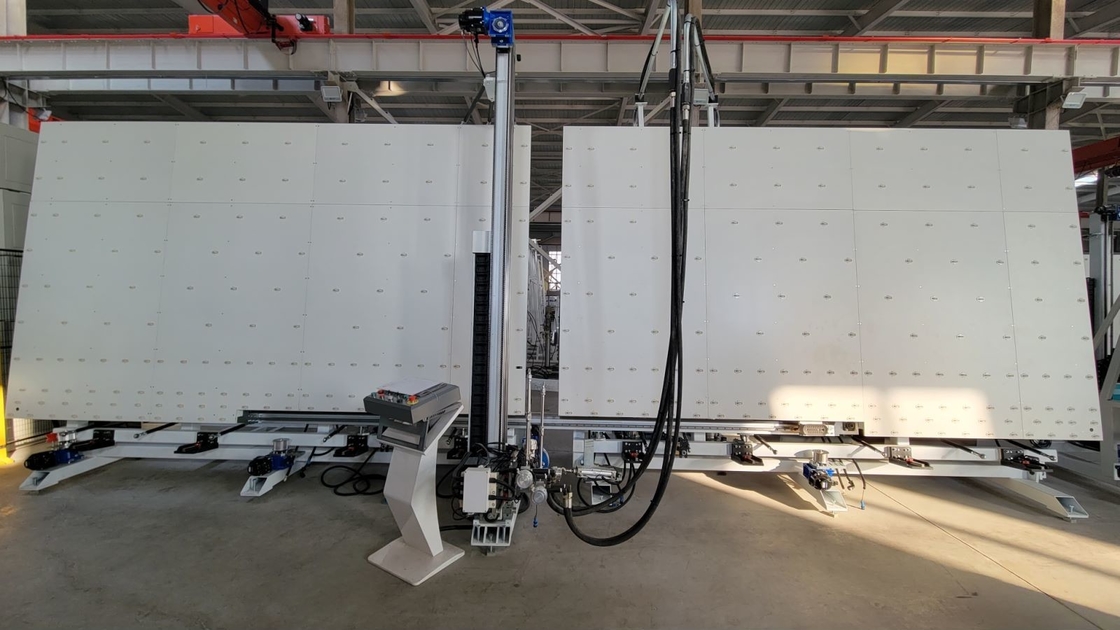

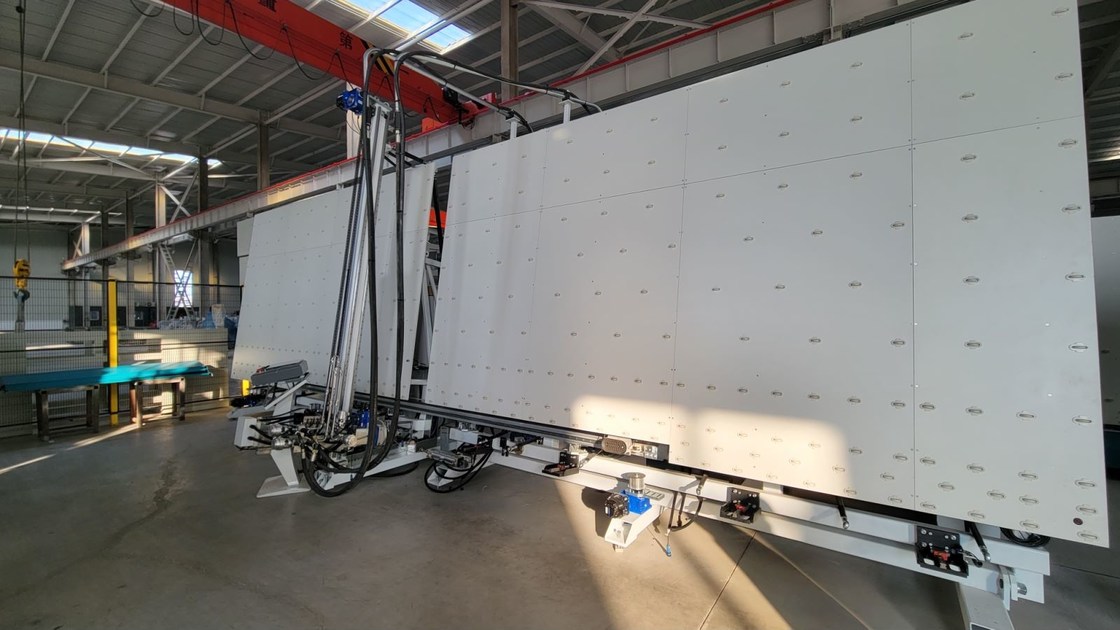

Automatic Insulating Glass Sealing Machine Insulating Glass Sealing Robot
The feature of automatic insulating glass sealing robot
1. The hollow glass sealing machine is suitable for glass deep processing enterprises, with a high degree of automation, which can reduce labor intensity, save manpower, and improve production efficiency
2. The insulating glass sealing line adopts a man-machine touch screen interface and has a memory function.
3. After the sealant is applied, the corners of the glass are full without bubbles, and the surface is flat, without chamfering
4. Two sets of independent sealant supply systems (including stirring device) are adopted, the two sealants can be quickly switched, and one-button operation is easy (Type II)
5. The width of the machine is 1.5m, which occupies a small area and saves space
6. Glass can be pre-stored in the third section to effectively improve efficiency
7. The smallest size of insulating glass that can be processed is 400*300mm
8. The mixer is equipped with an anti-blocking device
9. The servo control system adopts the world famous brand (YASKAWA, Japan), with stable performance
10. Shaft transmission ensures smooth glass delivery and accurate positioning.
11. The special V-shaped transmission belt prevents the sealant from sticking to the belt, ensures that the edge of the glass is clean, and the V-shaped seat is changeable.
12. Spare parts are produced with high standardization and high precision to ensure
The machine can be used stably for a long time
13. Suitable for triple glazing.
14. The conveying wheel on the back panel adopts embedded wheels to ensure the glass is transported smoothly
Details of automatic insulating glass sealing machine
Dyad Body Device
The dyad body device has two functions. The left one is used for filtering impurities and moisture
when filling gas into , then the right one plays the role of lubrication.
Two Suckers Device
Adopting two suckers for preventing to move glass during sealing.
The Device of Sealing Part
Adopt Japan YASKAWA servo motor to control the sealing part with 360°rotating. Setting
scraper blade to scrape out extra glue and no need to repair glass corners by second time.
Parameters of automatic hollow glass sealing machine
| Max.glass size | 2500mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Main components list
| Name | Brand |
| Switch | SIEMENS |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Siemens |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| PLC | Siemens |
| Guideway | Siemens |
