Product Details:
|
| Name: | Vertical Insulating Glass Sealing Robot | Type: | LJTJ2540 |
|---|---|---|---|
| Max.glass Size: | 2500*4000mm | Min.glass Size: | 170mm*400mm |
| Glass Thickness: | 12-56mm | Working Speed: | 5-40m/min |
| Air Pressure: | 0.6-0.8MPa | ||
| High Light: | insulated glass equipment,glass making machine,56mm Insulating Glass Machine |
||

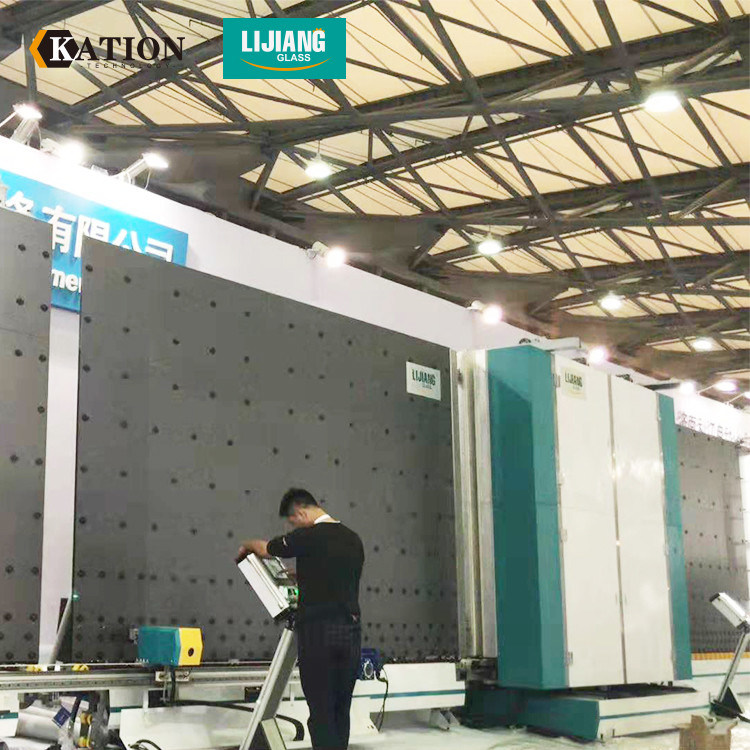

Vertical Insulating Glass Sealing Robot LJTJ2540
Application
Min & Max glass sizes can be optional
Adopt 8 servo motors
Adopt Japan ANCHUAN servo control system with stable performance
Automatically measure glass size, glue depth and glue speed with linear adjustment
Adopt timing belt to keep smooth convey with accurate position
Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
The glass corners are full without air bubbles, smooth surface, no need to
Full automatic and high-efficiency machine
New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
Automatically repair glass corners with beautiful surface
Smooth convey without scratch and pollution
Single-function parts are equipped with manual functions, easy adjustment
Shaped IG units (Optional)
Stepped IG units with four sides (Optional)
Double and Triple IG units
Intelligent Sensor
Automatically position the glass and sensor glue deep, the coating speed can be adjustable online.
Storage Function
It can store three pieces of insulating glasses when glass sizes are less than 1.8m.
Shaped Glass and Triple Function (Optional)
With the development of updating technology, the sealing robot can coat 8 shaped glasses according to the glass market.
Stepped glass (Optional)
We put the machine head in the front, it will more convenient to making stepped IG units. It can connect with the IG line.
Two Sets of Pump A & Pump B
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
| Max.glass size | 2000*2500mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.5-0.7MPa |
| Squeeze pressure | 32MPa |
| Overall dimension | 8000*1500*2700mm |
Main components list
| Servo motor | Japan Yaskawa |
| Servo driver | Japan Yaskawa |
| CPU | Japan Yaskawa |
| Low voltage component | Siemens |
| Guideway | Taiwan Hiwin |
| Switching power supply | Taiwan MW |
| Optoelectronic switch | Korea Autonics |
| Pneumatic component | Taiwan Airtac |
| Touch screen | Taiwan Wenview |
| Travel switch | Taiwan Tiande |
