15m/min Automatic Low E Glass Film Removing Machine For Glass Edge Deletion

15m/min Automatic Low E Glass Film Removing Machine For Glass Edge Deletion
15m/min Automatic Low E Glass Film Removing Machine For Glass Edge Deletion 15m/min Automatic Low E Glass Film Removing Machine For Glass Edge Deletion

Large Image :  15m/min Automatic Low E Glass Film Removing Machine For Glass Edge Deletion

Product Details:
Place of Origin: JINAN, CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJCM2545
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

15m/min Automatic Low E Glass Film Removing Machine For Glass Edge Deletion

Description
Production Machine: Automatic Low-e Film Deletion Machine Deletion Width: 10mm - 150mm
Max Glass Size: 2500mm*4500mm Min Glass Size: 350mm*500mm
Deletion Speed: 0 - 15m/min Wheels Size: 10mm, 12mm, Or 15mm
Application: Glass Processing Function: Automatic CNC Glass Edging Machines
High Light:

15m/min Glass Film Removing Machine

,

Deletion Glass Film Removing Machine

,

15m/Min automatic glass grinding machine

Automatic Low-E glass film removing machine for glass edge deletion​

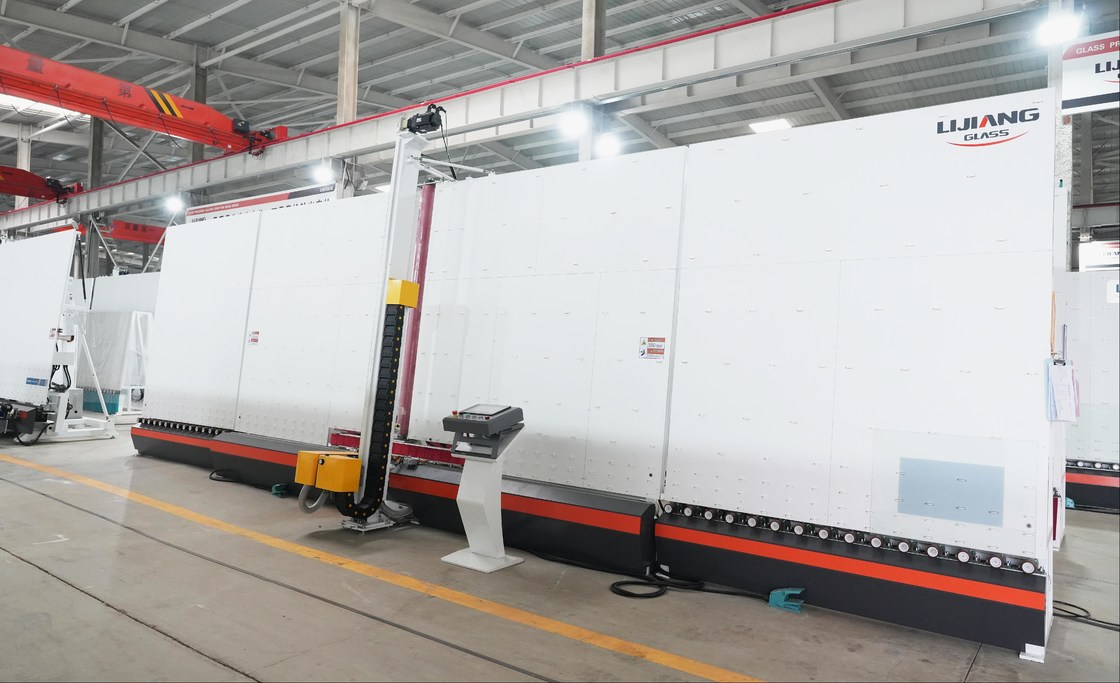

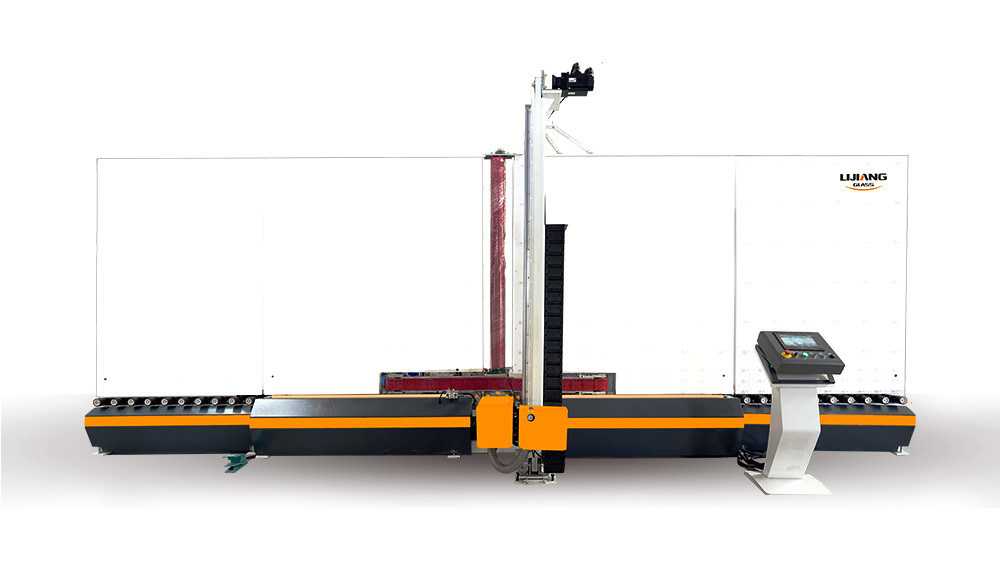

Product overview of automatic Low-e Glass film deletion machine



Automatic Vertical low-e glass film deletion machine for making insulating glass is used to delete the film on the Low-e glass with fast speed,To prevent the film from oxidizing when the insulating glass is synthesized. Low-E Glass Edge Deletion Machine can delete rectangle glass and shape glass, it has 6 servo motors.



The film deletion machine is divided into three sections, the first or the third section is 2.2 meters, mainly for glass input and output and storage of glass, the middle section 5.3 meters, mainly for film deletion.





Feature of automatic Low-E deletion machine



• PLC control system, touch screen interface

• Six servos control system

• Automatically measure size

• Two-way glass access

• Edge deletion is adjustable

15m/min Automatic Low E Glass Film Removing Machine For Glass Edge Deletion 0

• Automatically distinguish low-e surface

• The head can be rotated 360°

15m/min Automatic Low E Glass Film Removing Machine For Glass Edge Deletion 1

• Safe and full automatic device

• Intelligent control system, can recognize batch processing

• With our vertical film rdeletion machine can be connected to use, save labor, film removing effect is good, glass flatness is good, can be in addition to the large plate glass.



Technical parameters



Max glass size  2500mm*4500mm
Min glass size  350mm*500mm
Wheels width  10mm, 12mm, 15mm
Deletion width  10mm - 150mm
Glass thickness  3-15mm



15m/min Automatic Low E Glass Film Removing Machine For Glass Edge Deletion 2



Related Product



. Automatic Spacer Bar Bending Machine LJZW2020



15m/min Automatic Low E Glass Film Removing Machine For Glass Edge Deletion 3

Main feature of automatic bender for spacers



• Adopt Siemens PLC control system, touch screen interface

• Siemens servo control system

• Four spacer size storage units

• Automatically cut and feed aluminum spacers

• Auxiliary function of adjustment for bending large aluminum frame

• Aluminum spacers are available in different sizes and sizes

• Bend shaped spacer frames continuously

• Separated guard board outside of bender

• Automatically avoid the connection while bending and cutting

• Pause and Reset device for handling equipment failures



• USB input function, read the excel format file directly etc (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Can bend aluminum spacer and stainless steel ( Optional)

• Automatic drill gas filling hole (Optional)

• Connect to ERP system (Optional)



Technical data of auto spacer bending machine

Max. bending size 2000mm*2000mm (2500*2500mm)
Min. bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm



Butyl Extruder Machine LJTB 01

15m/min Automatic Low E Glass Film Removing Machine For Glass Edge Deletion 4

Main feature of

• PLC control system, touch screen interface

• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

• Fast preheat, improve work efficiency

• with preheating function

• With exhaust inflatable function, improve the quality of sealing and save time for plastic

• Quickly coating speed,can up to 47m/min

• Saving the amount of glue



Technical data



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 6A - 27A
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg



15m/min Automatic Low E Glass Film Removing Machine For Glass Edge Deletion 5
