Product Details:
|
| Name: | Vertical Insulating Glass Sealing Robot | Type: | LJTJ2025 |
|---|---|---|---|
| Max.glass Size: | 2000*2500mm | Min.glass Size: | 300*300mm |
| Glass Thickness: | 12-56mm | Working Speed: | 5-40m/min |
| Air Pressure: | 0.5-0.7MPa | ||
| High Light: | insulated glass equipment,glass making machine,8 Shaped Glass Sealing Robot |
||

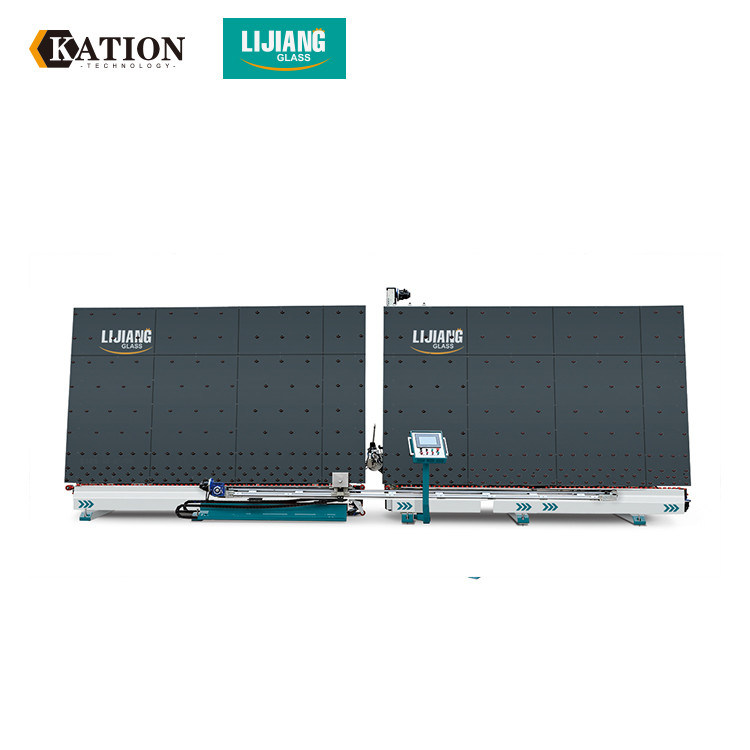

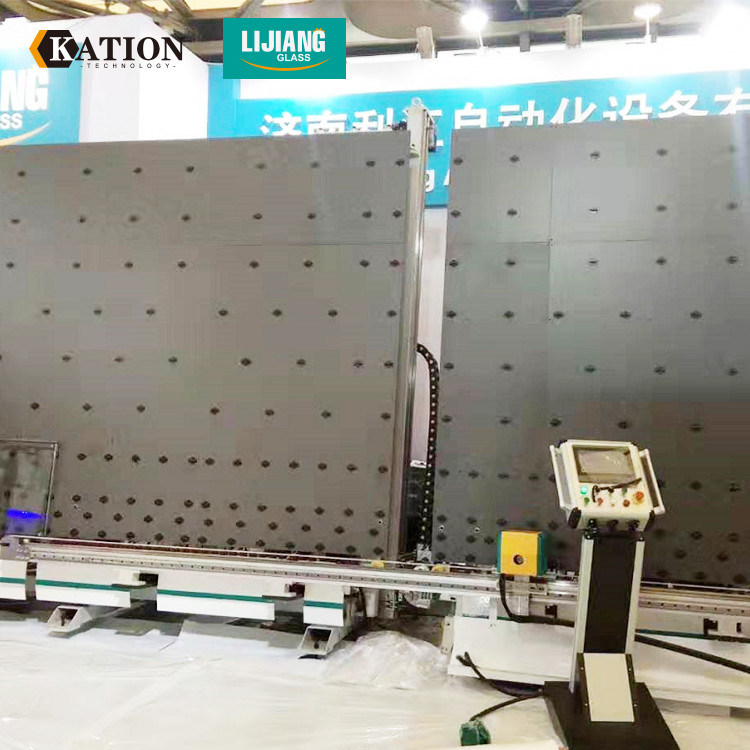

Vertical Insulating Glass Sealing Robot that can coating more than 8 kinds of shaped glass,include Semicircle......
The machine is suitable for glass deep processing enterprise ,high automation, Reduce
labor intensity, save manpower, improve production efficiency Whole machine adopt
man-machine touch screen interface,with memory function . After coating sealant ,the
glass edge and corner is full without air bubbles , smooth surface, no need to pare the
corner Using two sets of independent sealant supply system ( including the mixing
device ), two kinds of sealants switch fast ,in one-button operation easily (Model II)
The width of machine is 1.5m ,small floor area, save space
Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,
train glass and so on) stepped glass Can coat
triple glass by one time Fast reacting and volume controlled dosing system for IG glass,
2-component sealant The glass edge andcorner is full without air bubbles, smooth
surface, no need to repair the corner Synchron ous belt transmission to make the glass
being transferred smoothly with accurate positioning Electric and compressed air
switch valve:Ensure electrical automatic switch,stable performance and uniform coating.
Japan YASKAWA servo motor and CPU,Siemens low-voltage electrical appliances.
Equipped with two sets of A components and two sets of B components, which can be used for two kinds
of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
| Max.glass size | 2000*2500mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.5-0.7MPa |
| Squeeze pressure | 32MPa |
| Overall dimension | 8000*1500*2700mm |
Main components list
| Servo motor | Japan Yaskawa |
| Servo driver | Japan Yaskawa |
| CPU | Japan Yaskawa |
| Low voltage component | Siemens |
| Guideway | Taiwan Hiwin |
| Switching power supply | Taiwan MW |
| Optoelectronic switch | Korea Autonics |
| Pneumatic component | Taiwan Airtac |
| Touch screen | Taiwan Wenview |
| Travel switch | Taiwan Tiande |
