Product Details:
|
Machine Name: | Automatic Insulating Glass Sealing Robot Machine | Using: | Coating Glazed Glass |
---|---|---|---|
Max Glass Size: | 2500*4000 | Glass Thickness: | 56 Mm |
IG Type: | Double / Triple / 4-sides Step Glazing Glass | Control: | PLC And Servo Motor |
Using Glue: | Silicone / Polysulfide / Polyurethane | Warranty: | 1 Year |
High Light: | Automatic Insulating Glass Sealing Robot,Two Sealants Pumps Insulating Glass Sealing Robot,Coating Glue Insulating Glass Sealing Robot |

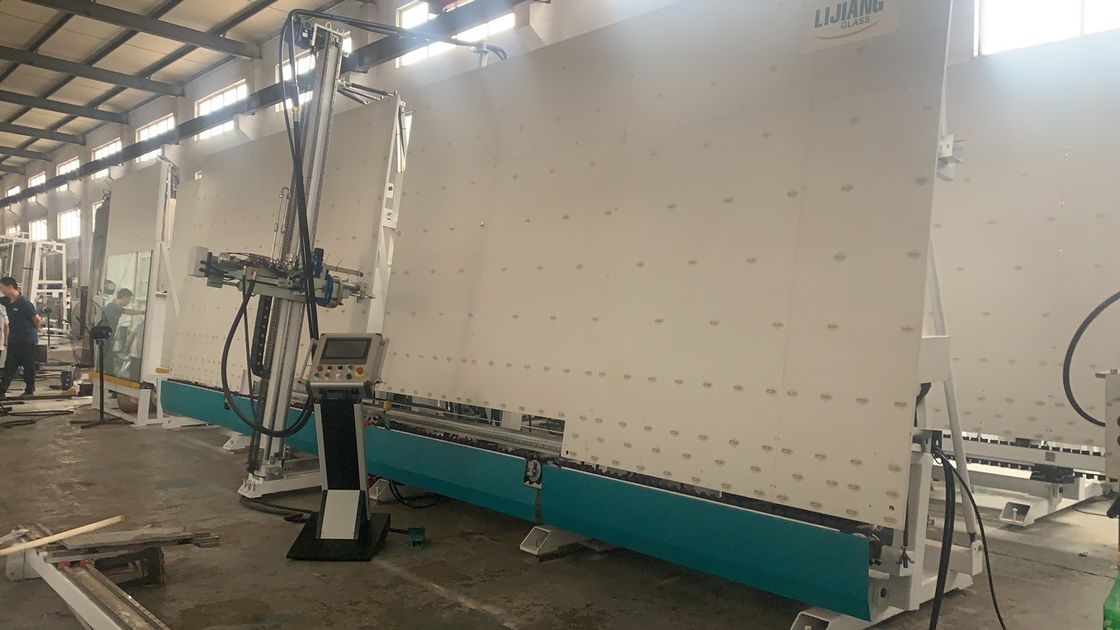

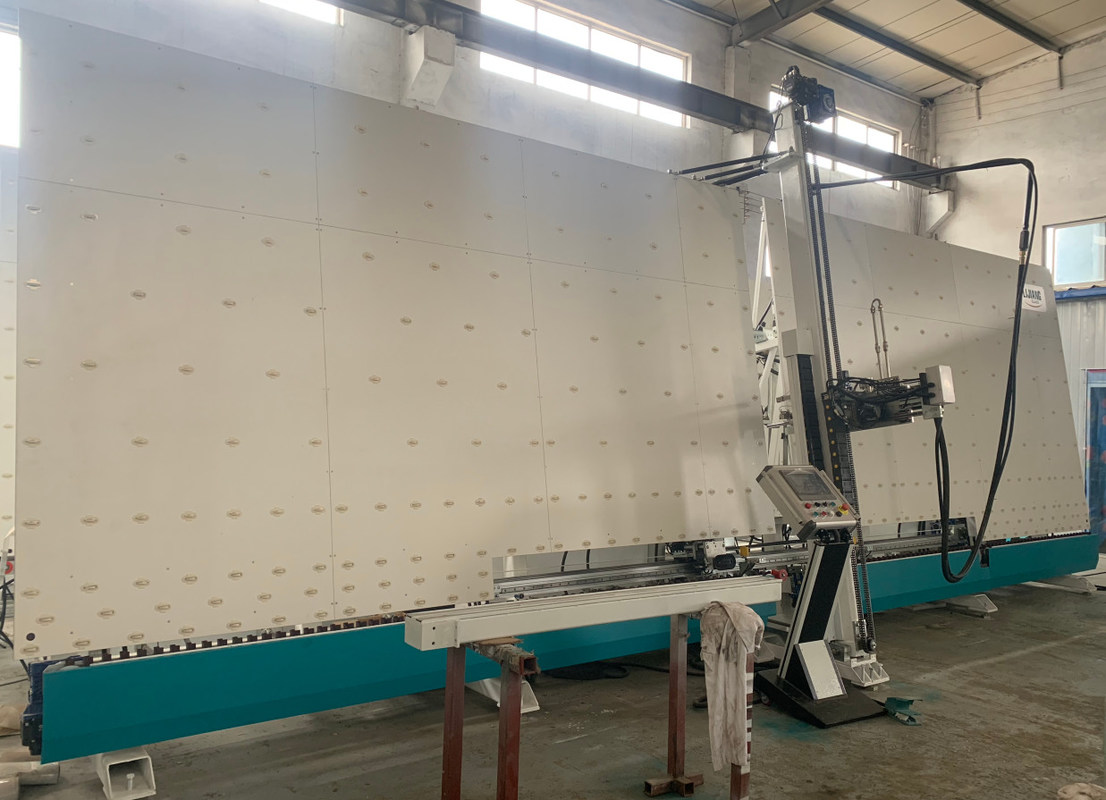

Automatic Insulating Glass Sealing Robot With Two Sealants Pumps Coating Glue
Full automatic insulating glass sealing robot machine is used to seal the second glues during making insulating glass units. The sealing robot has the same method with coating glass, however, the sealing robot used servo mortor and PLC to control the whole working, it improves working efficiency. The sealing robot can out put 500 - 800 pieces per day in 8 hours.
Specification of Insulating Glass Sealing Robot:
Model | LJTJ2540 |
Voltage Power | 415V 13KW |
Air Pressure | 0.5~0.7Mpa |
Extruding pressure | 32Mpa |
Max.Glass size | 2500*4000 |
Min.Glass size | 400*300mm |
Glass thickness | 12~56mm |
Working speed | 5~40m/min |
Overall dimension | 11000*3600*3500mm |
Machine Noise :
A-weighted sound pressure level | |
Stand-by state | Working state |
50 db | 85 db |
Function and feature of Automatic Insulating Glass Sealing Robot :
1.Insulating glass sealing robot machine is suitable for glass deep processing enterprise ,high automation, Reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ), two kinds of sealants switch fast ,in one-button operation easily (Model II)
5.The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively
7.The smallest insulating glass size can be processed is 300*300mm
8.Equipped anti blocking device in the mixer
9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
13.Suitable for triple glazing .
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly
Operating notes:
When start working ,it need to wait the hydraulic pressure is stable ,then start extruding sealant on the first glass so as to avoid sealant output not stable.
Related products of LIJIANG GLASS
Automatic Aluminum Spacer Bending Machine With Printing Logo Function
Technical data of spacer bending machine :
Max. bending size | 2000mm*2000mm |
Min. bending size | 250mm*200mm |
Aluminum spacer width | 5.5-27mm |
Dimensional error | ±0.5mm |
Angle error | ±1º |
Processing speed | 17s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
Electrical parameters of spacer bender machine :
NAME | ORIGIN | BRAND |
PLC | Germany | SIEMENS |
Servo driver | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
Low voltage component | Germany | SIEMENS |
Triplet | Taiwan | AIRTAC |
Cylinder | Taiwan | AIRTAC |
Relay | Japan | OMRON |
Sensor | KOREA | AUTONICS |
Touch screen | Taiwan | WEINVIEW |
Guide | Taiwan | TBI |
Solenoid valve | Taiwan | AIRTAC |
Switch power | Taiwan | TEND |
Main features of the automatic spacer bending machine :
• Siemens 1200 PLC control system with fast working speed
• 4 groups of storages (2 or 12 groups of storages can be optional)
• Automatically cut and feed aluminum spacers
• Automatically avoid the pins while bending and cutting
• Bend spacer frames continuously
• Aluminum spacers are available in sizes of 6A-27A
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer
• Connect to ERP system (Optional)
• USB input function, read the excel format file directly
• Automatically drill holes for filling argon gas (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)
Our products mainly include: IG line series; Automatic sealing robot series; Low-e film edge deletion machine; Spacer bending machine series; Butyl extruder machine series; Desiccant filling machine and other auxiliary insulating glass machines. About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.
In 2016, we won the title of Jinan Golden Seed Enterprise and government subsidy by virtue of the first fully automatic butyl extruder machine with six axis independently developed.
In 2018, we won the title of national high-tech enterprise. During this period, we cooperated with many famous universities and the 53 Research Institute of the Ministry of ordnance industry to develop high-tech products.
Our corporate vision:
To make glass processing simpler and more intelligent, to be a high cost-effective specialty in the glass machinery industry, to better feed back and serve our customers, employees and society with better products and better services, and to make our life better!
