Hollow Glass Silicone Rubber Extruder Machine Insulating Glass Silicone Sealing Robot

Insulating glass sealing robot Hollow Glass Sealant Sealing Machine insulating glass silicone sealing robot

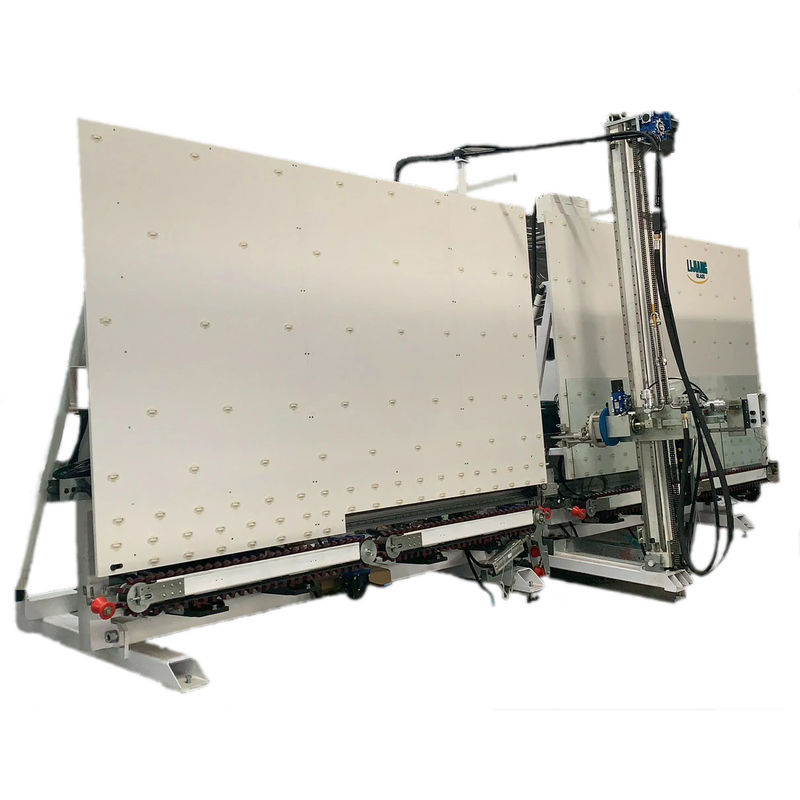

Automatic Insulating Glass Sealing Robot Machine

sealant dispensing equipment ,silicone extruder machine,sealant dispensing machine,insulating glass sealant,polyurethane sealants,small extruder machine,

Sealing machine :

Automatic sealing robot

Manual sealants spreading machine with two pumps for silicone sealants

Polysulfide sealnats

Silicone structure sealants

Polyurethane sealants

Main features of the sealing machine:

1) Friendly man-machine interface is concise users will be more convenient to operate.
Touch screen (the language can be designed as customer's demands)

2) This system has the thickness detection device and depth detection device by the high resolution sensors. Combined with automatically sealing function and adjusting the volume of the glue, it can greatly improve the efficiency of production. The sealant supply system is from Taiwan AIRTAC.

3) The special mixer is equipped, and making the black sealant and white sealant mix well.

4) The system has two sets of sealing system (optional), to change glue easily during production.

5) This system can be used in triple glazing glass. Firstly, it glues for the first space, when it finishes, the rubber head will adjust the angle for gluing the second space.

6) The V belt can adjust automatically according to the thickness of glass. Accurate synchronous belt transmission system to ensure the glass to move stably and clearly.

7). Rubber head pressure device can adjust glue head moving cylinder pressure through the precision of electric proportional valve to make the glue head attach the glass more smoothly. The structure of centering rubber head can adjust the rubber head according to the thickness of glass to ensure the effect of the gluing. The sealing of all edges and corners enriches no air bubbles, fully coating, without manual trimming.

8).The system has the "connection" system. The "connection" means that it can combine the production line with the sealing system to improve the production efficiency.

9).The cleaning function: When it is used for a long time or not used, the worker must clean the rubber tube (blunt glue) to avoid solidifying the rubber tube. When the worker adopts the cleaning function, the glue in the rubber tube will be discharged to avoid solidifying and protect rubber tube.

10). All components are high standard to be sure that the machine can be used stable for a long time.

11).The edge of glass is full without airline, and the corner is enriched without repairing it.

12) The third section stores the glass.

13) Single / double glue supply system can be selected.

The single glue supply system is equipped with one set of A pump and B pump, which is suitable for a kind of sealant. Double glue supply system is suitable for two different kinds of sealant. Polysulfide, silicone, silicone structural and polyurethane sealants are all suitable for this machine.

• Japan Yaskawa servo system control, 8 sets of servo control system, full automatic and high-efficiency sealing machine

• 4 sections, can storage glass

• Adopt timing belt, smooth transfer and accurate position

• Automatically repair glass corners with scraper and roller

• Automatically measure glass size, glue depth (30mm)

• Every auto-function is with manual operation

• Can use silicone, polysulfide and silicone structural sealants

• Glue head is in the front of the machine, which is easy for coating step glass

• Can be connected with insulating glass processing line

The glue head can ne in front of the machine, which is easy to seal step glass and connest with IG line

Optional functions and specifications:

1. 2000mm*2500mm / 2500mm*3500mm / 2500mm*4000mm (Large size can be customerized)

2. Triple glass

3. Step glass ( 3 or 4 sided step glass )

4. Shaped glass

5. Two sets of sealing pumps with dual gluing head

6. Colors can be changed

7. Machine length can be changed

8. With code scanning function
