Product Details:
|
| Name: | Small Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Speed: | 0-47m/s | Brand: | Siemens |
| Aluminum Spacer Width: | 6A-27A | Diameter Of Butyl Cylinder: | 200mm |
| Power: | 380V,5.7kw | Dimension: | 2800*700*900mm |
| Weight: | 650KG | ||
| High Light: | glass sealing machine,silicone extruder machine,47m/s Sealant Extruder |
||

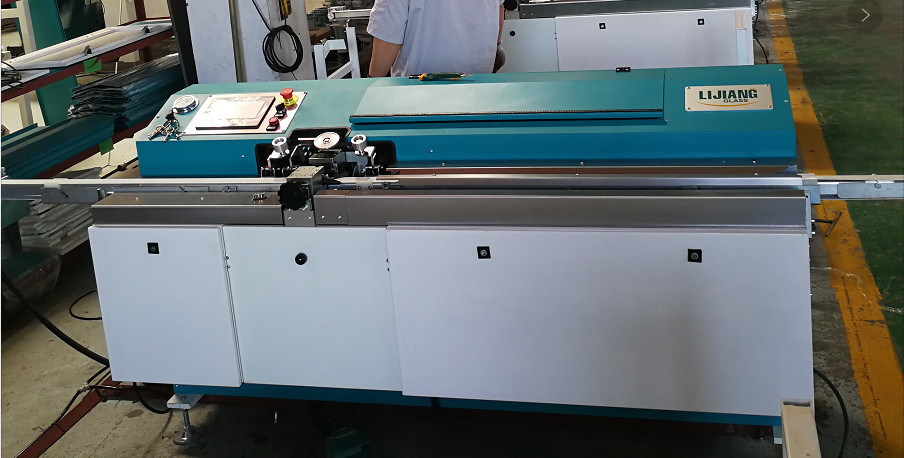

Product overview of Small extruder machine
Automatic Butyl coating machine is used for coating aluminum spacers with butyl.Butyl extruder machine is suitable for square, rectangular, shaped, arc and kinds of aluminum frames.
Technical Data of Butyl coating machine
| Aluminum spacer width | 6A-27A |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Air pressure | >0.6MPa |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Dimension | 2800*700*900mm |
| Total power | 380V, 5KW, 50HZ |
The feature of Butyl Extruder Machine
1.Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
2.Automatically measure the width of frame, the distance of nozzle can be adjustable.
3.Continuous, precise butyl glue coating
The amount of butyl rubber coating can be measured accurately and in volume according to actual needs.
4.Glue cylinder of Butyl coating equipmen adopt the upright structure, easy to change butyl.
5.Butyl extruder machine adopt Siemens brand,stable performance.
6.The coating machine can be Quickly speed of warming,Up to 47m / min,improve work effect.
7.Butyl extruder have Extruder head height adjustment structure for glue to leave blank
8.The coating machine can Filter out debris automatically through auto exhaust, keep spreading quickly and evenly without bubbles.
Company Introduction
Jinan Lijiang Automation Equipment Co., Ltd. is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions.So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
Related products
Smart Vertical Edge Deleting Machine LJDM2545
LJDM2545 smart vertical edge deleting machine is used to delete the edge film of the Low-e glass. High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation.
Main feature
• Two-way glass access
• Automatically measure size
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
