Product Details:
|
| Name:: | Glass Sealant Sealing Robot | Mode: | LJTJ2045 |
|---|---|---|---|
| Max.glass Size: | 2500*4000mm | Min.glass Size: | 400*300 Mm |
| Glass Thickness: | 12-56 Mm | Air Pressure: | 0.6-0.8 MPa |
| Voltage: | 380v | Power: | 15 Kw |
| Weight: | 5000kg | Overall Dimension: | 8700*2500*3500 Mm |
| Working Speed: | 5-40 M/min | ||
| High Light: | 56 Mm Glass Sealing Machine,12 Mm Glass Sealing Machine,56Mm Insulating Glass Sealing Robot |
||
Glass automatic sealing robot glass sealing robot for silicone insulating glass sealing robot

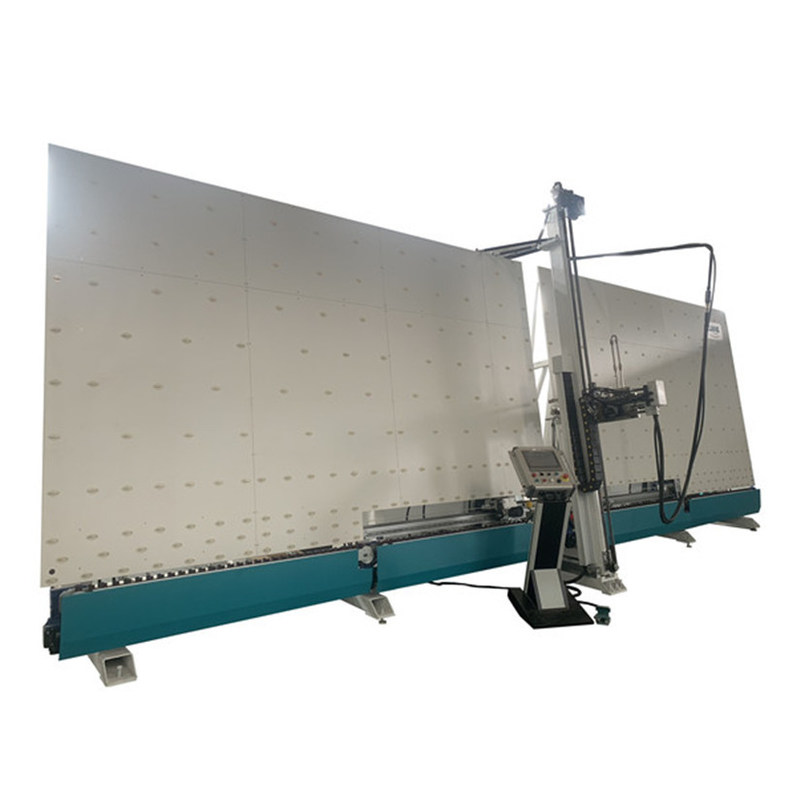

Automatic Vertical Insulating Glass Sealing Robot for glass processing
Automatic insulting glass sealing robot is used for the second sealing procedure of the hollow glass. Silicone glue, polyurethane glue or polysulfide glue are applied around the hollow glass to play the second sealing role and to maintain the stability of the structure.
Main feature
It is composed of raw material pump,solidification pharmaceutical pump,proportional pump, sealant-mixture system,hydraulic pressure system,electric system and so on.
Raw material pump,solidification pharmaceutical pump and proportional pump adopt the special high-pressure filling pump and the materials can be supported equivalently in two-way.The raw material pump is compelled by the hydraulic pressure sysem while the solidification pharmaceutical pump is compelled by the pheumatic motor.
There are high-pressure valves in the underpart entrance of solidification
Application
1.Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
2.Glass sealing machine adopt timing belt to keep smooth convey with accurate position
3.Automatic Hollow glass sealing spreading machine adopt 8 servo motors
4.Automatically measure glass size, glue depth and glue speed with linear adjustment
5.New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
6.Full automatic and high-efficiency machine,Automatically repair glass corners with beautiful surface,Smooth convey without scratch and pollution
7.Single-function parts are equipped with manual functions, easy adjustment
Technical parameter
| Max.glass size | 2500*4000mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.5-0.7MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 8000*1500*3500mm |

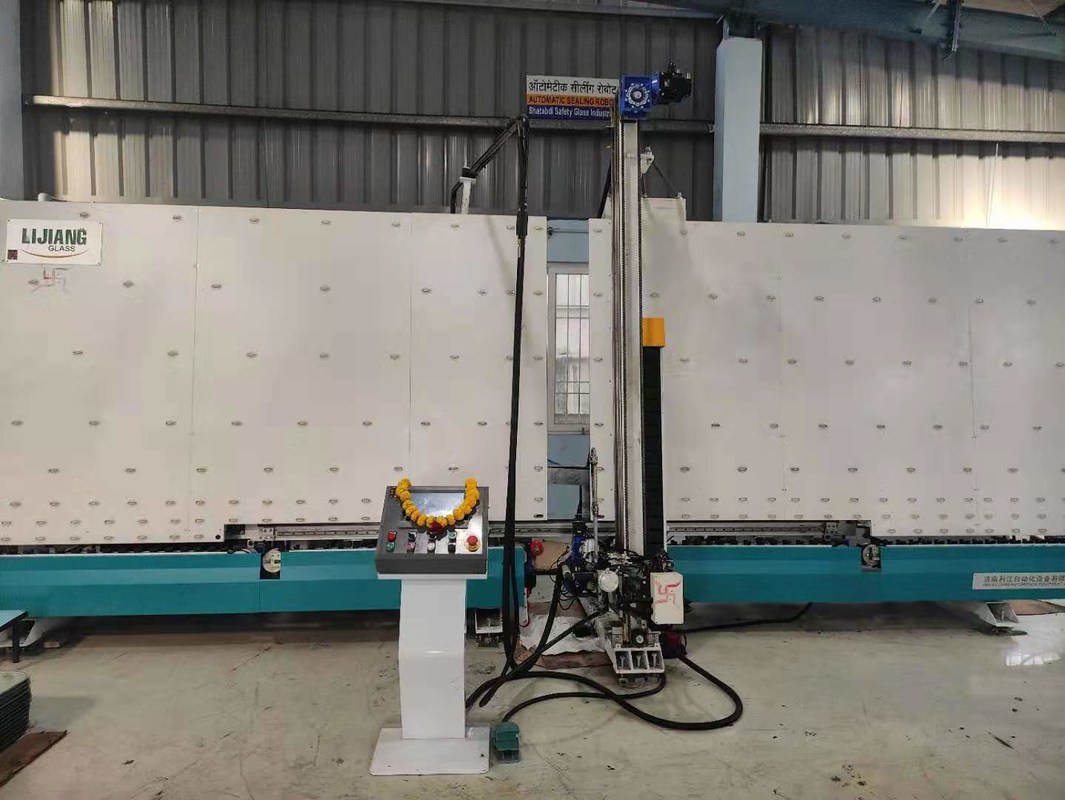

Detail pictures
