2000mm Rotating Glass Turning Table For Sealant Extruder With Rollers

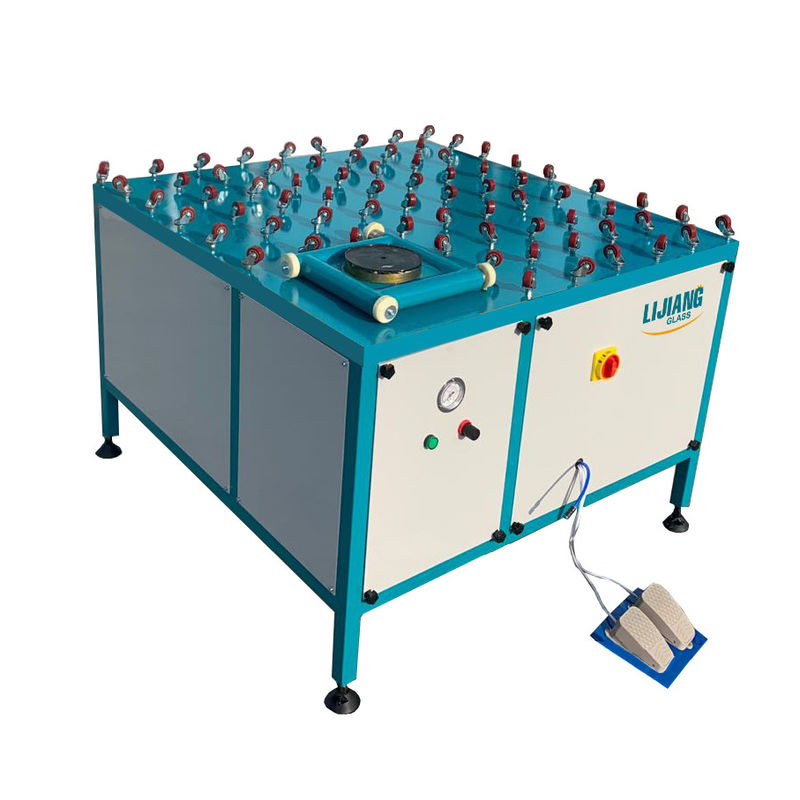

Large Image : 2000mm Rotating Glass Turning Table For Sealant Extruder With Rollers

Product Details:

Place of Origin:	JINAN CHINA
Brand Name:	LIJIANG GLASS
Certification:	CE
Model Number:	LJSK02

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 1000 - 3000 per set
Packaging Details:	Wooden box
Delivery Time:	7 days
Payment Terms:	L/C, T/T
Supply Ability:	200 sets per month

Contact Now

2000mm Rotating Glass Turning Table For Sealant Extruder With Rollers

Description

Production Name:	Rotaing Table Turning Table	Application:	Using For Coating Hollow Glass
Using:	For Manual Sealants Spreading Machine	Max Glass Size:	1500mm*1500mm
Optional Size:	2000mm*2000mm	Warranty:	1 Year
High Light:	2000mm Rotating Glass Turning Table , Sealant Extruder With Rollers , 2000mm Sealant Extruder

Glass Sealing Rotating Table Glass Turning Table With Rollers On Racks for insulating glass sealing

Usage of Rotating Table Machine For Turning Glass When Coating Sealants

Rotated sealant-spreading table is last preface of creation insulation glass or act wall glass. It is a rotated table for draw double group gum. It can proceed 90°Integral times rotated,also can proceed face or contrary rotated. Revolve and vacuum sucker have auto control equipment, it can combine glass size freedom choice sucker and stretch arm control. Stretch arm of Special creation can guarantee the top flat surface on a flat surface. This rotated sealant-spreading table is rotated steady; Break down low, prop up the stability. It is an ideal equipment to create insulating glass.

Main features of glass rotating table:

• Easy operating, simple and flexible

• It is used for fixing and rotating glass when manual coating the outside of IG glass

• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass

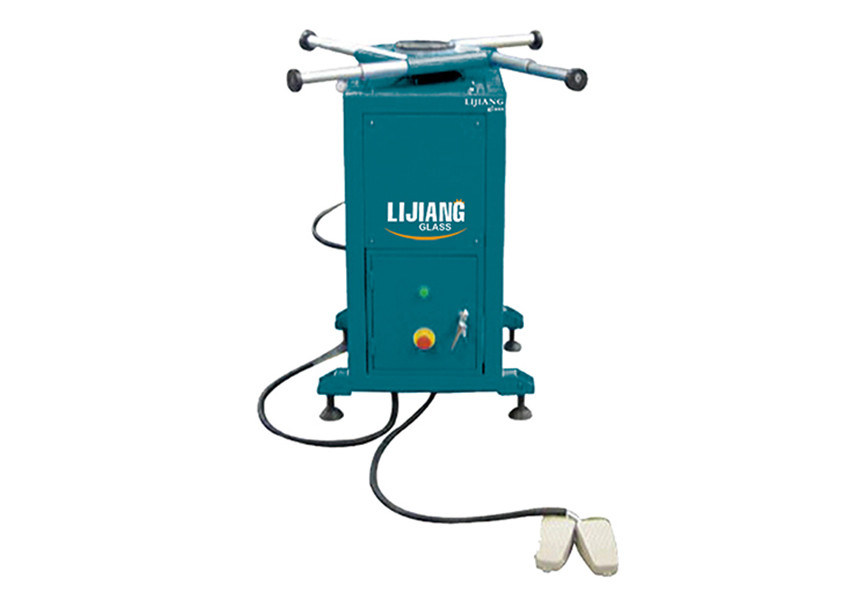

2000mm Rotating Glass Turning Table For Sealant Extruder With Rollers 0

Technical data of Glass Turning Table

Power supply	380V 50Hz
Total power	0.37kw
Operating dimension	1500*1500mm /
Dimension	600550985mm

Maintenance :
1. New machine through revolving of a period of time after, should open the plank, check whether each tight firmware loosen or not moves, laying equal stress on the new tight.
2. Make to complete each time, want to clean dust and gum clearances of the machine, combine to cover the turn over dish, keep dust from falling into sucker.
3. Prop up set and prop up the pole should periodically draw the lubrication grease, resisting rust.
4. The periodical check electricity connects whether line loose or not moves, and connect the dependable of the ground.

Attention :
1. When tune up to prop up the tight in a bolt for and glass contact even empress, must will prop up a top, prop up otherwise the pole turns to move, prop up, the round escapes from the glass, will produce the glass move the phenomenon.
2. Big sucker in usage, doing not want will enter the barometric dint adjusts of over high, otherwise the vacuum a glass for too bigger, being usage thickness is thinner, easy is ground the glass.

Main construction :

This machine include Adjust flat bottom,Prop up,Revolve to prop up the device,Spread to move the device, spirit carries control system, electric appliances control system and plank.

1.1 Revolve prop up the device

Revolve prop up the device include the prop up,prop up the pole,prop up set,big sucker, small sucker.

1.2 Spread to move the device

This device consisted the Spread to move the deceleration electrical engineering,decelerate machine and chain round.

1.3 Spirit carries control system

This system included the Spirit source processor, electromagnetism valve, singled direction valve and vacuum occurrence machine, pass the system control the matches of the size sucker.

Related products of LIJIANG GLASS

Rotary glue-coating table is auxiliary equipment of trough aluminum insulating glass production line. It is used in conjunction with a two-component glue dispenser. It is mainly used in the process of filling the glass periphery with two-component glue after the hollow glass covering is completed. Through the lifting, rotating, positioning mechanism to achieve the positioning of the glass, surrounding glue, removal and other processes. High degree of automation, reliable performance and convenient operation. It has a gas stop protection function to ensure that the gas plate does not fall in the lifted position when the gas stops.

Size Information

			Item.

			Spec.

			Power supply

			380V 50Hz

			Total power

			0.37kw

			Dimension

			600mm*550mm*985mm

			Max. glass size

			2000*1500mm

			Min. glass size

			200*200mm

			Molding pressure

			0.5t

			Air pressure

			25Mpa

			Max. pressure

			0.5-0.8Kn

Sharp Glass Edge Grinding Machine With Grinding Belts And Grinding WheelsMain feature of Edge finish machine LJKBM95
It is used for polishing single glass, to prevent to hurt workman from sharp glass edge
It adopts type of ‘x’ to polish the up and down edge at the same time
Easy operating, simple and flexible
Technical data :

			Power supply
			380V 50Hz

			Total power
			3kw

			Dimension
			2000*1200*820mm

Aluminum frame transfer machine LJSKJ02
Main feature of the spacer frame transfer machine
Spacer frame transport
Easy operating, simple and flexible
Technical data

			Power supply
			380V 50Hz

			Total power
			0.18kw

			Dimension
			2520*3012*3000mm

Molecular sieve filling machine LJFGJ 03

Main feature
Can effectively seal the desiccant,to keep dry
Manual filling desiccant into spacer frame
Recyclable
Easy operating, simple and flexible
Technical data

			Power supply
			220V 50Hz

			Total power
			1kw

			Dimension
			2490*400*2200mm

Cantilever crane LJXJ300 / 400 / 500 / 900 kg

			Max. load
			300kg (500kg is optional)

			Rotated angle
			90°

			Upright height
			3400mm or 3900mm

			Rail length
			1000mm

			Quantity of sucker
			2 or 4

			Air pressure
			0.5MPa-0.8MPa

Company introduce:
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD
Address: Block B 1307, Green Square, Huaiyin District, Jinan, China
Tell : 0086 0531-85960498 Fax : 0086 0531-87562846
Salesperson: Hermione (+86 18353163989 / +86 13001733235)
Email: sales01@lijiang-glass.com
Website : www.lijiang-glass.com / www.insulatingglassproductionline.com
After sales service:
a.Warranty: One year( The wearing parts and grinding tools are out of this range) guarantee the perfect working condition by normally replacing for wearing parts, electric parts and some other parts under the proper operation.
b.LIJIANG has its own after service system. And it can be divided into 3 situations.

① After the machine arriving customer’s factory,LIJIANG can send its engineer to the customers’ factory for machine installation, adjustment and personnel training for free.But the round-trip air ticket, and accommodation will be born by the customer.

② During the warranty period (one year), if there is problems with the equipment and the customer requests the LIJIANG engineer to repair in the factory. The customer is responsible for the round-trip air ticket , no maintenance fee and no spare parts cost (except wearing parts).

③ Outside the warranty (one year), if the equipment appears problems, the customer request LIJIANG to send engineers to the factory for maintenance.The customer should be responsible for round-trip air tickets and accommodation.Also customers need to pay for the LIJIANG daily $150 as service and maintance costs, and all parts must be completed paid before the delivery.
