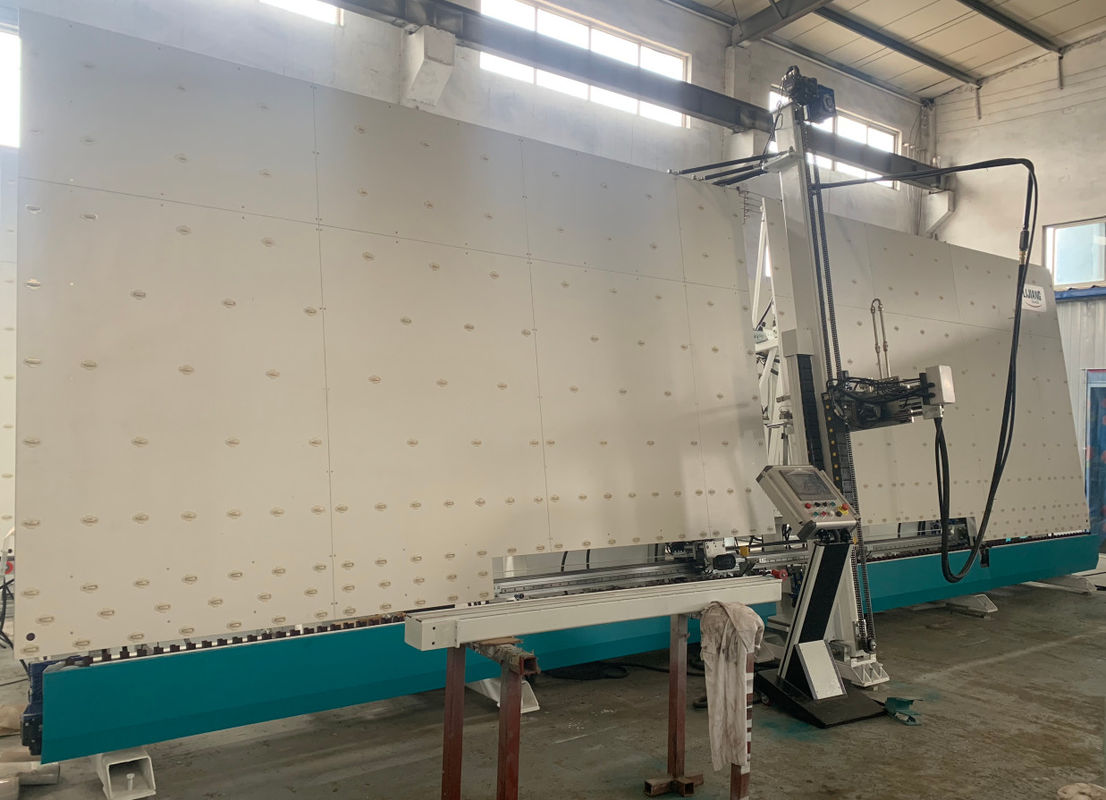

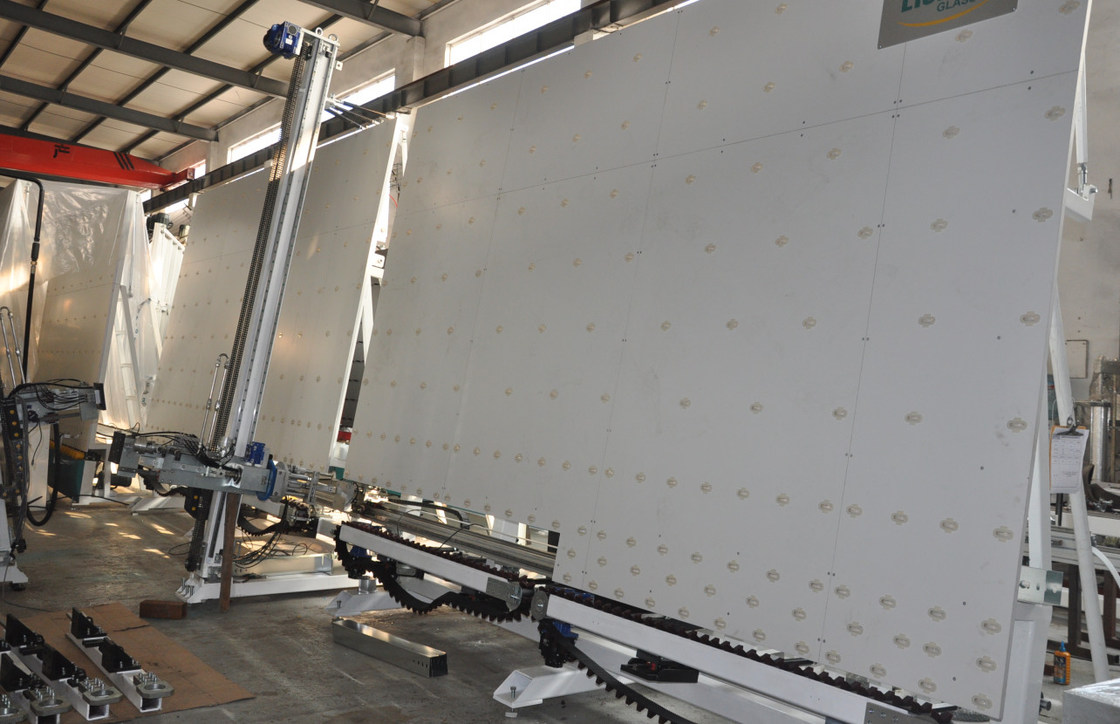

Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing

Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing
Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing

Large Image :  Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJTJ2025
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 20set/month

Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing

Description
Name: Full-Automatic Vertical Insulating Glass Sealing Robot Max Size: 2000*2500mm
Advantage: Easy For Different Shap Glass Min Glass Size: 400*300mm
Glass Thickness: 12-56mm Voltage: 380V 50Hz 3P
High Light:

Vertical Insulating Glass Sealing Line

,

Double Glazing Insulating Glass Sealing Line

,

Double Glazing Glass Sealing machine

Full-Automatic Vertical Insulating Glass Sealing Line with max glass size 2500*4000mm









►Application of insulating glass sealing robot

l Min & Max glass sizes can be optional

l Adopt 8 servo motors

l Adopt Japan ANCHUAN servo control system with stable performance

l Automatically measure glass size, glue depth and glue speed with linear adjustment

l Adopt timing belt to keep smooth convey with accurate position

l Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working

l The glass corners are full without air bubbles, smooth surface, no need to

l Full automatic and high-efficiency machine

l New scraper design, especially for making train IG with very even sides and corners, without any bubbles.

l Automatically repair glass corners with beautiful surface

l Smooth convey without scratch and pollution

l Single-function parts are equipped with manual functions, easy adjustment

l Shaped IG units (Optional)

l Stepped IG units with four sides (Optional)

l Double and Triple IG units

Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 0

Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 1

Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 2Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 3

Ø Two Sets of Pump A & Pump B

Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.

Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 4Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 5

Ø One Set of Pump A & Pump B

Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.

Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 6

Ø Back Glue Device

When the pressure increasing, more Glue B will flow back automatically, saving materials.



Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 7

Ø Dyad Body Device

The dyad body device has two functions. The left one is used for filtering impurities and moisture when filling gas into , then the right one plays the role of lubrication.



Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 8

Main technical parameter

Max.glass size 2000*2500mm
Min.glass size 300*300mm
Glass thickness 12-56mm
Working speed 5-40m/min
Air pressure 0.5-0.7MPa
Squeeze pressure 32MPa
Overall dimension 8000*1500*2700mm



Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 9

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.



The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.



With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.





Other products of LIJIANG GLASS



LJGZ2020 Desiccant Filling Machine



►APPLICATION

Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.

1, Protection device for machine head.

2, Electrical component are all Germany Brand-Siemens.
3, Machine height can be adjusted according to the size of spacer frame.
4, Desiccant automatically loading from the Materials bucket.
5, Auto drilling, filling and sealing function

►Technical data

Filling aluminum frame’s maximum size 2500mm*2500mm
Filling aluminum frame’s minimal size 300mm*250mm
Article aluminum specifications 5.5-24mm
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1.8KW
Molecular sieve diameter needed 0.5-0.9mm
Dimension 1300mm*1100mm*3650mm





Name Brand Name Brand
PLC German SIEMENS Triplet TAIWAN AIRTAC
Low voltage electrical apparatus German SIEMENS Solenoid valve TAIWAN AIRTAC
Sensor Korea AUTONICS Gas driller Taiwan BOA
Guide Taiwan TBI Switch power Taiwan TEND





Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 10

Protection device for machine head.

Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 11

►All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 12

Electrical component are all Germany Brand-Siemens.

Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 13

►All spare parts have ID Number for offering the convenience in after sales service.

Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 14

Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 15

Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.

1.The desiccant filling machine height of can be adjusted according to the size of spacer frame
2.Desiccant filling Filling time can be adjusted
3.Desiccant filling auto loading and replenish
4.Desiccant filling Auto drilling, filling and sealing function
5.Desiccant filling use Germany Siemens PLC control system
6.Desiccant filling touching screen interface, simple and visible
8.Desiccant filling adopt vacuum pump loading device ,increase the loading speed
9.Desiccant filling can use big bucket desiccant ,save desiccant refill time ,improve the work efficiency



Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 16Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 17Vertical Insulating Glass Sealing Line For Double Glazing Glass Processing 18
