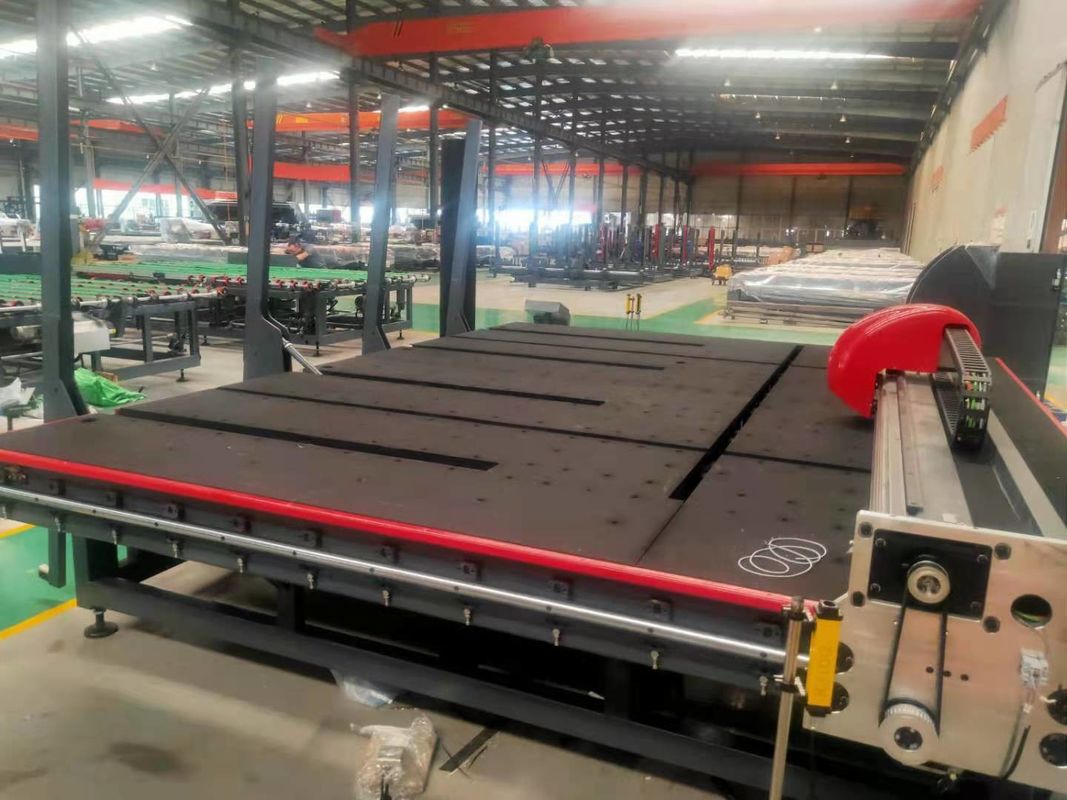

2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine

2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine

Large Image :  2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine

Product Details:
Place of Origin: Jinan City, Shandong Province, China
Brand Name: Jinan Lijiang Glass Machinery
Certification: CE & ISO9000
Model Number: Automatic Horizontal Insulating Glass Washing and Drying Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiated Price
Packaging Details: Wooden Cases Package
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now

2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine

Description
Name: Horizontal Insulating Glass Washing And Drying Machine Type: JLWQ-2500C
Max. Width: 2500mm Min. Size: 400*400mm
Glass Thickness: 3~28mm Working Table Height: 900mm±30mm
Blower Power: 22kw Processing Speed: 0.5~12m/min
High Light:

2500mm Industrial Glass Cutting Machine

,

12m/min Industrial Glass Cutting Machine

,

2500mm Stained Glass Cutting Machine

Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine on Sale
Product Description
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 0
JNLJ-2500C Automatic Horizontal Glass Washing and Drying Machine
JNLJ-2500C consists of in-feed, washing, drying & out-feed section. To make good washing performance and quick air dry, it adopts 3 pairs brushes and 2 pairs air knives with 1pc air blower. It fits for tempered glass, solar glass, laminated glass, Low-e glass or any other flat glass processing.
Advantages & Features
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 1
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 2
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 3
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 4
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 5
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 6
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 7




Characteristics

Horizontal structure, simple operation. The machine frame adopts heavy thickness aluminum alloy to avoid to be out of shape when working for a longtime. With stainless steel water sink and high pressure pre-spraying (high pressure pump) in loading ( in-feed), the rubber roller can pre-wash automatically to clean out the glass powder or scraps. Brush: The top and bottom brushes transmit by 1 motor respectively. Water tank (with heater): 2 water tanks total, 1 for pre-wash, another for washing section. Blower: Low noise and vibration. Conveying adopts frequent converter, digital display and convenient operation, which do good to connect with double edging line, hollow glass line, safety glass line, etc. Table rollers adapt superior rubber and transmitted by gear wheel which makes a stable working. Side covers and tanks and any other water touched material adopt stainless steel 201. Washing and Drying section can be lifted to Max. 400mm by adjustment on electrical board with 4 legs(corners) increasing through motors and encoder. 2 pairs air knives adopt advanced technique device, large power and quick air dry.
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 8



The Aluminum Alloy Structure
The whole cleaning equipment adopts aluminum alloy assembled tripod, which is stable and durable, not easy to change. The surface of the aluminum alloy aluminum profile adopts negative oxidation treatment, which is not easy to be corroded by water.
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 9



The Water Tank Adopts #201 Stainless Steel
The water tank, the shield and the place in contact with the water are made of #201 stainless steel, which is harder than #304 stainless steel and contains high manganese. Chromium-rich oxides will be formed on the surface of the steel body to protect the steel body from water rust
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 10



The Gear Transmission
The equipment adopts gear transmission as a whole, and the transmission efficiency is high, generally η=0.94～0.99; the transmission ratio has a wide range, especially when planetary transmission is used, the transmission ratio can reach 100-200 (single-stage), which is suitable for deceleration or Speed-increasing transmission; reliable operation and long service life.
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 11



The Lifting System
The lifting system is driven by a servo motor, driven by a lifting screw, and combined with a gear drive. It has the characteristics of low friction loss, high transmission efficiency, and high axial rigidity. In addition, the starting torque of ball screw pair is Smaller, there will be no crawling phenomenon like sliding motion, and it can ensure the realization of precise micro-feed and high-speed feed.
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 12



The Rubber Roller Transmission
The feeding port and the discharging port of the equipment adopt frequency conversion transmission, and the operation screen is displayed for easy operation. The rubber roller is made of high-quality nitrile rubber, driven by gears, and runs smoothly. It can be connected with edging line, hollow line and laminated line for data connection and unified control.
2500mm Automatic Industrial Glass Cutting Machine Stained Glass Cutting Machine 13



The Imported PLC Control System
The PLC control system can be equipped with the Taiwan Delta or Germany Siemens control system according to the actual requirements of the customer. The PLC control system can be directly connected to the network, connecting the loading and unloading CNC robots to achieve a smart factory with integrated operation.
Main Technical Parameter
Item.
Parameter
Max. width
2500mm
Min. size
400*400mm
Glass thickness
3~28mm
Working table height
900mm±30mm
Blower power
22kw
Total power
32kw
Weight
3000kg
Dimension
5700*3300*2500mm
Low-e require
Yes
Water heater
Yes
Processing speed
0.5~12m/min
Processing-speed suggestion as follow:
4mm~8mm thickness, speed suggested to 8-12m/min
10mm~12mm thickness, speed suggested to 4~6m/min
15mm~19mm thickness, speed suggested to 2-3m/min
20mm and more, speed suggested to 0.5-1.5m/min
Item.
Spec.
Main machine frame
Aluminum alloy + steel, no deformation.
High pressure pump
China famous brand: Shanqing
Frequency converter of conveying
China famous brand: Kailida
Brush motor
China famous brand: Jinxing
Bearing
China famous brand: HRE
Electrical Appliance
Schneider
Rubber roller
NBR Perduran(sour liquid forbiddion), stainless steel 304 shaft
Water tank, sink, side covers, all parts touch water
Stainless steel 201
PLC
Siemens
