Product Details:
|
| Name: | CNC Automatic Glass Cutting Machine | Function: | Loading Breaking And Cutting |
|---|---|---|---|
| Advantage: | CNC Control | Type: | CNC Glass Cutting Machine |
| Max. Glass Cutting Size: | 2800*4200mm | Glass Thickness: | 2-255mm |
| High Light: | 255mm CNC Glass Cutting Machine,255mm CNC Glass Cutting Table,255mm Glass Cutting And Polishing Machine |
||
Automatic CNC Glass Cutting Machine CNC glass cutting table glass cutting and polishing machine
LJSCLM CNC Automatic Glass Cutting Machine glass cutting Line has been comprehensively upgraded by means of introduction of European leading technology, world newest tech and process to eliminate the insufficient performances, incomplete functions and unstable operation from domestic glass loader, moreover,through the precise racks, slide-rails, servo motors and pneumatic elements, it achieves the long-term stable accuracy and fast running with the newest American Galil control system, it features even faster operation, higher safety, higher efficiency, more stability and better accuracy: with the photoelectric positioning, it facilitates the simple and precise operation and prominent labor saving
LJSCLM CNC Glass Cutting Machine
Technical data
| Max. glass cutting size | 2800*4200mm |
| Glass thickness | 2-255mm |
| Cutting speed(m/min) | 0-200 |
| Accurcy(mm/m) | ≤±0.20 |
| Breaking bar(pcs) | 1+2 |
| Total power | 3P 380V 50Hz |
| Dimension | Dimensions :14200x3750x900 ±20mm |
| Total weight | 3700KG |

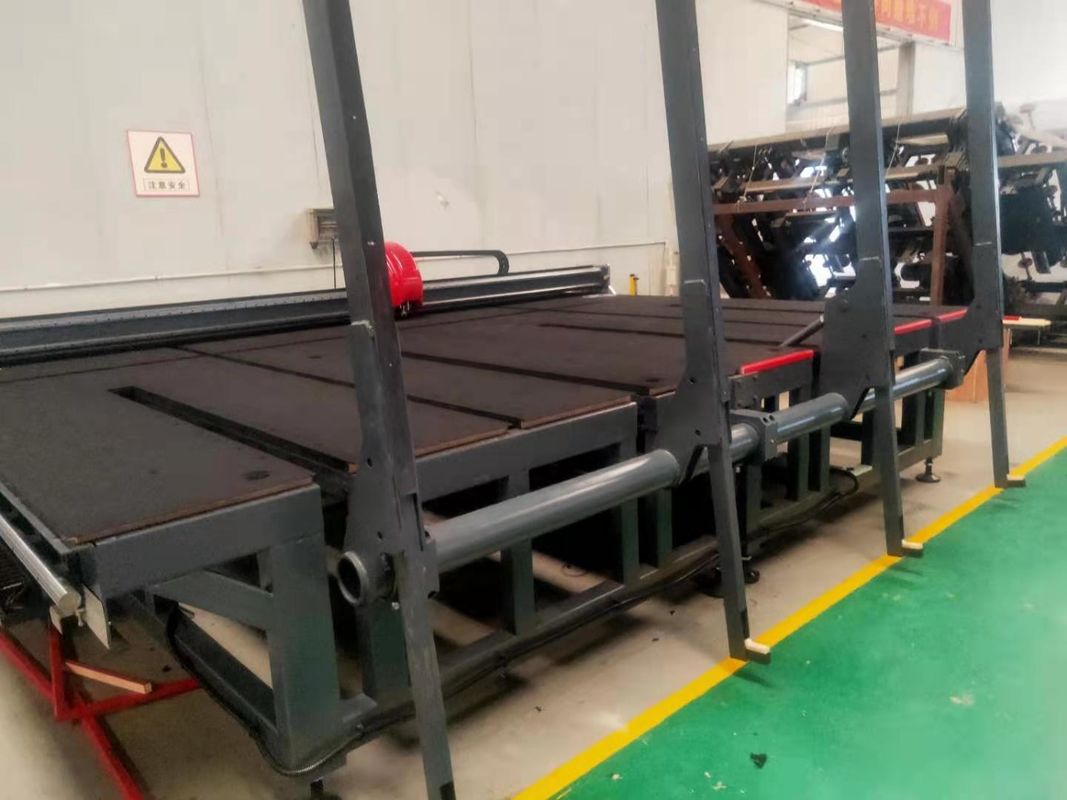

LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line is ready for installation

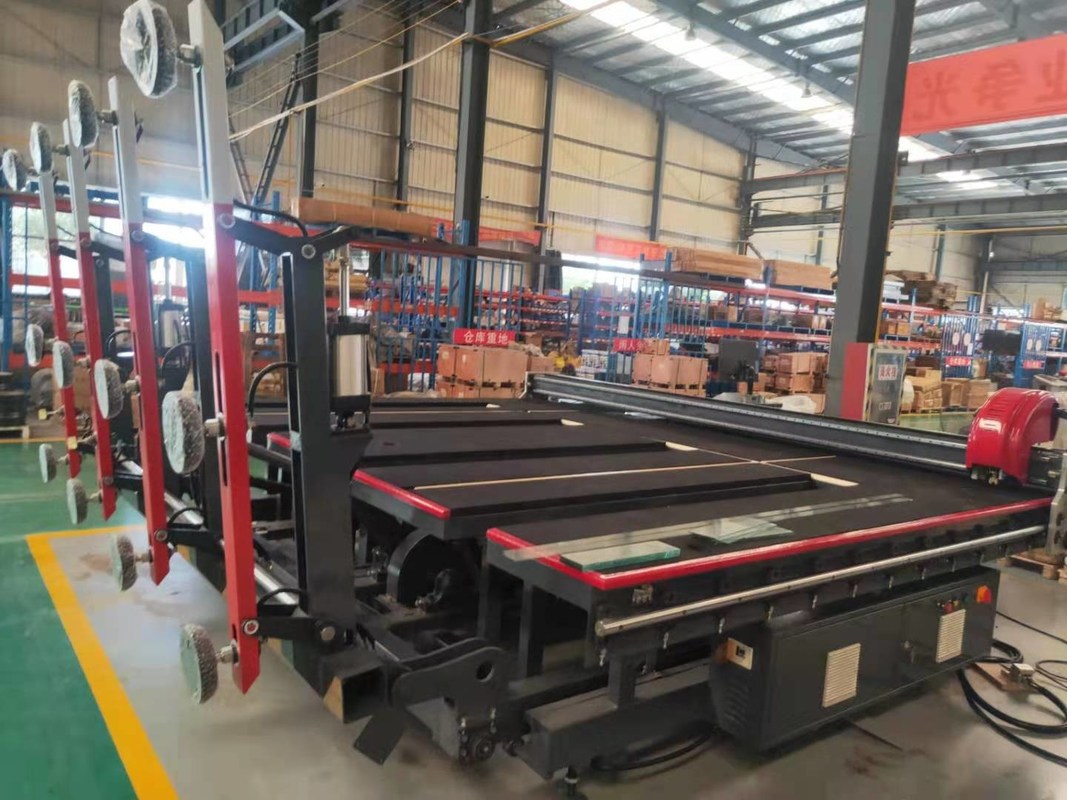

LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line is ready for working in our customer's workshop
LJASP3525 vertical loading table of insulating Glass Machine
A.Technical performance:
1. All main frames of equipment use quality rectangle steel pipe groups of national standard welded and fitted with bolt.
2.Electric control system of equipment use Schneider brand modules of electric; Program control uses imported SIMENS programmable controller, fitted with touch panel.
3.The machine was designed with concise appearance and conforms to the modern factory with safe signs, and reference to the Euro IEC standard from design until manufacture and installation.
| TECHNICAL DATA | |
| Max glass size | 2500*3500mm |
| 2000*2500mm | |
| Glass thickness | 3-12mm |
| Air source | 0.8Mpa |
| Power | 3P 380V/1P+N 220V 50Hz 38KW |
| Machine Size | 3200*2800*1800mm |
| 2600*2800*1800mm | |
B.Mainly technical parameter:
1.Loading max glass size: L X W = 3500 x 2500 mm
Loading min. glass size: L X W = 800 x 600 mm
Glass thickness: (3-10mm)
2.Dimension of loading table approx.:
L X W X H= 3700mm x 2800mm x 2500mm+ bottom support 530mm(±30mm)
3.The vertical loading table uses Servo motor as drive system and all motors with infinitely variable speeds, the transfer speed of this table is 2-35m/min;Loading cycle time: 35S
4.Adopts full-closed loop control system for accurate positioning for the machine and stable running system;Configuration description
5.The tilting arm horizontal movement controlled by Servo motor and precise gear box, gear rack drive;
6.Lifting structure: Servo motor and precise gear box control and synchronous belt drive;
7.The suction cups frame tilting structure: Servo motor and precise gear box control and crank connecting rod drive;
8.Bottom transfer structure, Servo motor and precise gear box control and chain drive.
9. 4 axis all-digital control with precise positioning and speedy flexibility; All speed can be
adjustable according to production line speed.
10.Super HMI monitor the equipment running status and system parameters; It can set data according to different glass rack height and angle and also pre-setting or recording the current shift of production.
11.Vacuum pump system: highly effective mono-block rotary blade type vacuum pump;
Suction cups: Uses imported PF suction cups ￠120MM type
12. Air compress supply:5—7bar,30L/min;Compressed air supply: 5—7bar, 30L / min;
13.Power supply: 380V, 50HZ, 3 phases,
As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatice robot insulaiting glass production line and so on.
Lijiang-Glass specializes in R&D,Founded in 2009, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions.We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world.
