Product Details:
|
| Name: | CNC Automatic Glass Cutting Machine | Function: | Loading Breaking And Cutting |
|---|---|---|---|
| Advantage: | CNC Control | Type: | CNC Glass Cutting Machine |
| Max. Glass Cutting Size: | 2800*4200mm | Glass Thickness: | 2-255mm |
| High Light: | 200m/Min CNC Glass Cutting Machine,High Tech CNC Glass Cutting Machine,200m/Min cnc glass cutting table |
||
Automatic CNC Glass Cutting Machine CNC glass cutting table glass cutting and polishing machine

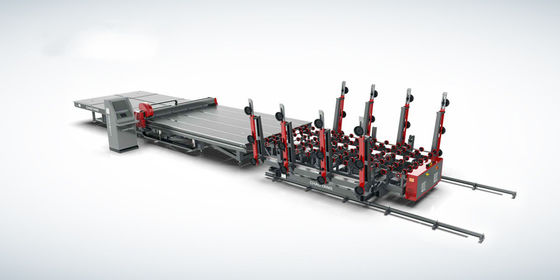

LJSCLM CNC Automatic Glass Cutting Machine The glass cutting line has been extensively updated with the introduction of the leading European technology, the latest technologies and processes in the world to eliminate the insufficient performances, incomplete functions and unstable operation of the home glass loader, also with the precise racks, slide rails, Servomotors and pneumatic elements, it achieves long-term stable accuracy and fast running with the latest American Galil control system, it is characterized by even faster operation, higher security, higher efficiency, more stability and better accuracy: with the light barrier positioning, it enables simple and precise Operation and a considerable saving in labor
LJSCLM CNC Glass Cutting Machine
Technical data
| Max. glass cutting size | 2800*4200mm |
| Glass thickness | 2-255mm |
| Cutting speed(m/min) | 0-200 |
| Accurcy(mm/m) | ≤±0.20 |
| Breaking bar(pcs) | 1+2 |
| Total power | 3P 380V 50Hz |
| Dimension | Dimensions :14200x3750x900 ±20mm |
| Total weight | 3700KG |

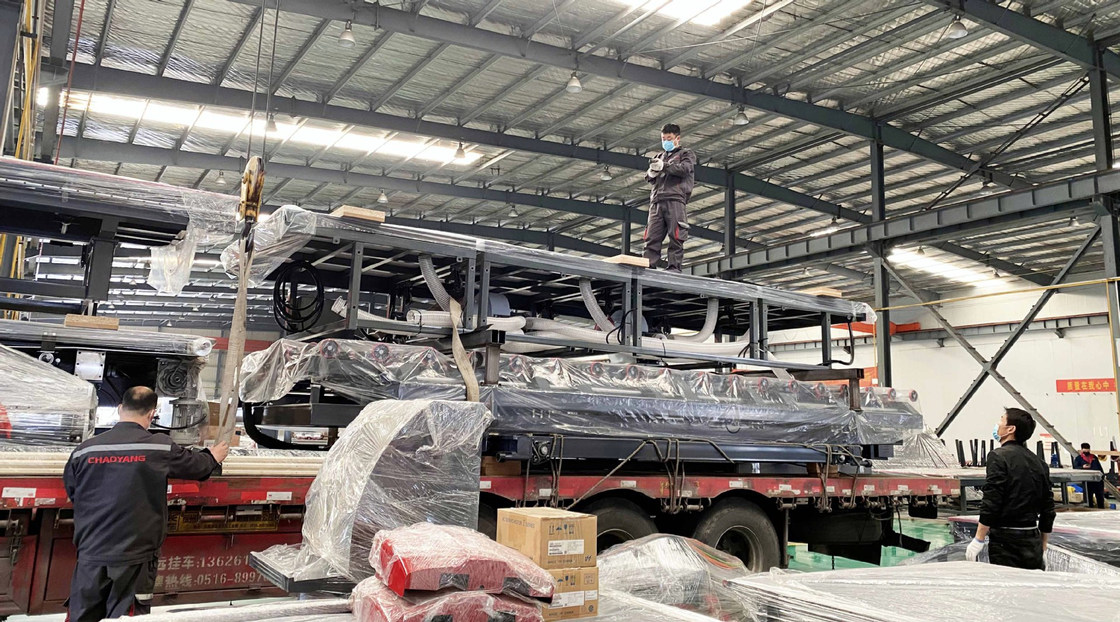

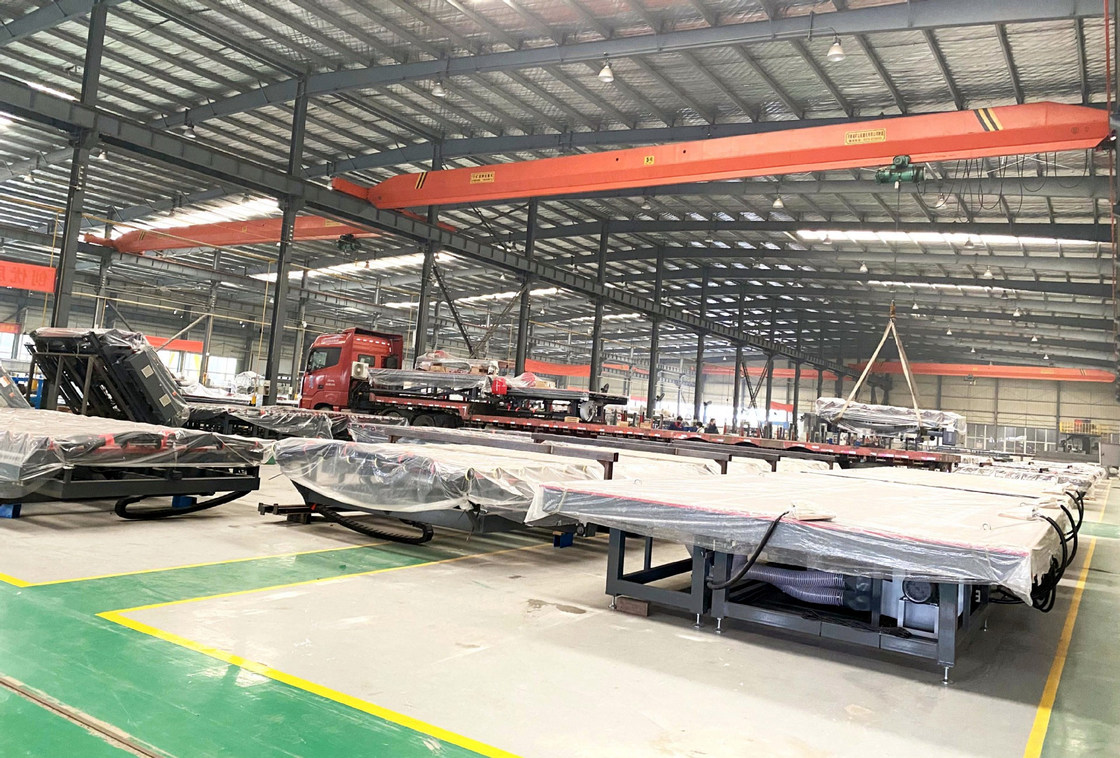

LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line is ready for installation

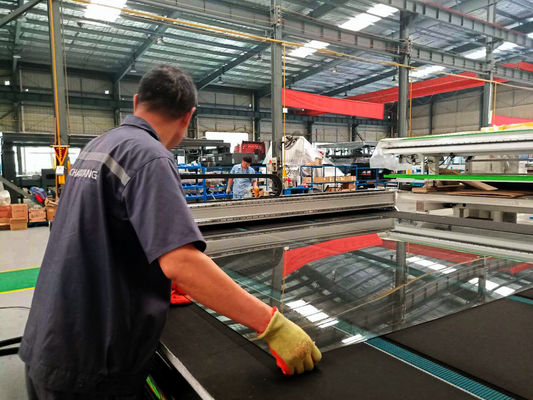

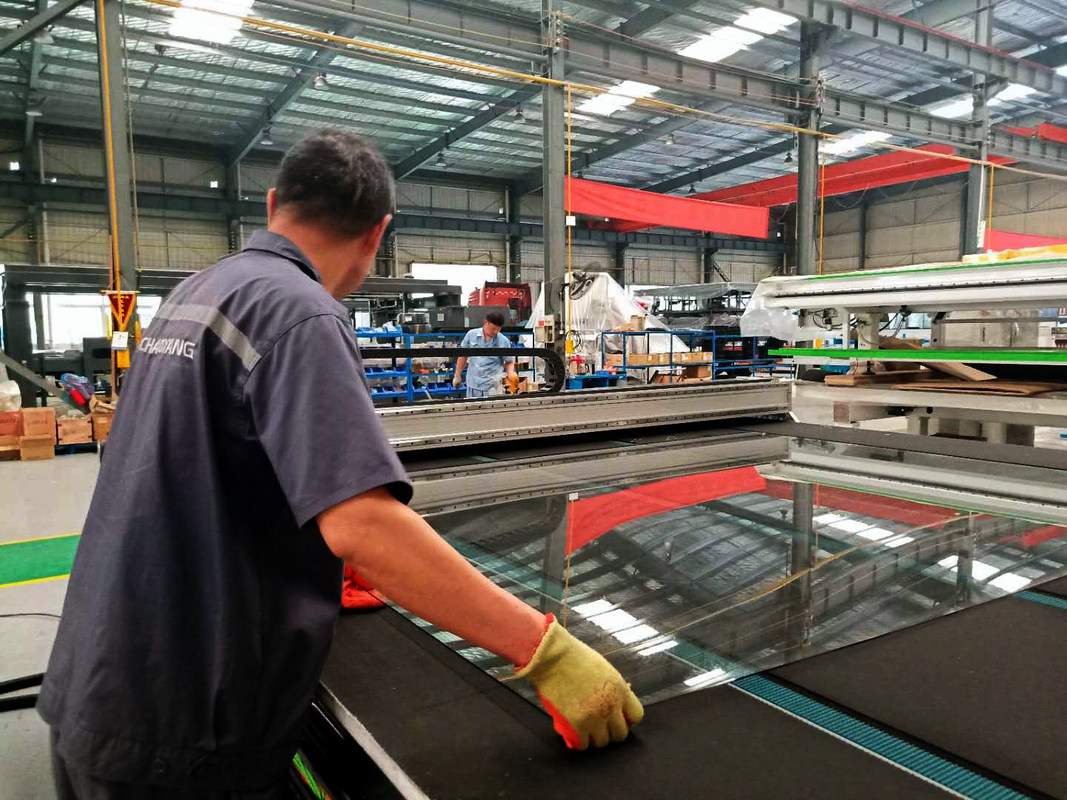

LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line is ready for working in our customer's workshop
LJASP3525 vertical loading table of insulating Glass Machine
A.Technical performance:
1. All main frames of equipment use quality rectangle steel pipe groups of national standard welded and fitted with bolt.
2.Electric control system of equipment use Schneider brand modules of electric; Program control uses imported SIMENS programmable controller, fitted with touch panel.
3.The machine was designed with concise appearance and conforms to the modern factory with safe signs, and reference to the Euro IEC standard from design until manufacture and installation.
| TECHNICAL DATA | |
| Max glass size | 2500*3500mm |
| 2000*2500mm | |
| Glass thickness | 3-12mm |
| Air source | 0.8Mpa |
| Power | 3P 380V/1P+N 220V 50Hz 38KW |
| Machine Size | 3200*2800*1800mm |
| 2600*2800*1800mm | |
B.Mainly technical parameter:
1. Load max. Glass size: L X W = 3500 x 2500 mm
Load at least glass size: L x W = 800 x 600 mm
Glass thickness: (3-10mm)
2. Dimensions loading table approx .:
L X W X H = 3700 mm x 2800 mm x 2500 mm + lower support 530 mm (± 30 mm)
3. The vertical loading table uses a servo motor as a drive system and all motors with infinitely variable speeds, the transfer speed of this table is 2-35 m / min; Charge cycle time: 35S
4. Adopts fully closed loop control system for accurate positioning for the machine and stable running system; Configuration description
5. The horizontal movement of the tilting arm controlled by servo motor and precise gear, rack and pinion drive;
6.Lifting structure: servo motor and precise gear control and synchronous belt drive;
7. The tilting structure of the suction cup frame: servo motor and precise gear control and crank connecting rod drive;
8. Lower transfer structure, servo motor and precise gear control and chain drive.
9. 4-axis fully digital control with precise positioning and quick flexibility; All speed can be
adjustable according to the speed of the production line.
10. The super-man-machine interface monitors the operating status and the system parameters of the plant, the data can be set according to different glass shelf heights and angles and the current production shift can be preset or recorded.
11. Vacuum pump system: highly efficient one-piece rotary vane vacuum pump;
Suction Cup: Imported PF Suction Cup (Type 120MM)
12. Compressed air supply: 5-7 bar, 30 l / min, compressed air supply: 5-7 bar, 30 l / min;
13. Power supply: 380V, 50HZ, three phase,
As a professional insulated glass machine manufacturer in China, excluding materials such as molecular sieve and aluminum spacer and sealant. We're good at designing and manufacturing automatic vertical insulating glass processing lines, vertical low-e glass edge quenching machines, automatic robotic insulating glass manufacturing lines, and so on.
Lijiang Glass specializes in the research and development, production and sales of insulating glass machinery and supporting equipment for glass deep processing and door and window construction. It was established in 2009. With professional processing bases such as insulating glass machinery, aluminum-plastic door and window machinery and related auxiliary materials, it provides the most comprehensive glass processing solutions and door and window solutions for domestic and foreign customers. As of 2019, glass machinery and materials have been exported to nearly 30 countries and regions including America, South America, Europe, the Middle East, and India. We have established a sound international business relationship with 10 powerful agents, and jointly build an internationally renowned brand.
