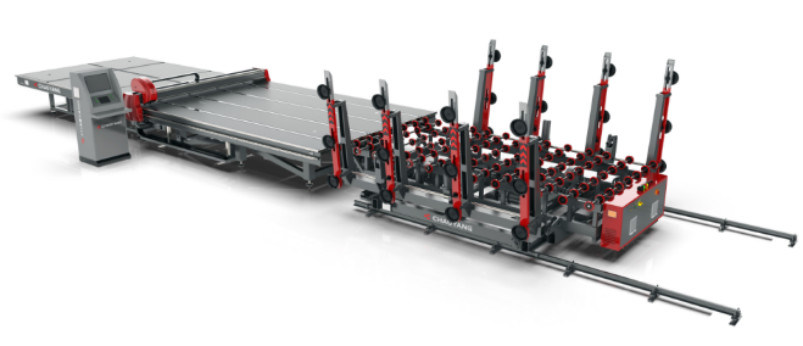

LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line and Horizontal Washer 1600
LJSCLM CNC Automatic Glass Cutting Machine glass cutting Line has been comprehensively upgraded by means of introduction of European leading technology, world newest tech and process to eliminate the insufficient performances, incomplete functions and unstable operation from domestic glass loader, moreover,through the precise racks, slide-rails, servo motors and pneumatic elements, it achieves the long-term stable accuracy and fast running with the newest American Galil control system, it features even faster operation, higher safety, higher efficiency, more stability and better accuracy: with the photoelectric positioning, it facilitates the simple and precise operation and prominent labor saving
LJSCLM CNC Glass Cutting Machine
Technical data
| Max. glass cutting size |
2800*4200mm |
| Glass thickness |
2-255mm |
| Cutting speed(m/min) |
0-200 |
| Accurcy(mm/m) |
≤±0.20 |
| Breaking bar(pcs) |
1+2 |
| Total power |
3P 380V 50Hz |

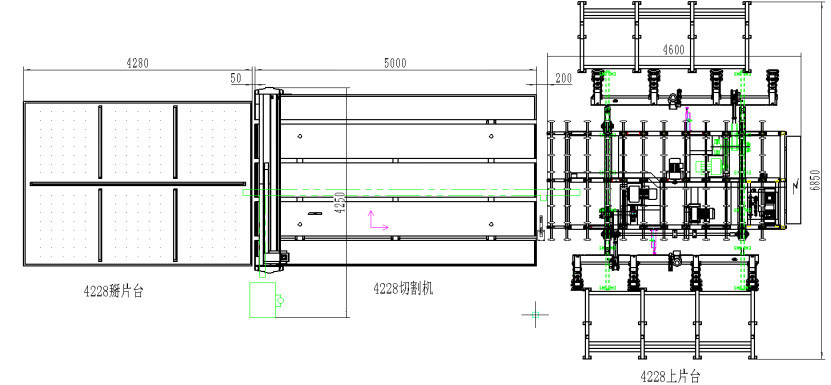

| Dimension |
Dimensions :14200x3750x900 ±20mm |
| Total weight |
3700KG |
LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line is ready for installation
LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line is ready for working in our customer's workshop
Horizontal glass washing Machine(Model:1600)
Glass Horizontal Washer to wash 3-12mm and 35mm-thinner glass with the horizontal structure, it is stable to transmit;stable performance with DELIXI contactor, push-button switches and pilot light.It adopts frequency stepless speed and is easy to operate as the button is concentrated on the operation table, the height of washing tank can be changed to meet the requirement of any glass thickness. Three groups of brushes assure the washing quality while two pairs of air knives assure the drying. Inspecting light is equipped to examine the glass quality
1. The machine is use for flat glass washing & drying.
2. Machine consist of loading part, washing part, drying part & unloading part.
3. Adopt chain type transmission.
4. Machine with 4 pairs brushes, 3 pairs sponge rollers and one water tank.
Product Detail
| Product name |
Window Flat Glass Cleaning Horizontal Glass Washing Machine |
| Usage |
Glass Washing and Drying |
| Water tank |
One or two according to your requirment |
| Color |
Customers' Request |
| Voltage |
380V(Can customize it according to your voltage) |
| Application range |
Glass Deep processing for double glass,tempered glass etc. |
| Seaport |
Qingdao Port |
| Max.Glass Size |
1600*2500 |
| Glass thickness |
3-12mm |
| Operation |
Easy Opearation |
| Product Keywords |
glass washing machine for tempered glass,glass washing line,glass washer in edging production line for tempered glass |
• Wash online and offline low-e glass, automatically recognizes Low-e film(option)
• Washing part adopts the design of upper and lower layered structure
• Adopt variable frequency fan, energy efficient, good cleaning effect
• Using intelligent intermittent energy-saving working methods
• Water tank automatic temperature control,
• 304 stainless steel materials(option)
Horizontal Hot Press Machine(Model:YRB1600A)
Function and feature
1. It adopts two rubber rollers and frequency stepless speed so the transmission speed can be changed if necessary.
2.Temperature controlling device (8 heating pipes with 2kw power), Is used to keep the best temperature to assure the quality of the insulating glass.
3.The rollers in the hot stove are made of materials good in lubrication and heatproof.
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
