0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table

0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table
0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table
0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table 0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table

Large Image :  0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table

Product Details:
Place of Origin: Jinan City, Shandong Province, China
Brand Name: Jinan Lijiang Glass Machinery
Certification: CE & ISO9000
Model Number: Lijiang Glass Cutting Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiated Price
Packaging Details: Wooden Cases Package
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now

0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table

Description
Product Name: CNC Automatic Glass Cutting Machine Conveying Speed: 0-25m/min
Glass Thickness: 3-19mm Max Loading Size: 2600mm*2000 Mm
Dimension(L*W*H): 9600mm*2800mm*900mm
High Light:

25m/min Automatic CNC Glass Cutting Machine

,

19mm Automatic CNC Glass Cutting Machine

,

25m/min Toughened Glass Cutting Table

Automatic Toughened Glass Cutting Table Machine Automatic Glass Cutter on Sale
Product Description
0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table 0

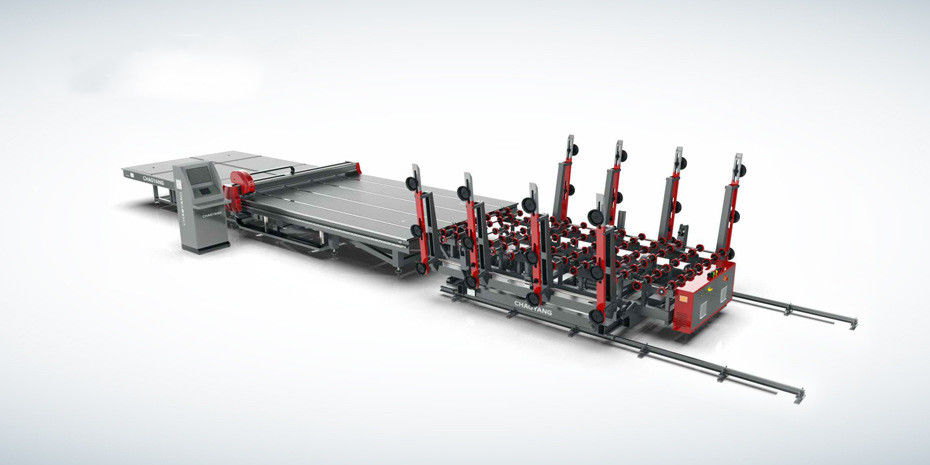

CNC Intelligent Automatic High Speed Glass Cutting Line


This Automatic Glass Cutting Line has been comprehensively upgraded by way of potential of introduction of European main technology, world most recent tech and procedure to put off the inadequate performances, incomplete features and unstable operation from home glass loader, moreover,through the unique racks, slide-rails, servo motors and pneumatic elements, it achieves the long-term steady accuracy and quick going for walks with the latest American Galil manage system, it facets even quicker operation, greater safety, greater efficiency, greater balance and higher accuracy: with the photoelectric positioning, it enables the easy and unique operation and outstanding labor saving.

ONE: CY-CNC-6133(G)Brief Introduction of Automatic Glass Cutting line:



CY-SP-6133 (G) Brief introduction of automated glass loading desk
1．Basic working precept
2．Equipment Composition
3．Detailed working steps
4．Mechanical configuration
5．Electrical configuration
6．Technical parameters
7．Technical description



TWO: CY-CNC-6133(G)Brief introduction of automated glass reducing desk
8．Basic working principle；
9．Equipment Composition；
10．Detailed working steps；
11．Equipment Performance
12．Mechanical configuration
13．Electrical configuration
14．Technical parameters
15．Software



THREE: CY-BP-6133 Brief introduction of air-floating breaking desk (Type 2+1)
1．Equipment Composition
2．Electrical phase
3．Mechanical phase
4．Technical parameters



FOUR: Remarks FIVE: Accessories

Advantages & Features
0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table 1
0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table 2
0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table 3
0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table 4
0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table 5
0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table 6
0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table 7
0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table 8
Air-floated Breaking Table for Glass Cutting
It is by and large composed of 4 parts: body mechanism, splitting mechanism, pneumatic manage gadget and electrical manage system.
* Sheet size: Min size: 1500 *1200mm (Single Side loading)
* Max loading size: 2600 x 2000 mm
* Glass sheet thickness: three ~ 19mm
* Working absorption depth: seven hundred mm
* X-axis strolling speed: 5-25m/min (adjustable)
* Y-axis strolling speed: 8-12 m/min (adjustable)
* Conveying speed: 5-25m/min (adjustable)
* Number of flip arms: eight hands (double facet loading)
* Number of single arm suckers: three
* Loading type: Double facet loading
* Working cycle: 45S (15S for every extra position)
* Installation energy supply: AC380V/50HZ (special occasions can be adjusted in accordance to client requirements)
* Installation complete power: 5-10 kw
* Compressed air: 0.6-0.8 Mpa;
* Vacuum: -50-99 Kpa (adjustable in accordance to glass thickness)
* Working desk height: 900 + 20mm
* Machine size: 4650 x 2980 x 900mm
0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table 9
Fully Automatic CNC Glass Cutting Machine

Its working precept is to deliver the reduce glass by means of conveying belt to worktable, robotically enter the role of glass thru photoelectric scanning system, and then the slicing head with diamond wheel on the cutter holder strikes alongside X and Y instructions respectively by means of software control,cutc the sheet. CNC movement controller is used in the manipulate phase of the machine, and superior AC servo motor is used in the force part.

* Max size: 2600*2000mm
* Thickness:3～19mm
* Cutting accuracy:±15
* Cutting accuracy of special-shaped glass:±20
* Cutting speed:0-200m/min
* Conveying speed:0-25m/min
* Machine size:9600X2800X900±20mm
* Working desk height:900mm±20mm
* Weight:2600kg
* Total energy of equipment:5-8kw

0-25m/min Automatic CNC Glass Cutting Machine Toughened Glass Cutting Table 10
Fully Automatic Glass Loading Table
It is usually used for automated glass loading. After placing the glass in the particular role and giving the sign of loading, the massive arm turns up about ninety five levels thru the overturning mechanism, and the complete desktop starts offevolved to pass forward. When the induction machine on the small arm touches the glass, the total computing device stops strolling and the glass is sucked by way of the suction cup thru the vacuum machine on the glass,small arm lifting motor lifts the glass upward and backward about eighty mm. The taking walks motor retreats and the large arm falls down. When the bing arm is in place, the suction cup beneath the glass starts offevolved to blow. When the small arm falls down, the glass falls on the conveyor wheel. Finally, the glass is conveyed to the slicing desk by using the conveyor wheel.
* Breaking bar: 1+1 kind
* Table Size: 9600x2800x900mm
* Glass thickness:3-19mm
* Power: 4kw
* Table height: 900 + 20mm.
Main Technical Parameter
Item.
Spec.
Max. glass cutting size
2800*4200mm
Glass thickness
2-255mm
Cutting speed(m/min)
0-200
Accurcy(mm/m)
≤±0.20
Breaking bar(pcs)
1+2
Total power
3P 380V 50Hz
Dimension
Dimensions :14200x3750x900 ±20mm
Total weight
3700Kgs
