Product Details:
|
| Voltage: | 380V/50HZ | Power: | 12kw |
|---|---|---|---|
| Dimension(L*W*H): | 8700mm*2000mm*3500mm | Weight: | 1000kg |
| High Light: | Sealant Silicone Sealing Robot,Insulating Glass Silicone Sealing Robot,Insulating Glass Sealant Extruder |
||

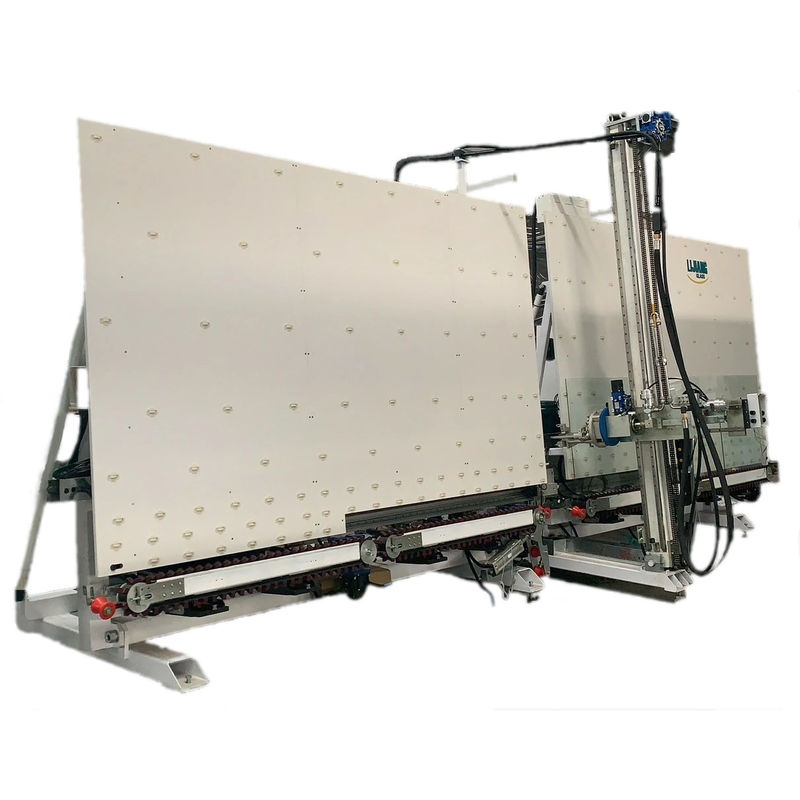

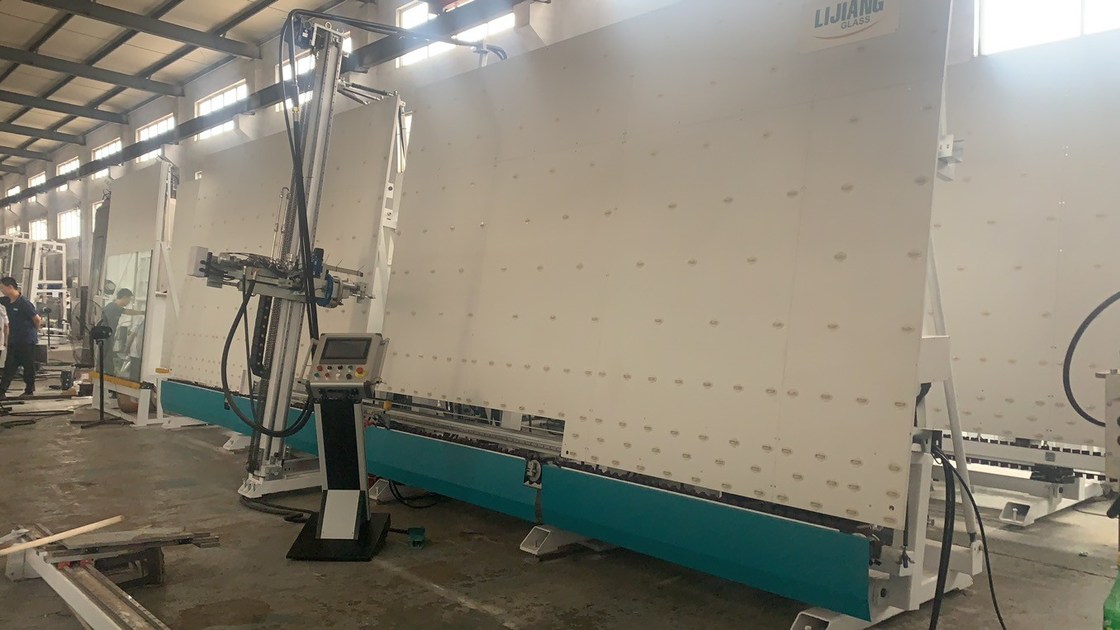

Vertical insulating glass sealant silicone sealing robot equipment
l Min & Max glass sizes can be optional
l Adopt 8 servo motors
l Adopt Japan ANCHUAN servo control system with stable performance
l Automatically measure glass size, glue depth and glue speed with linear adjustment
l Adopt timing belt to keep smooth convey with accurate position
l Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
l The glass corners are full without air bubbles, smooth surface, no need to
l Full automatic and high-efficiency machine
l New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
l Automatically repair glass corners with beautiful surface
l Smooth convey without scratch and pollution
l Single-function parts are equipped with manual functions, easy adjustment
l Shaped IG units (Optional)
l Stepped IG units with four sides (Optional)
l Double and Triple IG units
| Max.glass size | 2500mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Main electrical components
The main electrical components are adopted Siemens, SMC and so on famous spares to maintain more stable performance.
