Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output

Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output
Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output
Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output

Large Image :  Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJXJ300-800
Payment & Shipping Terms:
Minimum Order Quantity: One
Price: $40,000 per unit
Packaging Details: Wooden boxes，containers
Delivery Time: 8 working days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month
Contact Now

Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output

Description
Power: 18.5Kw Dimension(L*W*H): 4710*3250*930mm
Weight: 1500 Kg Glass Thickness: 3-19mm
High Light:

Automatic Glass Cutting Line

,

Cantilever Crane Glass Cutting Line

,

High Power cnc glass cutting table

Hot Sell Automatic Glass Cutting Line and Cantilever crane Fast cutting, high-power water output, saving circulation

Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output 0
Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output 1

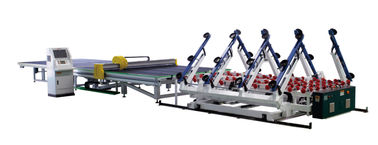

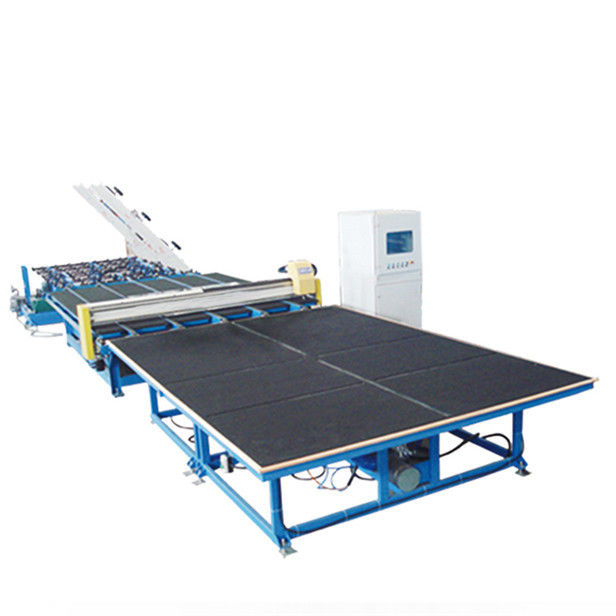

LJSCLM CNC Automatic Glass Cutting Machine glass cutting Line
LJSCLM CNC Automatic Glass Cutting Machine glass cutting Line is composed of three parts: automatic intelligent tablet feeder,cutting machine and air float tablet. CNC automatically controls the operation of the whole line, the tablet machine automatically takes the glass down and transmits it to the cutting machine. The cutting machine automatically cuts the input glass size, and automatically transfers the cut glass to the airbreaking and floating tables. The manual assistance is used to divide the glass,and the single glass cutting process is finished.Reliable,
stable performance, strong applicability and high efficiency.
Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output 2
cutting precision
≤±0.30mm
max.cutting size
3660×2750mm
min.cutting size
100×100mm
glass thickness
3~19mm
cutting speed
max100m/min
working table height
930±25mm
cutting table height
4710×3250×930mm
cutting table dimension
1500kg
loading table transport speed
40m/min
loading table tilting speed
7m/min
loading table forward distance
1000mm
loading table max.absorb size
3660×2750mm
loading table min.absorb size
1800×1800mm
loading table dimension (odd station)
6000×3900×930mm
max. thickness of glass packing
800mm
min.glass nog height
240mm
breaking table dimension
4200×3000×930mm
air cushion motor power
5.5kw
air pressure
0.5--0.8Mpa
power supply
AC380V 50Hz
total power
18.5KW
Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output 3
Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output 4
Glass Washing Machine LJWBQJ2500
1.Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder；
3. The shaft of rubber roller is made of stainless steel ；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；
6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；
8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of glass washing machine, with the air filter screen on the side for easy inspection and cleaning；
9. Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable, the service life is long, realizes the cleaning high request special glass；
10. Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain；
11. Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.
12. Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)

Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output 5
Cantilever crane LJXJ300-800

Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output 6
Safety-absorption
200KG/400kg/600kg/800kg
Performance
Rotation 0-90 degree and lifting 600-1200mm
Quantity and size of sucker
2/4/6/8
Working gas source
5-8 Pa
Outer size
L 1120xW660XH620mm
Net weight
550kg
Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output 7

Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.
Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output 8
Automatic Glass Cutting Line Cantilever Crane Fast Cutting High Power Water Output 9
Cork Separator Pads for glass protection
For production, storage and transport of products made of glass, plastics or metal, cork distance pads serve as bumpers and non-skid shipping pads. They reliably protect delicate surfaces from scratches and effectively contribute to cost reduction.
1.Glass packaging: anti-vibration glass pads which are used for transportation of glass.
2. Natural material, health and non-toxic
3. various grades for thickness and size
4.size: according your requirements
5. shape: die cut according your requirements
Materials: Plain cork
Transparent low-tack adhesive PE film,
Yellow/white protective paper liner;
