Product Details:
|
| Name: | Insulating Glass Automatic Sealing Rob | Model: | LJTJ2545 |
|---|---|---|---|
| Power: | 15 Kw | Voltage: | 380v |
| Max.glass Size: | 2500*4000mm | Min.glass Size: | 400*300 Mm |
| Glass Thickness: | 12-56 Mm | Working Speed: | 5-40 M/min |
| Overall Dimension: | 8700*2500*3500 Mm | Weight: | 5000kg |
| Air Pressure: | 0.6-0.8 MPa | Squeeze Pressure: | <35MPa |
| High Light: | 40 M/Min Silicone Extruder,5M/Min Silicone Extruder,5M/Min Insulating Glass Machine |
||
high quality auto silicone sealing vertical double glazed insulating glass machine

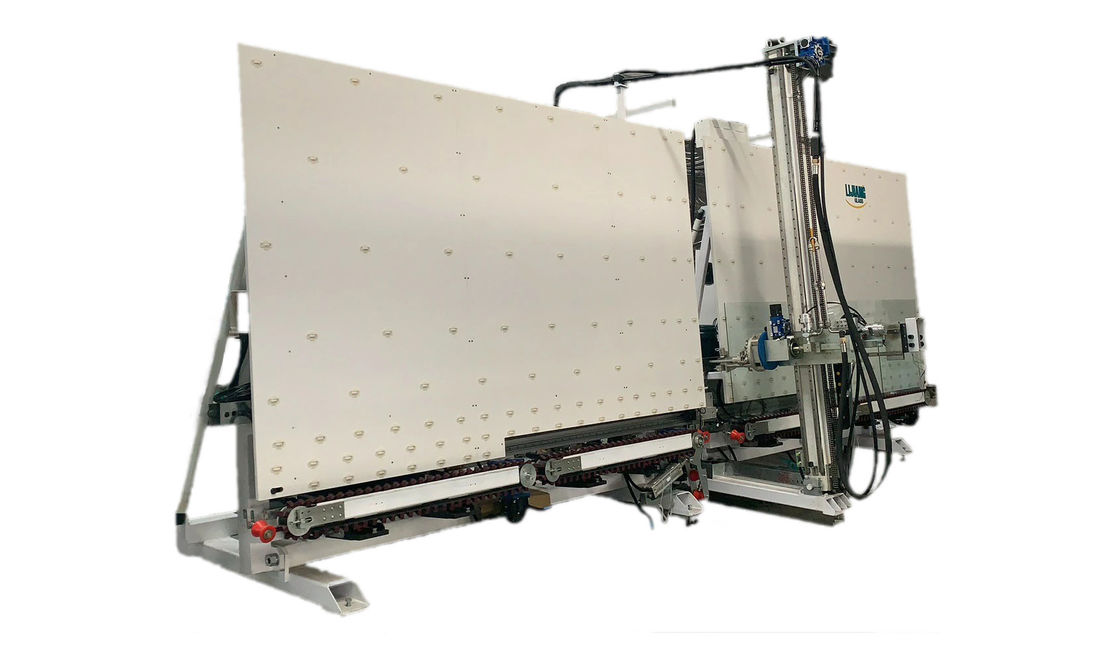

Automatic Vertical Insulating Glass Sealing Robot for glass processing
Automatic insulting glass sealing robot is used for the second sealing procedure of the hollow glass. Silicone glue, polyurethane glue or polysulfide glue are applied around the hollow glass to play the second sealing role and to maintain the stability of the structure.
Main feature
Sealing glue continuously for various sizes of rectangle insulating glass, and the quality is good.
The special "V"synchronous conveyor, ensures the transmition steadily and no pollution.
Detecting the size and thickness of the insulating glass automaticlly,adjusting the position of "V"conveyor accuratly and guarantees the same working height.
Aiming at system and beautifying angle of glass automatically, ensures the insulating glass more aesthetic.
Electric proportional valve regulates the pressure and hydraulic system control the sealant volume accurately.
Imported pneumatic motor (Hasco)glue supply system assures the stability of glue supplying.
Adopts the CNC seven axis servo control system and man-machine interface operating system.
Processing double glass and triple glass.
Two groups of glue (polysulfide sealant and silicone sealant) can be exchanged automatically (optional).
Equipped with glue quantity warning system, remind to change glue
Application
1.Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
2.Glass sealing machine adopt timing belt to keep smooth convey with accurate position
3.Automatic Hollow glass sealing spreading machine adopt 8 servo motors
4.Automatically measure glass size, glue depth and glue speed with linear adjustment
5.New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
6.Full automatic and high-efficiency machine,Automatically repair glass corners with beautiful surface,Smooth convey without scratch and pollution
7.Single-function parts are equipped with manual functions, easy adjustment
Technical parameter
| Max.glass size | 2500*4000mm |
| Min.glass size | 400*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | 35MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 8700*2500*3500mm |

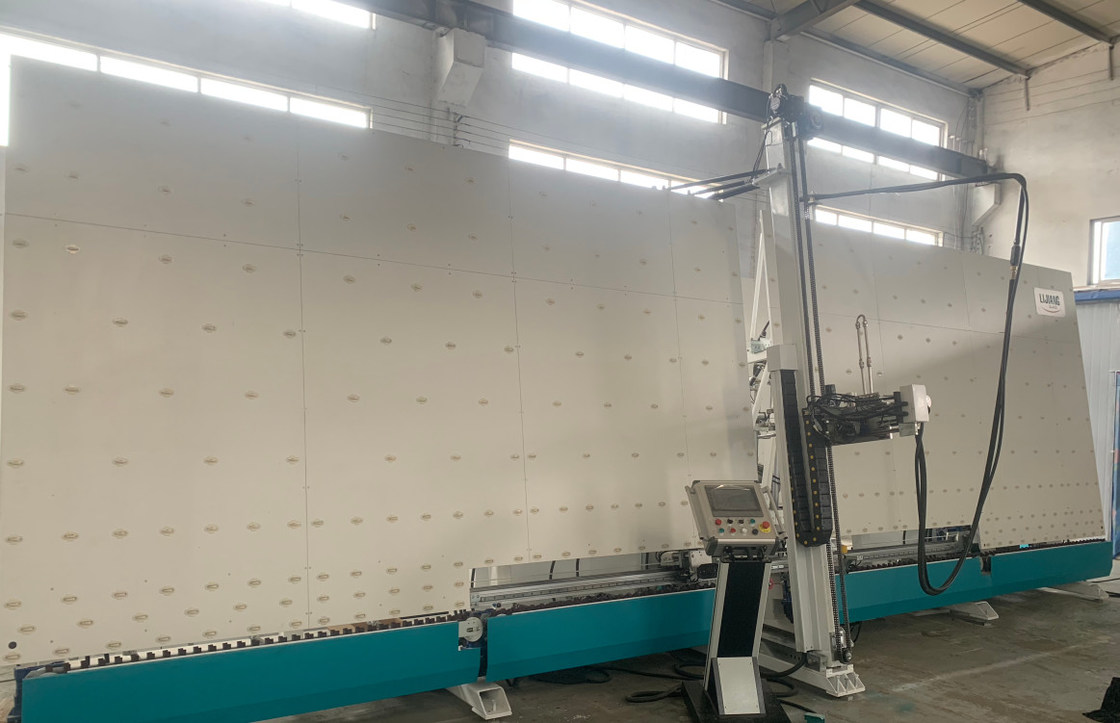

Detail pictures
