Product Details:
|
| Name: | Glass Sealing Robot For Silicone Spreading | Max Glass Size: | 2500*4000mm |
|---|---|---|---|
| Min Glass Size: | 300*300mm | Glass Thickness: | 12-50mm |
| Working Speed: | 5-40m/min | Type: | IG Machines |
| Applicantion: | Insulating Glass Processing | Squeeze Pressure: | 32MPa |
| High Light: | 40m/Min Sealant Extruder,Polysulfide Glue Sealant Extruder,40m/Min silicone extruder machine |
||

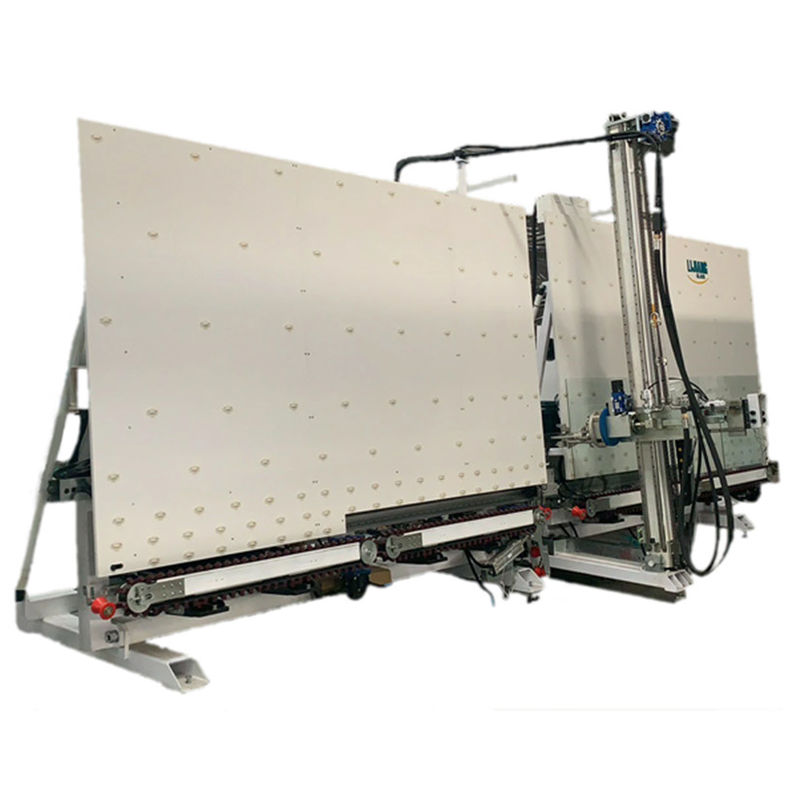

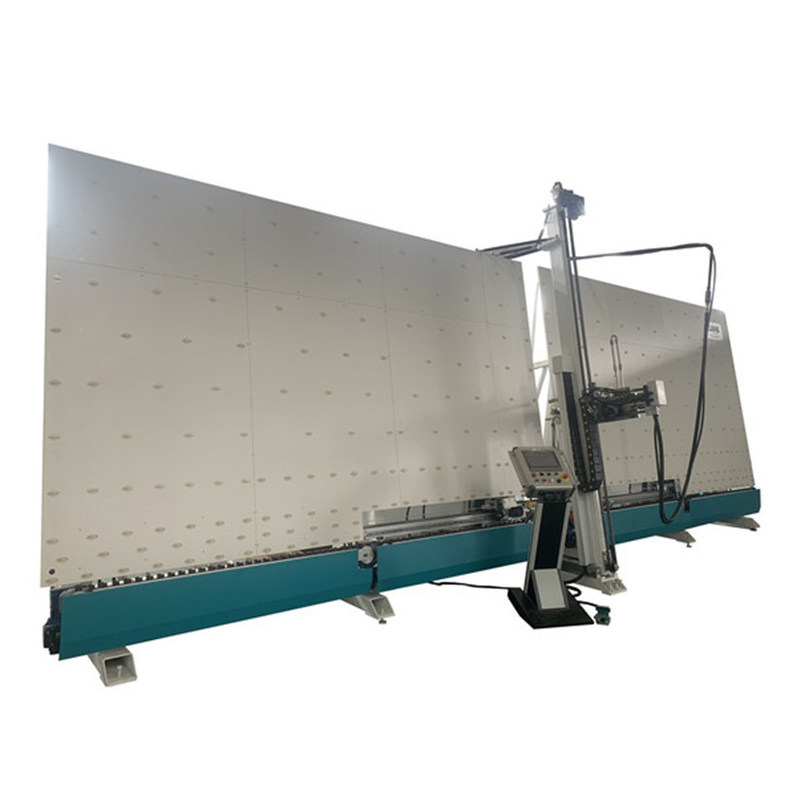

Product Description of Vertical Insulated Glass Sealing Machine
Automatic Vertical Insulated Glass Sealing Machine can automatically recognizing glass size by sensors, don't need input glass size on the touch screen. Insulating glass sealing robot can coat 8 kinds of shaped IGU.
Product Detail of sealant dispensing equipment
1.Double Glazing Glass sealing machine adopt 8 sets of Japan ANCHUAN servo control system with stable performance.
2.Glass corners are full without air bubbles, smooth surface, no corner trimming required
3. Two Suckers Device
Adopting two suckers for preventing to move glass during sealing.
4.Glue system can be selected
One Set of Glue System Equipped with single A component and single B component.
Two Sets of Glue Systems Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
5. Back Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.
6. Time belt device ensure that glass can be smooth transmission and positioned accurately.
Technical parameters of silicone spreading machine
| Max.glass size | 2500*4000mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Related Product
Desiccant Filling Machine LJGZ 2020
Main feature
• Adopt Siemens PLC control system
• Automatically drilling, filling and sealing
• Touch screen interface, easy operation
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Core parts are imported brands
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)
Technical data of Molecular sieve filling machine
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1100mm*1100mm*3600mm |
Butyl Extruder Machine LJTB 01
Main feature
• PLC control system, touch screen interface
• with preheating function
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
