2 Meters Rotating Table Or Turning Table With Big Sizes For IG Units

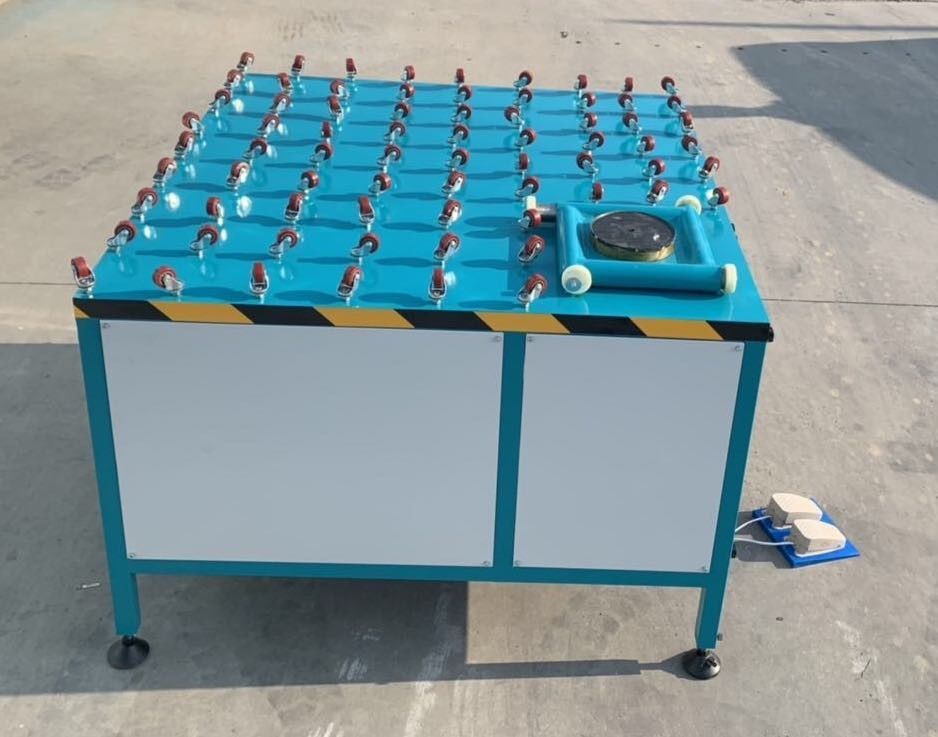

This rotating table is used for making double glazing glass units with manual silicone sealants spreading machine by sealing gun.The base rotating table does not has rollers. Other sizes of the rotating table have rollers for supporting and rotating big size. The rotating table has different size. The base rotating table is suit for about 1000mm*1000mm, 1500mm*1500mm, 2000mm*2000mm and 2500mm*2500mm.
Rotating Table Machine
Main feature
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass

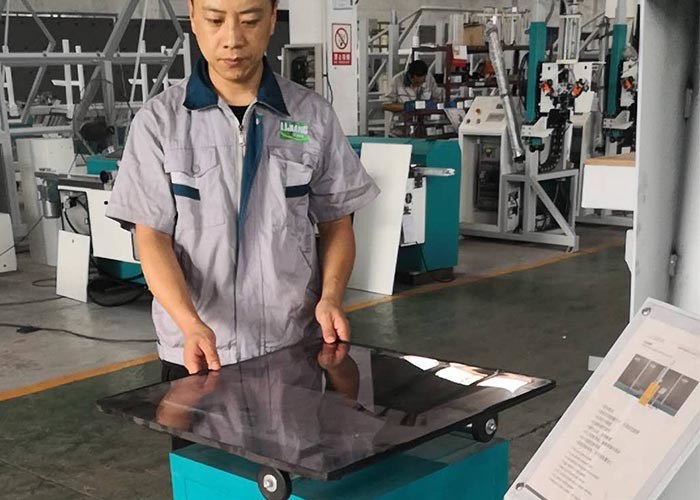

• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
1,Usage
LJZT03 Rotated sealant-spreading table is last preface of creation insulation glass or act wall glass. It is a rotated table for draw double group gum. It can proceed 90°Integral times rotated,also can proceed face or contrary rotated. Revolve and vacuum sucker have auto control equipment, it can combine glass size freedom choice sucker and stretch arm control. Stretch arm of Special creation can guarantee the top flat surface on a flat surface. This rotated sealant-spreading table is rotated steady; Break down low, prop up the stability. It is an ideal equipment to create insulating glass.
2,Main technical parameters
Working environment Parameter Unit Remarks
Working environment temperature 15-40℃
Carry/deposit temperature -20-55℃
Carry/deposit humidity 30-90%
Basic characteristic
Input voltage AC400V±10%,60HZ
Input power 120 W
Rotated speed 6.5 r/min
Air consumption 0.5-0.8 Mpa
Max glass size 2000*1500 mm
Min glass size 200*200 mm
Dimensions 600*450*950 mm
3,Main construction
This machine include Adjust flat bottom,Prop up,Revolve to prop up the device,Spread to move the device, spirit carries control system, electric appliances control system and plank.
3.1 Revolve prop up the device
Revolve prop up the device include the prop up,prop up the pole,prop up set,big sucker, small sucker.
3.2 Spread to move the device
This device consisted the Spread to move the deceleration electrical engineering,decelerate machine and chain round.
3.3 Spirit carries control system
This system included the Spirit source processor, electromagnetism valve, singled direction valve and vacuum occurrence machine, pass the system control the matches of the size sucker.
3.4 Electric appliances control system
This system consisted the spread to feel machine, after the electric appliances, electric appliances a piece that break the machine and can operate constitutes,working dependable, operation is simple, automation the degree is high.
4,Installation and adjustment
This machine body must be grounded of dry, have no the powder and have no the corrosion, temperature at 10-40℃. Regulate to adjust flat bottom, make the machine keep the level, check completely whether all tight firmwares conjunction place loosen or not move, combining tight.
Use multi-skein-wound annealed copper in double-color of yellow-green, with a sectional plane of 4mm2,the resistance between the machine body and the principal grounding spots after grounding should less than the 4Ω.
5,Use and operation
5.1 Glass size ≤500*400mm
Fix the big sucker to prop up the dish in the turn-over first last, put on to change to deal with contact quickly, place the power supply knob switch in the " open" position, order the feet that move the vacuum sucker control step the switch, regulating manometer control knob, make the vacuum degree attain the fit pressure value( according to sucker glass prison then, do not adjust too big), according to the operation habit, change direction the electrical engineering to knob to place in the position between" positive" or" anti", order first the feet that move the vacuum sucker control step the switch( otherwise the electrical engineering do not turn), then order to move to turn to move the feet steps the switch, can immediately proceed the operation.
5.2 Glass size ≥550*400mm
Prop up big sucker to dish to ascend to dismantle from the turn-over first, will change to deal with contact to change the small sucker spirit road inside quickly, then put the glass on the small sucker, regulate the length that prop up the pole according to the vitreous size, then turn to use to support the pole, making prop up the tight in a bolt for coming in contact with all glass then, willing prop up a top finally. The rest is together 5.1
6,Attention
6.1When tune up to prop up the tight in a bolt for and glass contact even empress, must will prop up a top, prop up otherwise the pole turns to move, prop up, the round escapes from the glass, will produce the glass move the phenomenon.
6.2Big sucker in usage, doing not want will enter the barometric dint adjusts of over high, otherwise the vacuum a glass for too bigger, being usage thickness is thinner, easy is ground the glass.
7,Maintenance
7.1 New machine through revolving of a period of time after, should open the plank, check whether each tight firmware loosen or not moves, laying equal stress on the new tight.
7.2 Make to complete each time, want to clean dust and gum clearances of the machine, combine to cover the turn over dish, keep dust from falling into sucker.
7.3 Prop up set and prop up the pole should periodically draw the lubrication grease, resisting rust.
7.4 The periodical check electricity connects whether line loose or not moves, and connect the dependable of the ground.
Paremeters :
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
