Product Details:
|
| Name: | Full-Automatic Vertical Insulating Glass Sealing Robot | Max Size: | 2000*2500mm |
|---|---|---|---|
| Advantage: | Easy For Different Shap Glass | ||
| High Light: | 2000*2500mm sealant dispensing equipment,Insulating Glass extruder machine |
||
Full-Automatic Vertical Insulating Glass Sealing Robot with standard size 2000*2500mm

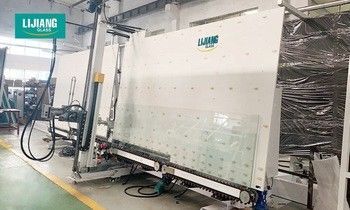

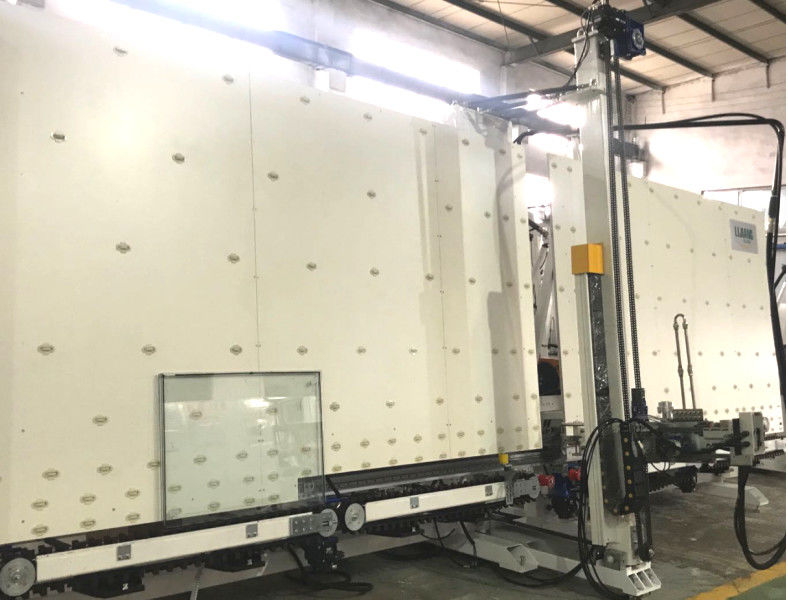

LJTJ2025 Vertical Insulating Glass Sealing Robot
►Application
l Min & Max glass sizes can be optional
l Adopt 8 servo motors
l Adopt Japan ANCHUAN servo control system with stable performance
l Automatically measure glass size, glue depth and glue speed with linear adjustment
l Adopt timing belt to keep smooth convey with accurate position
l Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
l The glass corners are full without air bubbles, smooth surface, no need to
l Full automatic and high-efficiency machine

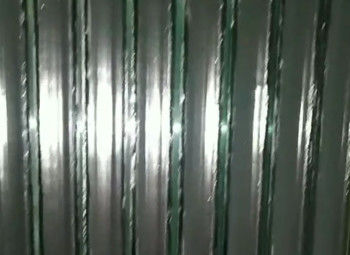

l New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
l Automatically repair glass corners with beautiful surface
l Smooth convey without scratch and pollution
l Single-function parts are equipped with manual functions, easy adjustment
l Shaped IG units (Optional)
l Stepped IG units with four sides (Optional)
l Double and Triple IG units
►
Ø Two Sets of Pump A & Pump B
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
Ø One Set of Pump A & Pump B
Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.
Ø Back Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.
Ø Dyad Body Device
The dyad body device has two functions. The left one is used for filtering impurities and moisture when filling gas into , then the right one plays the role of lubrication.
Main technical parameter
| Max.glass size | 2000*2500mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.5-0.7MPa |
| Squeeze pressure | 32MPa |
| Overall dimension | 8000*1500*2700mm |
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
