Product Details:
|
Name: | Vertical Insulating Glass Sealing Robot | Max Size: | 200082500mm |
---|---|---|---|
Advantage: | Shape Glass And Stepp Glass | ||
High Light: | 0.7MPa silicone extruder machine,Servo sealing robot |

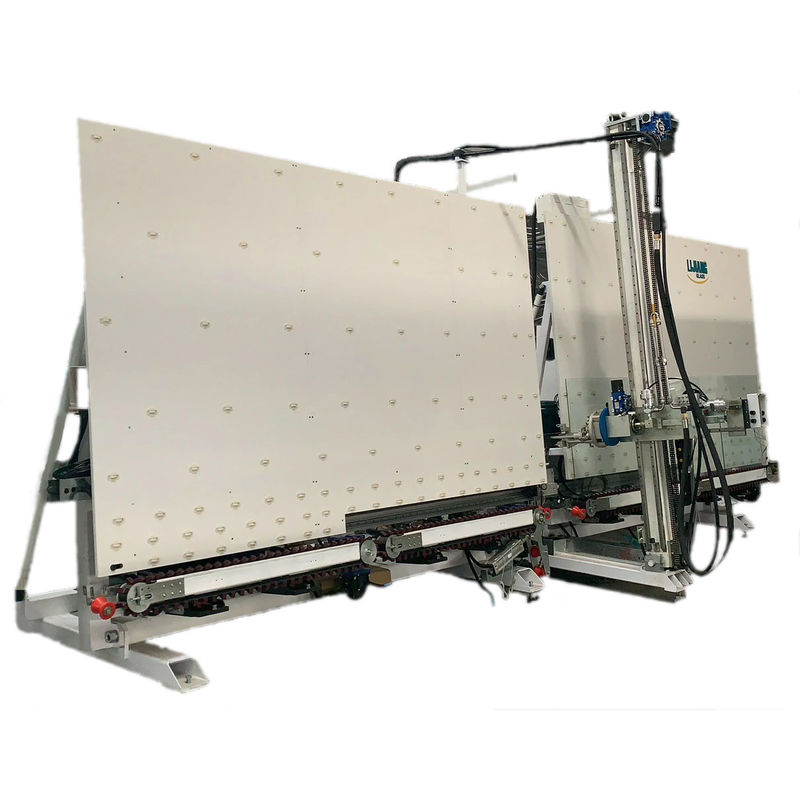

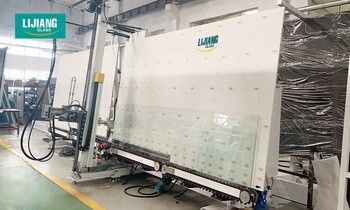

LJTJ2025 Full-Automatic Vertical Insulating Glass Sealing Robot
Sealing robot for insulating glass processing LJTJ2025
►Machine Description
This type of machine is a full automatic and high-efficienc sealing robot for insulating glass processing. Automatically measure glass size, glue depth and glue speed with linear adjustment. Single-function parts are equipped with manual functions, easy adjustment.Can coating more than 8 kinds of shaped glass,include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc.
► Application
l Min & Max glass sizes can be optional
l Adopt 8 servo motors
l Adopt Japan ANCHUAN servo control system with stable performance
l Automatically measure glass size, glue depth and glue speed with linear adjustment

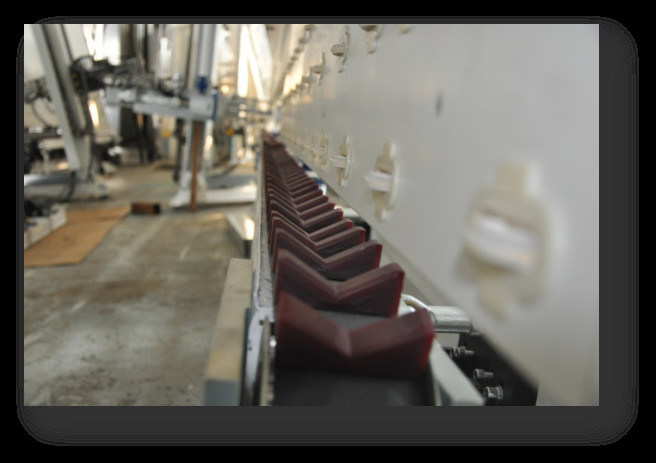

l Adopt timing belt to keep smooth convey with accurate position
l Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
l The glass corners are full without air bubbles, smooth surface, no need to
l Full automatic and high-efficiency machine

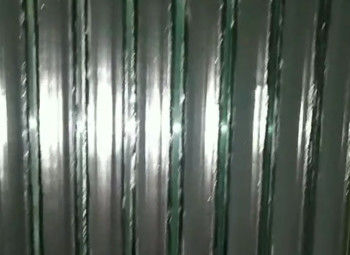

l New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
l Automatically repair glass corners with beautiful surface
l Smooth convey without scratch and pollution
l Single-function parts are equipped with manual functions, easy adjustment

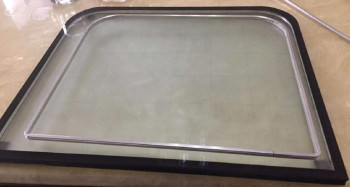

l Shaped IG units (Optional)
l Stepped IG units with four sides (Optional)
l Double and Triple IG units
►Main technical parameter
Max.glass size | 2000*2500mm |
Min.glass size | 300*300mm |
Glass thickness | 12-56mm |
Working speed | 5-40m/min |
Air pressure | 0.5-0.7MPa |
Squeeze pressure | 32MPa |
Overall dimension | 8000*1500*2700mm |
►►►Sealing head showing
►►►Electrical parts Showing
The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and revering mechanism and rotating.
The main electrical components are adopted Siemens, SMC and so on famous spares to maintain more stable performance.
►►►Tow pump syetem( optional )
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
