Product Details:
|
| Name: | Vertical Insulating Glass Sealing Robot LJTJ2540 | Voltage Power: | 380V 12kw |
|---|---|---|---|
| Overall Dimension: | 11000*2000*3500mm | Working Speed: | 5-40m/min |
| Air Pressure: | ≥0.6MPa | ||
| High Light: | Processing insulating glass machine,0.6MPa sealant dispensing equipment |
||

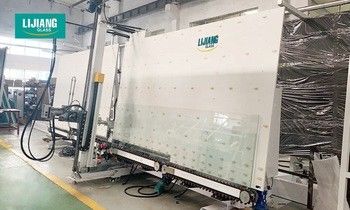

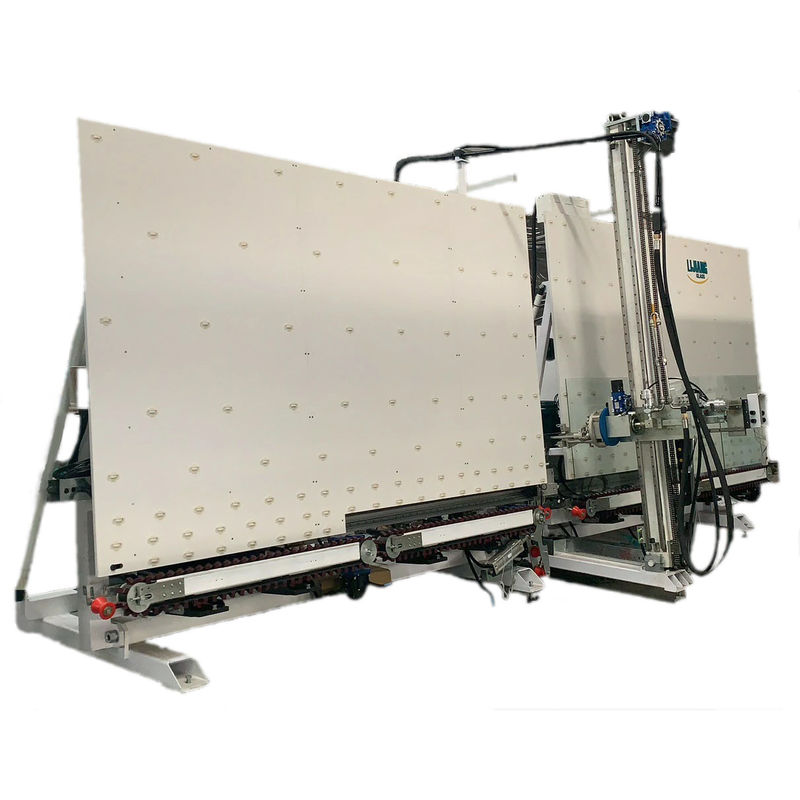

Vertical Insulating Glass Sealing Robot, high efficiency automation, suitable for glass deep processing enterprises
• Min & Max glass sizes can be optional
• Adopt 8 servo motors
• Adopt Japan servo control system with stable performance
• Automatically measure glass size, glue depth and glue speed with linear adjustment
• Adopt timing belt to keep smooth convey with accurate position
• Spares are produced with high standardization and high precision, ensure the machine can be used
with long-term working
• The glass corners are full without air bubbles, smooth surface, no need to
• Full automatic and high-efficiency machine
• Automatically repair glass corners with beautiful surface
• Smooth convey without scratch and pollution
• Single-function parts are equipped with manual functions, easy adjustment
• Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular.
Polygon, etc (Optional)
• Seal stepped glass fully at once (Optional)
• Can seal stepped IG with four sides (Optional)
• Adopts double pumps device to use two kinds of different sealants, such as silicone, polysulfide and silicone
structural sealant (optional)
| NAME | ORIGIN | BRAND |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
| CPU | Japan | YASKAWA |
| Low voltage component | Germany | SIEMENS |
| Guideway | Taiwan | HIWIN |
| Switching power supply | Taiwan | MW |
| Sensor switch | Korea | AUTONICS |
| Pneumatic component | Japan | SMC |
| Touch screen | China | GAOSHAN |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
The company is committed to building high-end insulating glass machinery and equipment by learning from
famous experts, establishing the research and development centers, cooperating with domestic and foreign
well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North
Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other
well-known enterprises. Since the establishment of the company, our products have been exported to Europe,
America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same
time, our company worked with the well-known domestic research institutes, such as the North China Industrial
Group, Shandong University and others, to constantly improve the level of technical research. So far, we have
independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing
robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic
butyl extruder machine, its technology and quality have reached the highest leading level in China.
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer
to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
