Product Details:
|
| Name: | Manual Sealant-spreading Machine | Working Air Pressure: | >0.6MPa |
|---|---|---|---|
| Sealant Spreading Pressure: | 15-20MPa | Sealant Volume: | 4L/min |
| Sealant Spreading Air Pressure Ratio: | 50:1 | Diameter Of A/B Sealant: | 570mm/280mm |
| Capacity Of The Glue Drum: | 200-300 Ml/200 Kg | Dimension: | 1100*650*1630mm、 |
| High Light: | Spreading silicone extruder machine,sealant dispensing equipment |
||

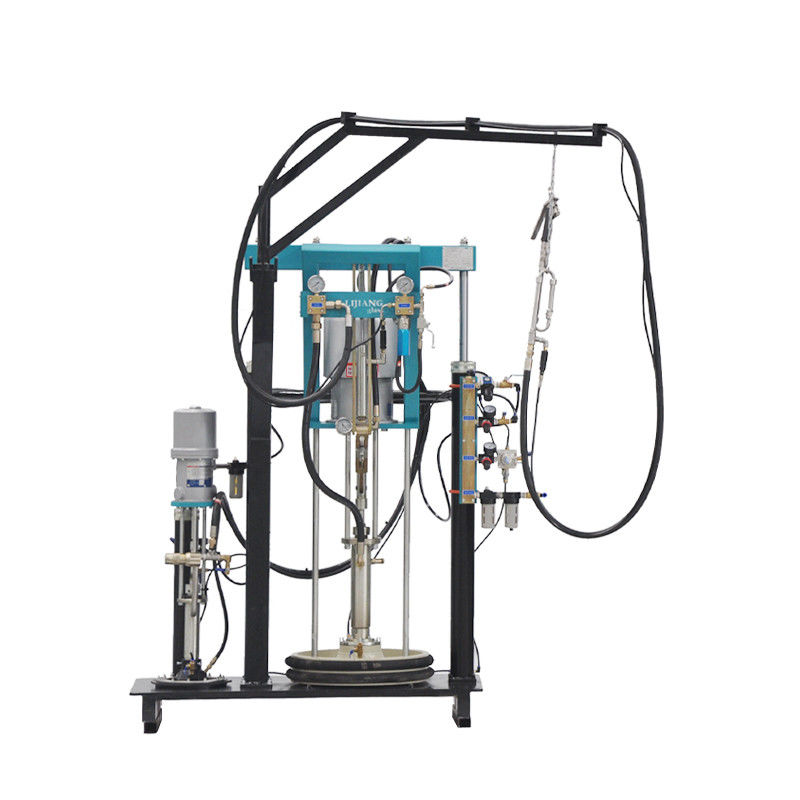

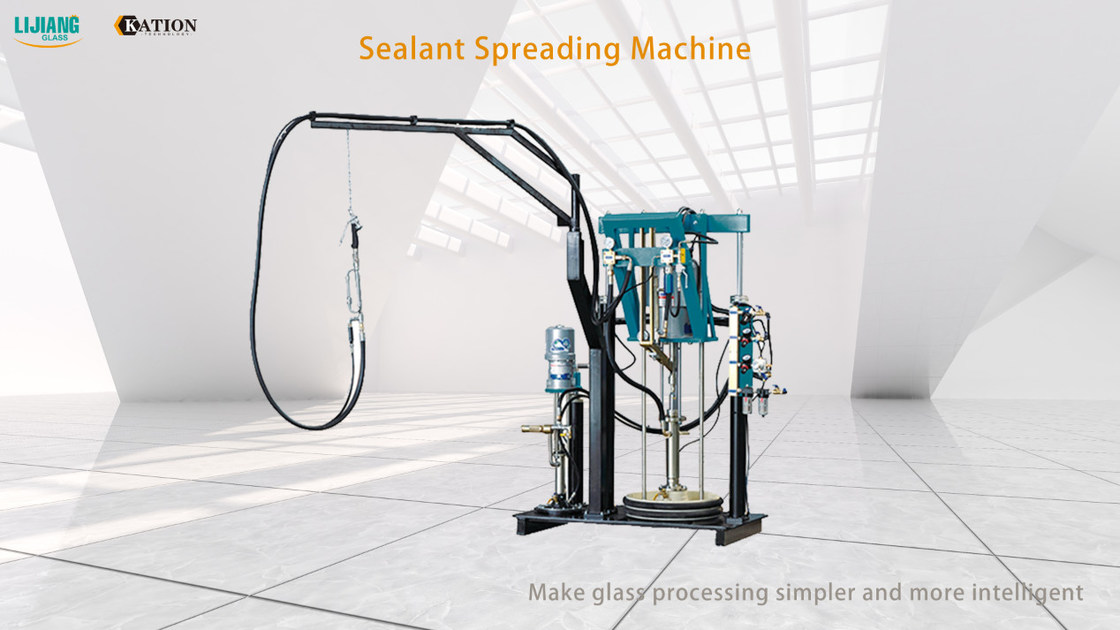

Description of Manual Sealant-spreading Machine
Two component gluing machine is used to apply the second layer of sealant to the insulating glass.
It is special equipment used for spreading the two-component polysulphide glue and/or two-component silicone structure glue for the aluminum type insulating glass or curtainwall glass.
Sealant-spreading Machine is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
Advantage of sealant spreading machine
• Imported motor system to improve equipment efficiency
• Imported sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Main technical parameter of Silicone sealant spreading Equipment
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
| Weight | 490kg |
| Capacity of the glue drum | 200-300 ml/200 kg |
The feature of sealant spreading machine
1.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.
2.Special check valve in proportioning pump to make the sealant coming out more fluently , suitable for all kinds of sealant ,avoid incomplete mixing .
3.Sealant extruder machine is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
4.The rotating arm is equipped with a universal device, flexible and portable .
5.Pneumatic control ,split type structure ,easy to operate
Related products
Sealant-spreading machine LJST03
Main feature
• Use cylinder to provide power
• China sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Rotated Sealant Spreading Table LJSK02
Main feature
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
