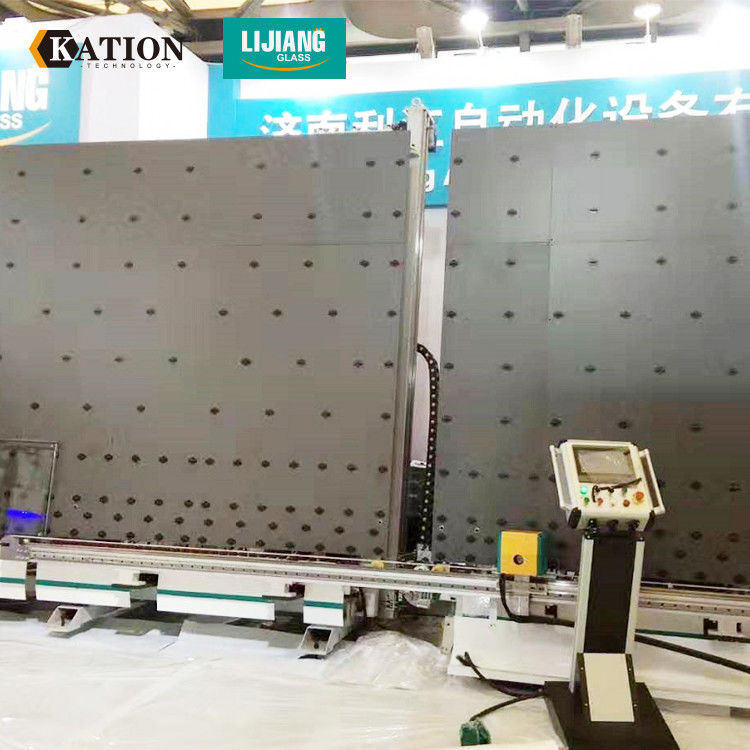

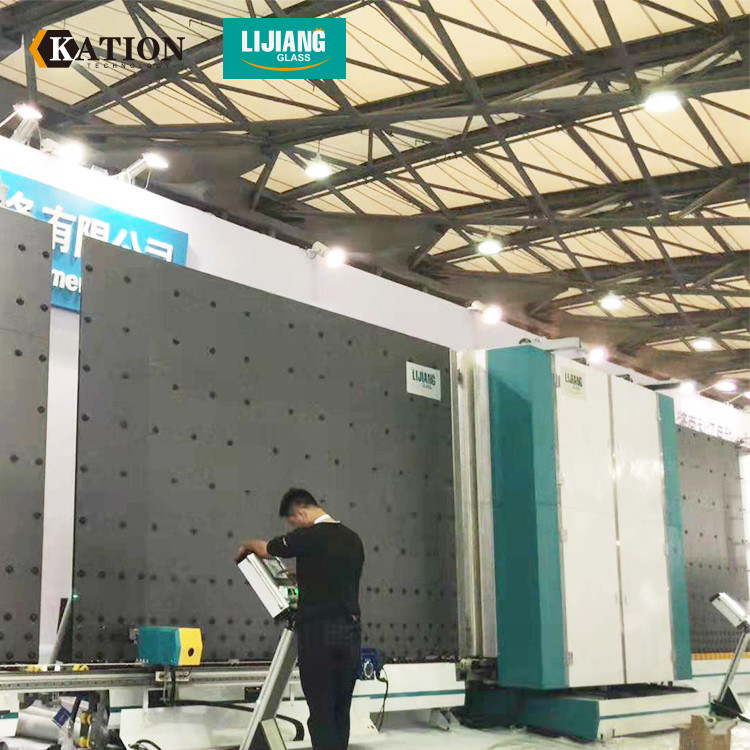

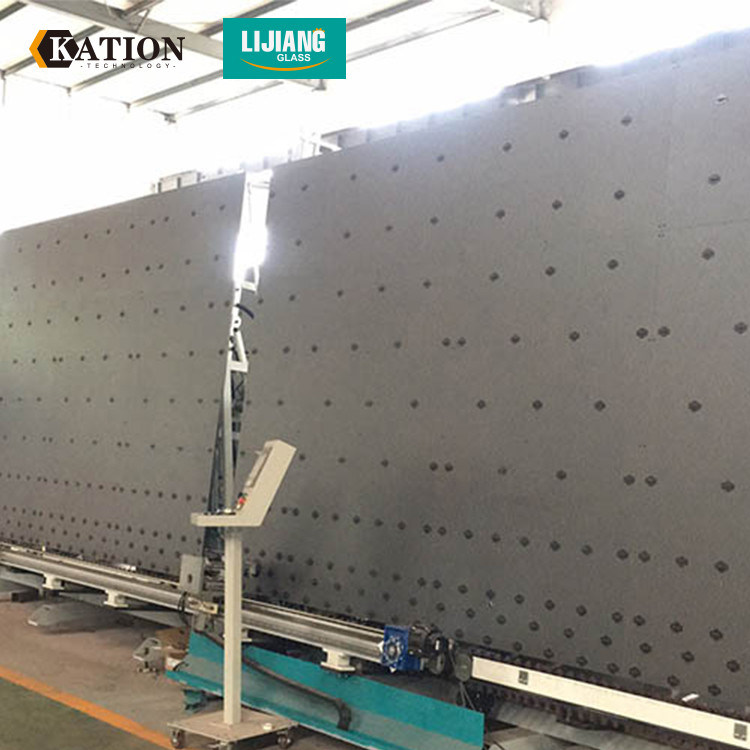

CE Vertical Insulating Glass Sealing Robot

CE Vertical Insulating Glass Sealing Robot
CE Vertical Insulating Glass Sealing Robot CE Vertical Insulating Glass Sealing Robot CE Vertical Insulating Glass Sealing Robot CE Vertical Insulating Glass Sealing Robot CE Vertical Insulating Glass Sealing Robot

Large Image :  CE Vertical Insulating Glass Sealing Robot

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: wooden box
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 20sets/month

CE Vertical Insulating Glass Sealing Robot

Description
Name: Vertical Insulating Glass Sealing Robot Max.glass Size: 2500mm
Min.glass Size: 170mm*400mm (2000mm Machine) Glass Thickness: 12-56mm
Working Speed: 5-40m/min Air Pressure: 0.6-0.8MPa
Squeeze Pressure: <350kg/m³ Plane Angle: 6°- 9°
Max Glass Weight: 400kg Voltage Power: 380V 12kw
Overall Dimension: 8700mm*2000mm*3500mm
High Light:

silicone extruder machine

,

double glazing equipment

Vertical Insulating Glass Sealing Robot

LJTJ2540

Application

  • The minimum and maximum glass sizes can be selected
  • Using 8 servo motors
  • Adopt Japan Yaskawa servo control system, stable performance
  • Automatic measurement of glass size, glue depth and glue speed through linear adjustment
  • Using synchronous belt, stable conveying and accurate position
  • High standardization of spare parts production and high precision to ensure that the machine can be used for a long time
  • Glass corners are filled, no bubbles, smooth surface, no need
  • Automatic high efficiency machine
  • New scraper design, especially for making IG trains with very flat sides and corners and no bubbles.
  • Automatic repair of shiny glass corners on the surface
  • Smooth conveying, no scratches and pollution
  • Single-function parts are equipped with manual functions for easy adjustment
  • Formed IG unit (optional)
  • Stepped IG unit with four sides (optional)
  • Double and triple IG devices



Technical data

Max.glass size 2500mm
Min.glass size 170mm*400mm (2000mm machine)
Glass thickness 12-56mm
Working speed 5-40m/min
Air pressure 0.6-0.8MPa
Squeeze pressure <350kg/m³
Plane angle 6°- 9°
Max glass weight 400kg
Voltage power 380V 12kw
Overall dimension 8700mm*2000mm*3500mm



Main components list



Name Brand
Switch SIEMENS
Servo motor Japan YASKAWA
I/O model Japan MSYSTEM
Lower voltage component Siemens
CPU Japan YASKAWA
Frequency converter Japan OMRON
Switching power supply Taiwan MW
Pneumatic component Japan SMC
PLC Siemens
Guideway Siemens







 Detail Images

Ø One Set of Pump A & Pump B

Equipped with a single A component and a single B component. Glue A and B are automatically mixed and mixed automatically.

CE Vertical Insulating Glass Sealing Robot 0









Two sets of pump A and pump B
Equipped with two sets of A components and two sets of B components, it can be used for two different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive, etc.

CE Vertical Insulating Glass Sealing Robot 1







Adhesive device

When the pressure increases, more glue B will automatically reflow, thereby saving material.

CE Vertical Insulating Glass Sealing Robot 2







Double body device
The two-body device has two functions. The one on the left is used to filter impurities and moisture while filling the gas, and the one on the right is used for lubrication.

CE Vertical Insulating Glass Sealing Robot 3







Two suction cup devices
Two suction cups are used to prevent the glass from moving during the sealing process.

CE Vertical Insulating Glass Sealing Robot 4

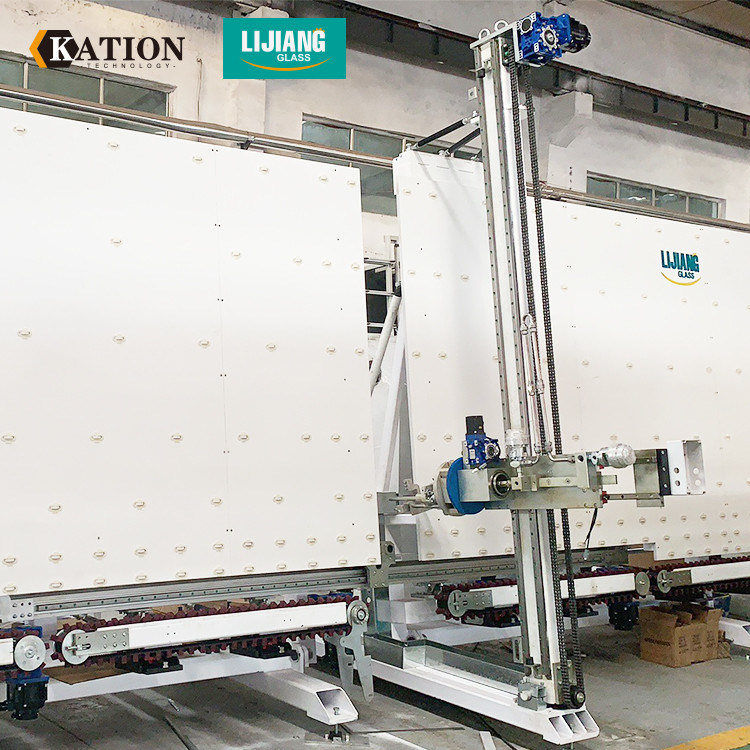

Sealing device
The Japanese Yaskawa servo motor is used to control the 360 ° rotation of the seal. Set up a scraper to scrape off excess glue without having to repair the glass corner a second time.

CE Vertical Insulating Glass Sealing Robot 5





CE Vertical Insulating Glass Sealing Robot 6CE Vertical Insulating Glass Sealing Robot 7CE Vertical Insulating Glass Sealing Robot 8
