Product Details:
|
| Production Name: | Insulated Sealing Robot | Max.glass Size: | 2500*4000mm |
|---|---|---|---|
| Min.glass Size: | 300*300mm | Glass Thickness: | 12-56mm |
| Working Speed: | 5-40m/min | Air Pressure: | 0.5-0.7MPa |
| Squeeze Pressure: | 32MPa | Voltage Power: | 380V 12kw |
| High Light: | glass sealing machine,silicone extruder machine |
||

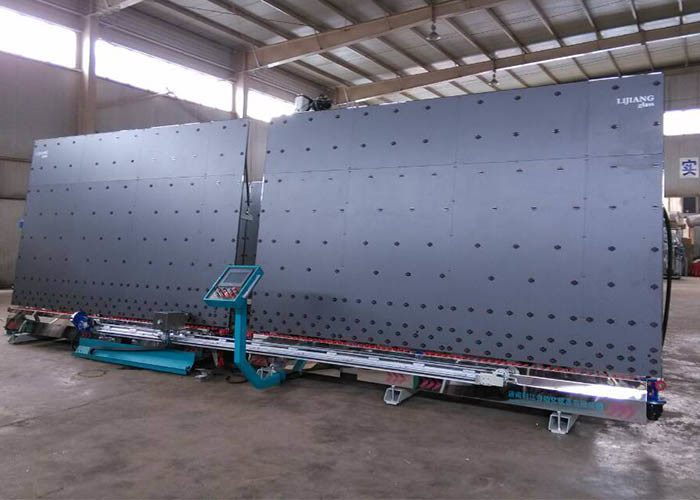

LJTJ2540 automatic sealing robot from Lijiang glass co. is famous for its smooth and fas glue speed without any air bubbles, it adopts two parts to replace old three parts, save space and work quikly.
| Max.glass size | 2500*4000mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Equipment Features
1. It adopts original and complete Japan YASKAWA control system, so it can compute fast, has high sealant output accuracy and good stability, and forms smooth sealant surface.
2. The board spacing is small, so it can process small glass which is 260 mm wide and 300 mm long as minimum.
3. The belt uses changeable V-shaped modules, this reduces changing cost;
4. It covers a small area, the distance from wall can be minimized to 1.5 metres, so it can save space of plant.
5. With a multiple-section structure, it can carry out line production; it can prestore units of insulating glass, improving production efficiency;
6. The conveying wheels are embedded in the back board, so that glass runs stably.
7. The conveying belts come with automatic washing brushes to remove debris on the belts during production.
8. It has two sealant supplying systems, they can be switched by one-button operation; they can load two different groups of sealants, alternatively, one system is used while the other is for standby. (optional)
9. It also can apply sealants for three-layer two-cavity glass.
10. The sealant mixing system comes with an anti-blocking structure, i.e. high-voltage return-flow system, so it is easy to clean.
11. The program has memory function, and the parameters of different models of glass can be switched for use, therefore, the work is simplified.
12. The machine has high speed positioning function, that is, it can accurately position glass while the glass runs at a high speed.
13. The machine uses shaft drive instead of chain drive, this improves the running accuracy and conveying efficiency of glass.
14. The screen displays sealant output in real time, this is convenient for observation and parameter adjustment.
15. The electric elements and cables are imported brands, they are very stable and durable.
16. The machine adopts servo transformer, less energy consumption.
17. The machine adopts anti-bending robot cable and American Xinli air pipe.
18. The machine has function of automatic timed sealant discharge, this can prevent the mixed sealants freezing and blocking.
19. The operating interface is simple and intuitive, and it can accurately display information, convenient for maintenance.
20. The touch screen uses Ethernet communication, sensitive and easy to operate.
21. There are eight photoelectric positioning devices around the extruder head, ensuring perfect effect of sealant application.
22. The machine is designed and manufactured by our company independently, this ensures good quality and after- sale service and speedy machine upgrade.
After-sales service
*Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
