Automatic Insulating Glass Production Line To Makes Glass Processing Simpler

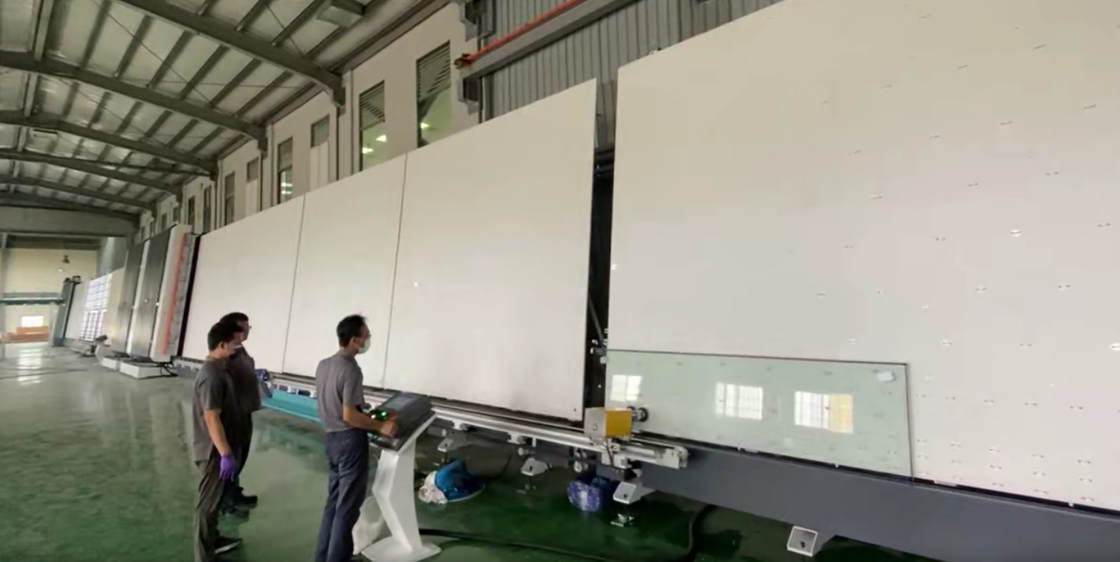

Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm

Automatic nsulating glass production line is used for making insulating glass for buildings, windows and doors, also for ship, refrigerator, freezer and so on. This IG line contains glass washing and glass pressing machine, it can make double / triple glazing glass, for sides step glass. The optional function of filling argon gas is available, the air content is more than 90% at least.

PERFORMANCE

•Germany Siemens PLC control system, touch screen interface
•Automatic identification of coated and Low-E glass
•3 pairs of soft brushes can wash online and offline Low-E glass
•The washing machine adopts SS material and waterproof device
•Water tank with automatic temperature control and water washing system
•Air heating system
•Air Fan automatic start and stop setting
•Noise reduction system
•Online display of washing speed
•Intelligent intermittent work, saving energy
•Adjustable pressing board to keep the plate pressing surface straight
•Connection mode of aviation plug
•Applicable to produce triple IG and shaped IG
Options
•Pre-washing
•Automatically accurate positioning for 3 or 4 side step IG
•Automatic Gas filling can set gas value and display the process of filling online with high gas concentration




• Insulating glass production line has 7 sections


01 transfer section;
02 washing and drying section;

Glass Washing machine material is made of thick high-quality stainless steel plate, strong and durable.
With an automatic glass thickness measuring device, there is no need to set the thickness of the glass separately and automatic cleaning, thus scientifically avoiding the cumbersome manual adjustment when more than 8 mm, the thickest can be cleaned to 30mm.
Brush bearing and bearing seat is an important part of the cleaning machine, high speed, easy to damage. Our company uses thrust aligning ball bearings, which are more durable and stable than other rubber and plastic materials.

Glass Drying Machine

The blade can automatically adjust the opening and distance according to different glass thickness.
Adjusting structure adopts mechanical structure, high stability.
Can be different thickness glass continuous cleaning, no need to manually adjust the air knife. It has better effect on making laminated insulating glass.
03 discharge section;

Glass Inspection section adopts advanced screw adjustment structure design, aluminum frame positioning accuracy is high.
The aluminum alloy guide rail is light and flat, and can be automatically adjusted up and down according to the height of the glass.
The whole adopts hollow design, and the maintenance rear door is added to facilitate the cleaning of stains on the back of glass. (Automatic lift inspection backplane can be customized

04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.


• Storage glass

• Can be connected to sealing machine


Main Features of Vertical Insulating Glass Production Line


• PLC control system, touch screen interface

• Using Siemens servo motors

• Applicable to produce double glass, triple glass

• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%

• High-speed IG processing line, we have obtained patent rights in China in 2019

• Solving the problem of waiting for working on the sealing robot. Installing two spacer frames for two IGU by one workman


Optional functions of Insulating Glass Processing Line

• Shaped glass

• Step glass with optional edges

• Filling argon gas automatically

• Air-floating technology to transfer glass

• To prevent the glass from being contaminated by wheels and leaving traces to improve the quality of IG production


• Pressing and filling 2 pieces of IG units, totally 8 sections

• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system (Optional)

• From transfer part to pressing part, each part is divided

• Suitable for mass production in a factory. Ultra-fast speed
