Product Details:
|
| Name: | Glass Sealant Extruder | Working Air Pressure0.3-0.6MPa: | 0.3-0.6MPa |
|---|---|---|---|
| Sealant Spreading Pressure: | 15-20MPa | Sealant Volume: | 4L/min |
| Air Pressure: | ≥0.8MPa | Overall Dimension: | 1100*950*1630mm |
| Highlight: | Glass Sealant Dispensing Machine,Double Glazing Units Sealant Extruder,Sealant Dispensing Machine 4L/min |
||

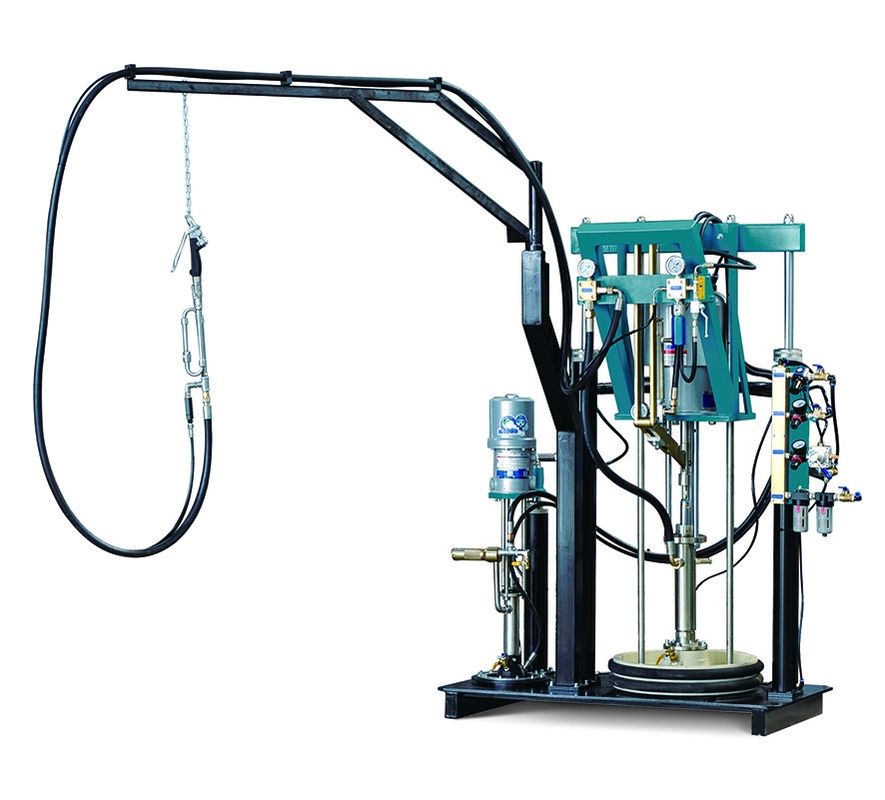

Glass Sealant Sealant Dispensing Machine For Double Glazing Units
Glass silicone extruder machine for double glass units LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Sealant gun, stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Manual Gas Filling Machine LJCJ02N
Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full, it will alarm and stop automatically
• Can set and display the data of gas value
Technical data
| Power supply | 220V 50Hz |
| Total power | 0.1kw |
| Dimension | 620*439*700mm |
Freezer LJSGF01
Main feature
• It is used for storing the gun when manual glue gun stop work during the process of gluing insulating glass
• Storing at low temperature,to prevent sealant solidify
• Apply to polysulfide and silicone
• Can be effectively reduced waste when cleaning the glue
Technical data
| Max refrigerating temperature | 70ºC |
| Min heating temperature | -40ºC |
| Total power | 3.8kw |
| Refrigerating | <150min |
| Overall dimension | 1550*60*1300mm |
Rotated Sealant Spreading Table LJSK02
Main feature
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
Spacer trip cutting machine LJQJ 02
Main feature
• It is used for cutting aluminum strip
• Allowed to cut many spacers, keep high efficiency
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.55kw |
| Dimension | 5000*1050*415mm |
