Product Details:
|
| Name: | LJTB01 Butyl Extruder Machine | Speed: | 0-47m/min |
|---|---|---|---|
| Diameter Of Butyl Cylinder: | 200mm | Air Pressure: | ≥0.6MPa |
| Total Power : | 380V, 5KW, 50HZ | Dimension: | 2600*680*1100mm(L*W*H） |
| Highlight: | 47m/min Hot Melt Extruder Machine,Insulating Glass Hot Melt Extruder Machine,Butyl Extruder Machine |
||
High Quality For Hot Melt Extruder Machine For Making The Seal For The Insulating Glass

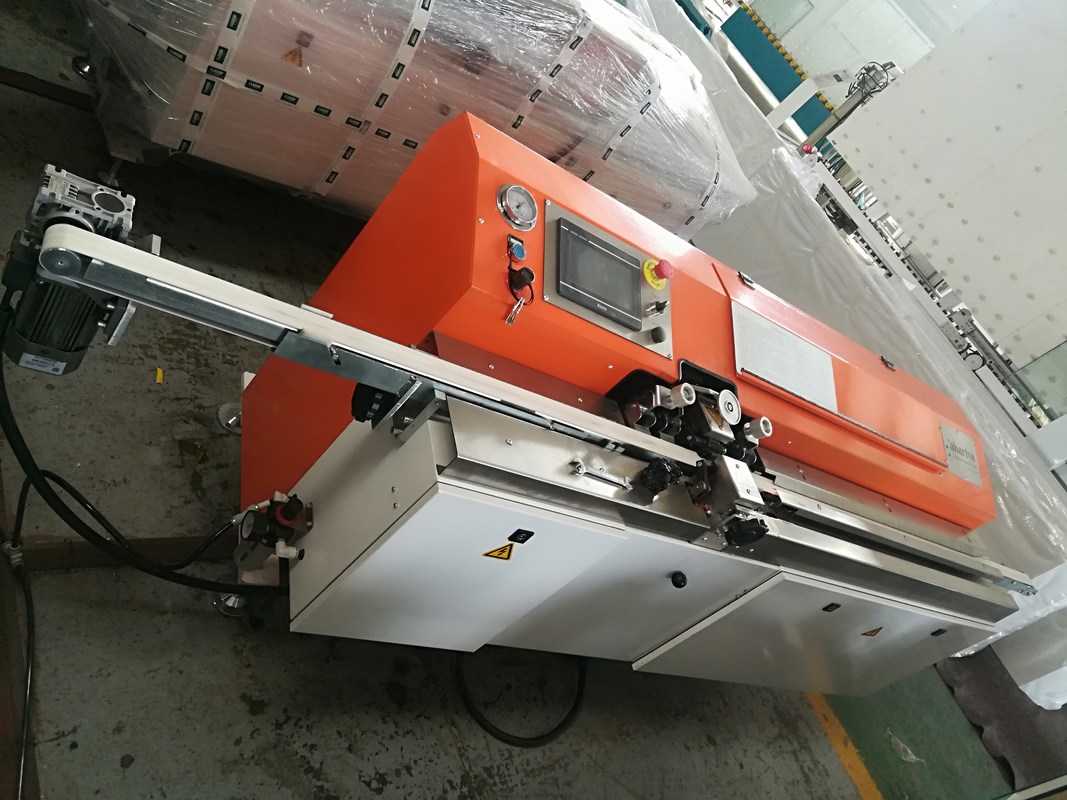

LJTB01 Butyl Extruder Machine
LJTB01 butyl extruder machine is very popular with energy-saving. Its squeezing system
adopts pneumatic and hydraulic supercharging system, which makes the squeezing
pressure more stable. The dispensing cylinder uses vertical rotary support system and
it makes the refill of butyl easier. It can prolong the life of squeezing system and set the
heating time in 24 hours with electricity and air pressure. The distance of squeezing
head can be adjusted automatically according to different aluminum spacer. The LJTB01
butyl extruder machine has reached the worldwide technology with the characteristic of
complete function and stable working mode.
² Technical Data of china pneumatic
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600*680*1100mm(L*W*H) |
| Weight | 650kg |
² Main components of door and window
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
² Other features of of small extruder machine
1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.
